OLC Series Microscope Objective Revolver

OLC Series Microscope Objective Revolver - Image 2

OLC Series Microscope Objective Revolver

Name: OLC Series Microscope Objective Revolver
SKU: 5460
Availability: InStock

Price range: $17.40 through $261.00

Model

Clear

SKU: N/A Category: Optical Microscopic Imaging

Product Description

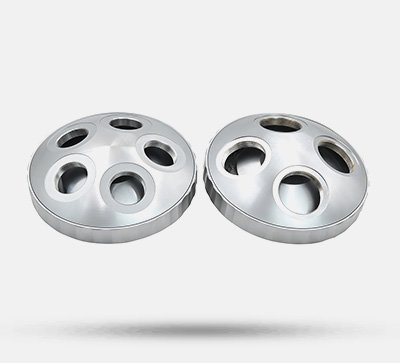

Microscope objective turret with multiple objective ports
RMS (0.800”-36) internal thread with 5 ports
M26*0.705mm internal thread with 4 ports
Precision braking mechanism for objective positioning
Compatible with cage systems or lens sleeves when paired with connecting components

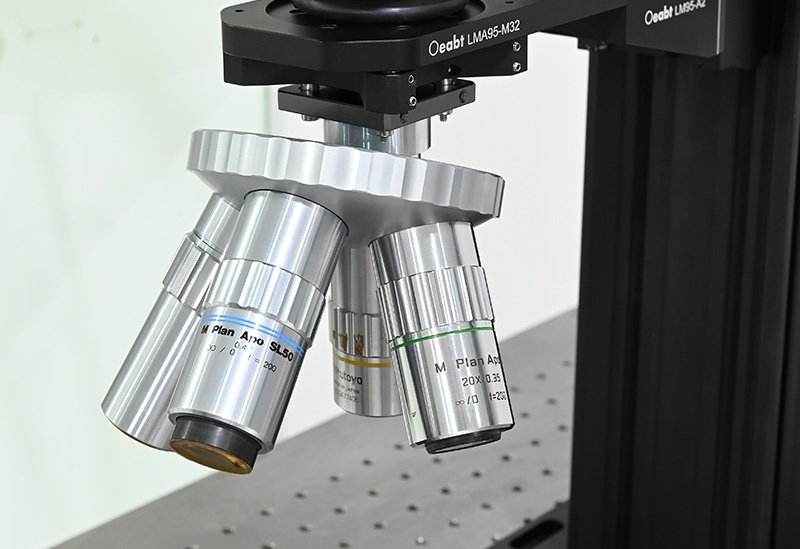

The microscope objective revolver enables simultaneous installation of multiple objectives with different magnifications, allowing users to quickly switch between objectives by rotating the turret.

Microscope Objective Revolver

表格

Specification	OLC4-M26	OLC5-RMS
Port Thread	M26*0.705mm	RMS (0.800”-36)
Number of Ports	4	5
Weight	647.5g	671.1g
Dimension	Ø98.3*51.1mm	Ø98.3*51.1mm
Dovetail Type	Ø27.6mm female dovetail groove, α=60°; compatible with Ø25mm male dovetail	Ø27.6mm female dovetail groove, α=60°; compatible with Ø25mm male dovetail
Screw Hole Type	4 x M3	4 x M3
Material	Brass	Brass

Objective Turret Connector

表格

Specification	OTAP-C30	OTAP-SM1
Dimension	46.046.012.5mm	Ø35.0*23mm
Mounting Method	4 x Ø6.02mm, compatible with PCM cage rods	SM1 (1.035”-40) external thread
Weight	37.8g	28.3g
Dovetail Type	Ø25mm male dovetail head, α=60°; compatible with Ø27.6mm female dovetail groove	Ø25mm male dovetail head, α=60°; compatible with Ø27.6mm female dovetail groove
Clear Aperture	Ø18.5mm	Ø18.5mm
Material	7075 Aluminum Alloy	7075 Aluminum Alloy

Technical Description

(1) The microscope objective revolver can be fitted with multiple objectives of different magnifications (e.g., 4X, 10X, 40X, 100X) at the same time. Users can rapidly switch objectives by rotating the turret, which is equipped with a steel insert positioning device. This ensures the repetitive positioning of the objective optical path with a bidirectional repeatability of ±3µm, preventing optical path offset or misalignment.

(2) The OLC5-RMS is equipped with 5 RMS (0.800”-36) threaded ports, while the OLC4-M26 features 4 M26*0.705mm threaded ports. Through the dovetail mounting interface, the revolver can be integrated into custom imaging systems constructed with lens sleeves or cage systems when used with appropriate adapters.
