MDFM-C Quick-Release Fluorescence Cube Module

Product Description

• Build your own episcopic illumination optical path.
• Magnetic door compatible with MDFM-MF2 and Olympus filter cubes.
• Stackable design with Ø51 mm male and female dovetails on top and bottom.
• Cube housing compatible with SM1 lens tubes and 30 mm cage systems.
• Pre-assembled kit: MDFM-C Microscopy Fluorescence Cube Module (includes MDFM-MF2).

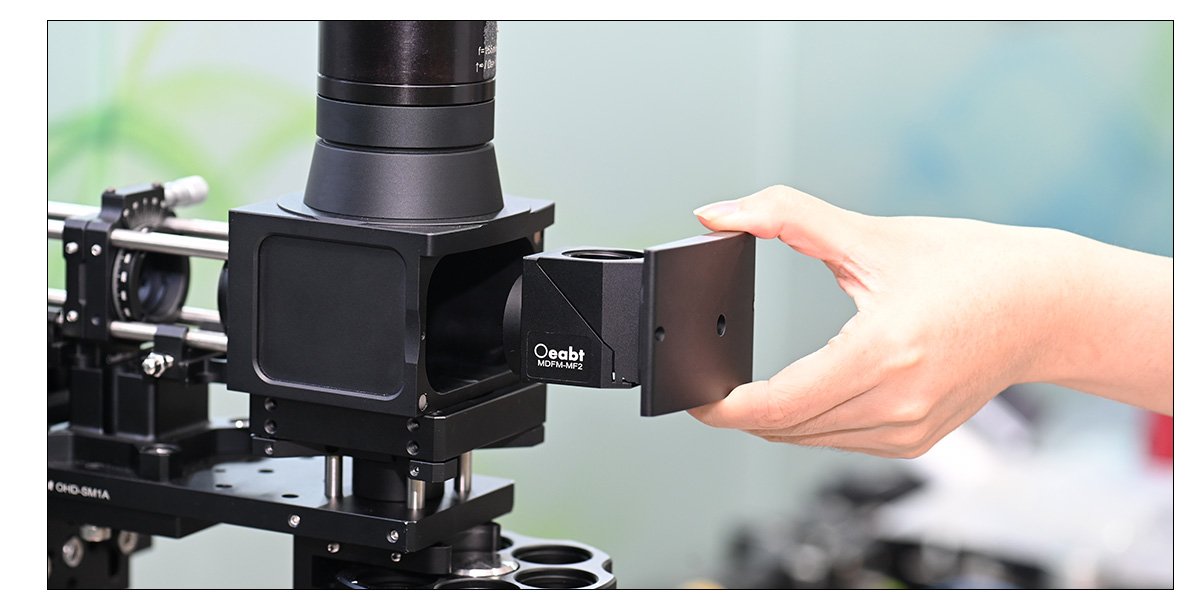

The MDFM-C microscopy fluorescence cube holds one filter cube inside. Male and female dovetails on the top and bottom mate with each other to enable stacking. The rear features SM1 threads and 440 tapped holes on a 30 mm grid.

Specifications

Quick-Release Microscopy Fluorescence Cube Housing

表格

Item	Details
Model	MDFM-C1
Dimensions	78.3 × 80.0 × 63.4 mm
Dovetail Type	Male: Ø51 mm, α=60°; Female: Ø53.2 mm, α=60°
Thread Type	SM1 (1.035”40) internal thread; 4× 440, 30 mm spacing
Weight	367.3 g
Material	7075 aluminum alloy

Microscopy Fluorescence Cube Insert

表格

Item	Details
Model	MDFM-MF2
Dimensions	48.3 × 33.0 × 39.0 mm
Mountable Optics	Excitation & emission filters: Ø25.4 mm, thickness ≤5 mmDichroic beamsplitter: max. 25.2 × 36.0 × 1.2 mm
Thread Type	SM1 (1.035”40) internal thread
Weight	51.6 g
Material	7075 aluminum alloy

Technical Notes

The MDFM-C microscopy fluorescence cube holds one filter cube. Top and bottom dovetails allow stacking. The rear has SM1 threads and 440 tapped holes on 30 mm centers, supporting custom optical paths with SM1 lens tubes and 30 mm cage systems for episcopic illumination microscopy.



The top and bottom dovetails match MCPD2 and MCPD2B. Mounting the MCPD2B dovetail adapter to the bottom connects 30 mm and 60 mm cage systems to the MDFM-C module.

Warning: Tighten optics gently; do not overtighten, as this may crack the optics!



Note: The insert may show visible machining marks; this is normal for new, unused units.

Pre-assembled set: MDFM-C Microscopy Fluorescence Cube Module (includes MDFM-MF2)

Assembly

Application Examples

Engineering Drawings

MDFM-F2 Engineering Drawing

MDFM-C1 Engineering Drawing
