SWIR Scientific Camera

Product Description

• No returns or refundsunless due to product quality issues.
• Equipped with SONY IMX991/990 SenSWIR sensors.
• Optional resolutions: 0.34 MP or 1.34 MP.
• Spectral response: 400–1700 nm, supports visible and short-wave infrared (SWIR) imaging.
• Supports external trigger and continuous exposure modes with global shutter.
• SM1 (1.035″-40) thread with adapter for standard C-Mount (1.000″-32).
• 1/4″-20 (imperial) and M4 (metric) mounting holes for post mounting.

The OsCam Vision® series SWIR scientific camera features the SONY IMX991/990 SenSWIR sensor, with 0.34 MP and 1.34 MP options. It supports external trigger and continuous exposure modes and uses a global shutter.



Item	MUS034M-G-SWIR	MUS134M-G-SWIR
Resolution	656 (H) × 520 (V)	1296 (H) × 1032 (V)
Sensor	Sony IMX991	Sony IMX990
Sensor Format	1/4″	1/2″
Max Full-Frame Rate	137 fps (12-bit)	70 fps (12-bit)
Interface	USB 3.1 Gen 1 Micro-B	USB 3.1 Gen 1 Micro-B
Sensor Type	InGaAs	InGaAs
Shutter Type	Global Exposure	Global Exposure
Pixel Size	5 μm × 5 μm	5 μm × 5 μm
Lens Mount	SM1 (1.035″-40 female thread) with C-Mount adapter	SM1 (1.035″-40 female thread) with C-Mount adapter
Spectral Response	400 nm – 1700 nm	400 nm – 1700 nm
ADC	12 Bit	12 Bit
Buffer (RAM)	512 MB	512 MB
Bit Depth	8-bit, 12-bit	8-bit, 12-bit
Mono Pixel Formats	Mono8, Mono12	Mono8, Mono12
GPIOs	4-channel TTL I/Os	4-channel TTL I/Os
Operating Temperature	0 °C to +60 °C	0 °C to +60 °C
Power Supply (DC)	5V via USB 3.0	5V via USB 3.0

Curves

(Relative Quantum Efficiency: Data may vary by conditions and environment.)

Technical Notes



The OsCam Vision® series scientific cameras offer color, monochrome, and NIR-enhanced sensors with resolutions from 1.3 MP to 12 MP. They support external trigger and continuous exposure modes with global or high-speed rolling shutters, delivering sharp, detailed images with high color fidelity. A fanless cooling system uses passive heat dissipation via fins to avoid vibration-induced blur, control temperature rise, and suppress dark current and image noise.

OsCam Vision® software supports Windows 7 through Windows 11, providing advanced scientific features including image capture & annotation, pixel analysis, calibration, and measurement. Click to download Oscam (V1.0.4 Beta) Setup installer and OsCam Scientific Camera Software User Manual.

The camera uses an SM1 threaded interface (1.035″-40) compatible with Oeabt optomechanical components and can connect to lenses via a C-mount adapter. The front has four 4-40 holes for 30 mm and 60 mm cage systems. Each side of the housing has two 1/4″-20 and two M4 holes for stainless steel posts. These versatile mounting options make it ideal for custom imaging setups and integration with commercial microscopes.

A high-speed USB 3.1 Gen 1 interface provides stable 3.2 Gbps throughput, multiple times faster than Gigabit Ethernet (1 Gbps). A 3meter dedicated fixed USB 3.0 cable is included.

Assembly

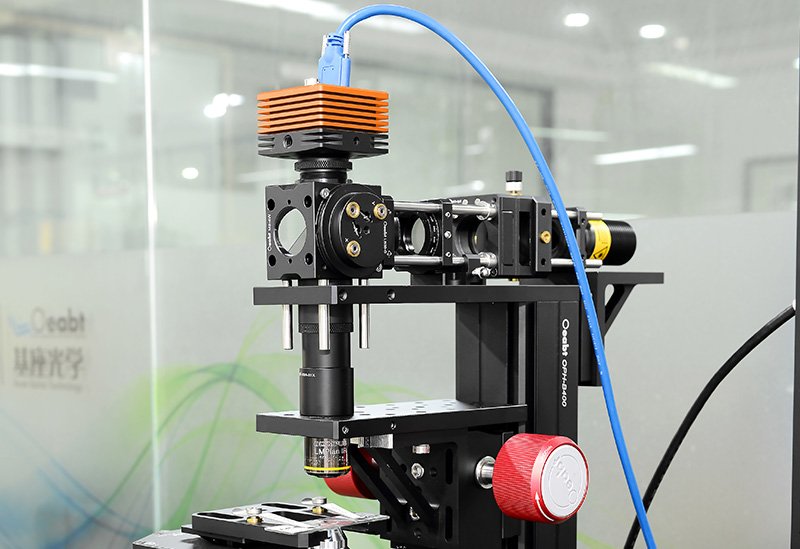

Application Examples

Engineering Drawings

Oscam Engineering Drawing
