OMC Series Microscope Base

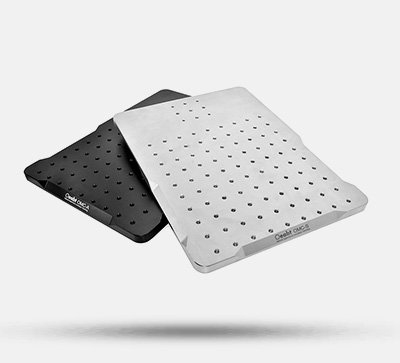

Product Description

• Designed as a mounting plate for heavyduty microscope stands
• Panel size: 260350 mm; threaded hole array pitch: 2525 mm
• Four countersunk holes on the bottom surface allow reverse upward mounting of components
• Solid construction; available in aluminum alloy or stainless steel

The OMC series breadboards are specially designed for microscope system stand setups. These solid aluminum/stainless steel breadboards provide a convenient and costeffective platform for prototyping optical setups, conducting experiments, and mounting small subsystems.



Model	OMC-A	OMC-S
Dimensions	260.0*350.0*14 mm	260.0*350.0*14 mm
Thread Type	99 M6 threaded holes, 4 Ø4.5 mm countersunk holes	99 M6 threaded holes, 4 Ø4.5 mm countersunk holes
Weight	3.25 kg	9.40 kg
Material	7075 Aluminum Alloy	304 Stainless Steel

Technical Specifications



The OMC series breadboards are specially designed for microscope system stand setups. These solid aluminum/stainless steel breadboards provide a convenient and costeffective platform for prototyping optical setups, conducting experiments, and mounting small subsystems.

The front end of the top plate integrates a threaded hole array for direct mounting of heavyduty stands, including 4 Ø4.5 mm countersunk holes and 5 M6 threaded holes. In addition, the front end features M6 threaded holes with a 25 mm pitch compatible with most optomechanical components.

The bottom plate is equipped with 4 additional M6 threaded holes for mounting rubber feet to elevate the base. Four rubber feet are included (style shipped randomly).

Available in different materials:

• 7075 Aluminum Alloy
• 304 Stainless Steel



Assembly

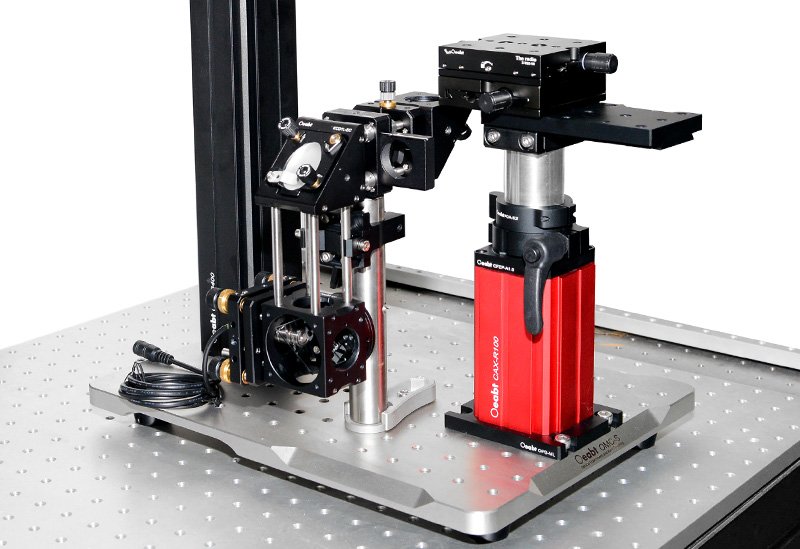

Application Examples

Engineering Drawings

OMC series Engineering Drawining
