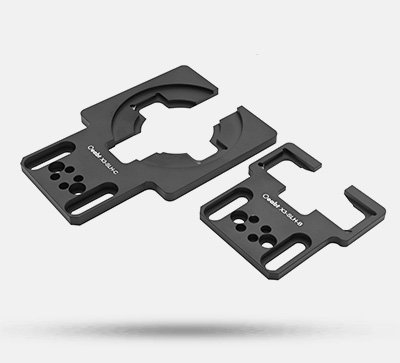

X3-SLH Series Microscope Slide Holder

Product Description

• Clamp-type pressing fixation, compatible with standard microscope slides and petri dishes
• Prevents sliding or displacement during experiments
• The holder can accommodate slides with a maximum size of 25.4*76.2mm
• The central hole of X3-SLH-C is additionally compatible with Ø60mm and Ø90mm petri dishes
• Compatible with the installation of Nano series flexible translation stages
• Slotted holes for easy integration into various translation stages or opto-mechanical components

The microscope slide holder allows direct mounting of slides and petri dishes on motorized translation stages, and can be integrated into custom microscope setups such as optical tweezers for use.

Specifications

Technical Description

(1) The microscope slide holder enables direct installation of microscope slides and petri dishes on motorized translation stages, and is suitable for integration into custom microscope devices such as optical tweezers. Adopting a clamp-type pressing design, the holder secures slides with two small metal press plates, featuring simple operation, stability and reliability.

(2) Both holder models support slides with a size of 2575mm (maximum 25.4*76.2mm). In addition, the central hole of the X3-SLH-C holder can accommodate Ø60mm and Ø90mm petri dishes, making it suitable for various experimental scenarios such as cell culture and sample observation.

(3) The two sets of mounting hole design offer high flexibility and compatibility: one set includes 4 countersunk M3 holes, compatible with Nano series 3-axis translation stages; the other set features a slotted M6 design, which allows easy installation of various optical components or extended translation stage surfaces, meeting the needs of diverse experimental configurations.

Assembly

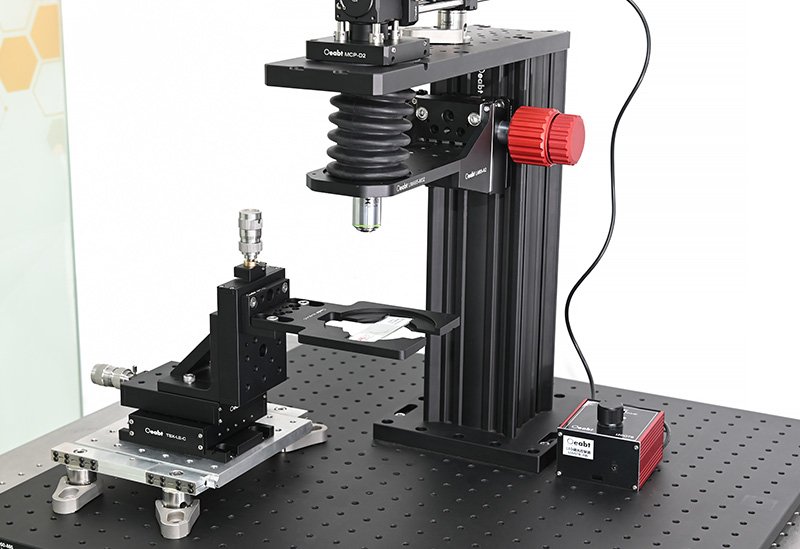

Application Examples

Engineering Drawings

X3-SLH-C Engineering Drawing

X3-SLH-B Engineering Drawing
