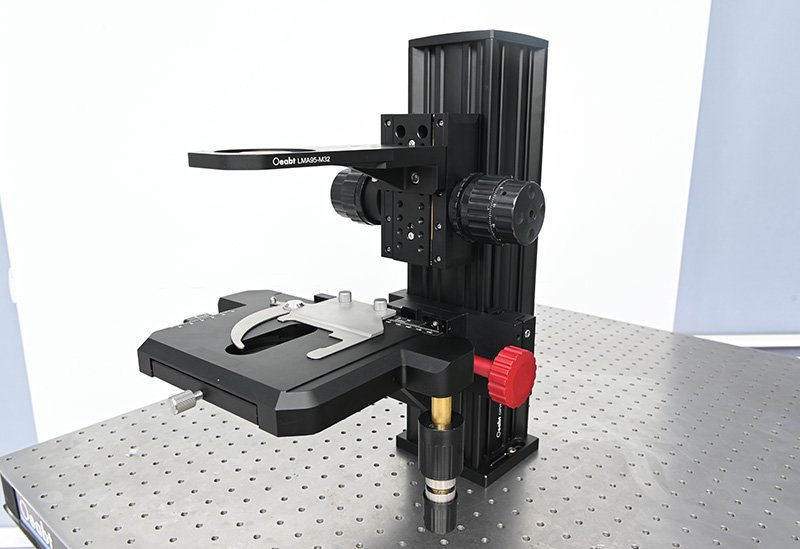

Manual Stage Microscopy Base Platform

Product Description

• Mechanically manually driven with bidirectional steel wire drive and ball bearings
• High-precision ball bearing drive for extremely smooth movement without jamming
• XY-axis movement range: 78mm (X-axis) * 54mm (Y-axis)
• Stage with a graduated scale of 1mm division and a vernier scale of 100μm
• S/N0009 series with built-in detachable sample holder, compatible with standard glass slides (thickness approx. 0.8-1.2mm)
• S/N0010 series with detachable stage plate, stage size: 240*170mm
• Right-hand and left-hand operation options available

The stage adopts ball bearing drive, with a vernier scale of 100μm precision on the edge of each axis for easy sample positioning.



Manual Microscopy Stage
Platform Size	135*85mm
Movement Range	X-axis: 78mm, Y-axis: 54mm; Total Travel: 78*54mm
Scale Division	1mm division
Vernier Scale	100μm
Maximum Load	2kg
Control Method	Left/right-hand operation, coaxial knobs for X/Y axes (stacked up and down)
Dovetail Type	Female dovetail groove: Ø108mm, α=60°
Material	7075 Aluminum Alloy
Weight	1419.5g



Serial Number	Built-in Accessory	Control Method
S/N0009-1	Sample Holder	Right-hand operation
S/N0009-2	—	Left-hand operation
S/N0010-1	Large-size Stage Plate	Right-hand operation
S/N0010-2	—	Left-hand operation



Manual Microscopy Base Platform	Guide Rail Height	Stage Configuration
MCMP-S-350V	350mm	Suitable for standard glass slide observation, with glass slide holder included
MCMP-S-400V	400mm	—
MCMP-S-500V	500mm	—
MCMP-S-600V	600mm	—
MCMP-T-350V	350mm	Large-size stage, compatible with larger samples such as petri dishes and multi-well plates
MCMP-T-400V	400mm	—
MCMP-T-500V	500mm	—
MCMP-T-600V	600mm	—



Focusing Unit	Model	Specifications
	MCT-LMP2	Lifting Travel	40mm, Resolution 2μm
		Focusing Mode	Coarse and fine focusing
		Maximum Load	10kg
	OPH95-LM1	Lifting Travel	23mm
		Focusing Mode	Coarse focusing
		Maximum Load	2kg
Stage		Movement Range	X-axis: 78mm, Y-axis: 54mm
		Scale Division	1mm division, 100μm vernier scale
		Maximum Load	2kg
		Control Method	Left/right-hand operation, coaxial knobs for X/Y axes (stacked up and down)
		S/N0009	Accessory – Sample Holder
		S/N0010	Accessory – Large-size Stage Plate
Guide Rail Arm Axis		Dimension	196.5mm
Objective Mount		Specification	RMS (0.8”-36)
Component List			S/N0009 or S/N0010 Stage, OPH95-V Series 95mm Guide Rail, MCT-LMP2 Focusing Handwheel, LMP2-A Right-Angle Bracket, LMA95-M32 Mounting Arm, ST-M32-RMS Adapter, OPH95-LM1 Focusing Slide, LMA95-Olympus Mounting Arm, OOP95-M Slider

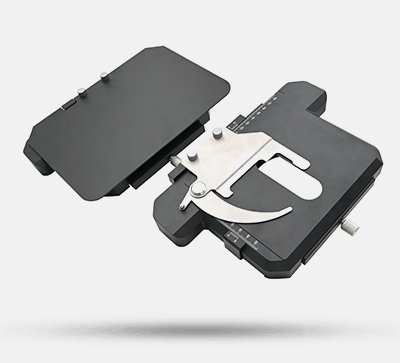

Accessory – Sample Holder
Serial Number	S/N0011
Specifications	128.8128.01.2mm
Clamping Size	76*26mm, Thickness 0.8-1.2mm
Material	304 Stainless Steel
Weight	136.4g



Large-size Stage Plate
Serial Number	S/N0012
Specifications	240.0170.02.0mm
Stage Size	240.0*170.0mm
Material	7075 Aluminum Alloy
Weight	213.1g

Technical Description

(1) The stage adopts ball bearing drive, enabling 78mm movement on the X-axis and 54mm movement on the Y-axis. A vernier scale with 100μm precision is provided on the edge of each axis for convenient sample positioning. The black knobs under the translation stage can independently adjust the displacement of the X and Y axes, and the stainless steel knobs adjust the damping tightness. Important Note: The damping adjustment knobs cannot be used as locking devices! Do not attempt to tighten the damping to fix the stage position, as this will damage the transmission mechanism!

(2) Scale Reading: Total travel of 78mm (X-axis) * 54mm (Y-axis), with a 1mm scale division and a 100μm vernier scale.



(3) S/N0009 is suitable for standard glass slide observation and comes with a glass slide holder; S/N0010 is equipped with a large-size stage, compatible with larger samples such as petri dishes and multi-well plates.

Assembly

Application Examples

Engineering Drawing Download

S N0012 Engineering Drawing

S N0011 Engineering Drawing

S N0010-1 Engineering Drawing

S N0009-1 Engineering Drawing

MCMP-V Engineering Drawing
