MCSM2-D1.5 Camera Port Adapter

Product Description

• Extend Oeabt series sleeves and cage systems to versatile microscopy imaging setups.
• Ø1.5inch male dovetail for easy mechanical mounting and optical port alignment.
• Connect custom optical systems to microscope tubes and camera ports from other manufacturers.
• Compatible with SM1, SM2 and 30 mm cage systems.

The MCSM2D1.5 camera port adapter is used to connect custom optical systems or detectors to microscope tubes and camera ports from other microscopy manufacturers, such as the camera ports on Thorlabs Cerna and Nikon Eclipse upright microscopes.

Specifications



Model	MCSM2D1.5
Dimensions	Ø55.9 × 16.2 mm, inner bore Ø37 mm
Dovetail Type	Ø1.5inch, α=90°
Thread Type	SM1 (1.035”40) internal thread; SM2 (2.035”40) external thread; 4× 440 (30 × 30 mm spacing)
Weight	36.3 g
Material	7075 aluminum alloy

Technical Notes



The MCSM2-D1.5 camera port adapter connects custom optical systems or detectors to microscope tubes and camera ports from other manufacturers, such as Thorlabs Cerna and Nikon Eclipse upright microscopes. A camera can be attached to the adapter via an externally threaded C-mount or SM1 connector for integration into the microscope system. The adapter mounts to the optical port using the Ø1.5-inch male dovetail.



It also features SM1 internal thread, SM2 external thread, and four 4-40 tapped holes on a 30 mm grid for cage mounting. It integrates with SM1, SM2 lens tubes and 30 mm cage systems to enable mating between optical ports and threaded ports.



Assembly

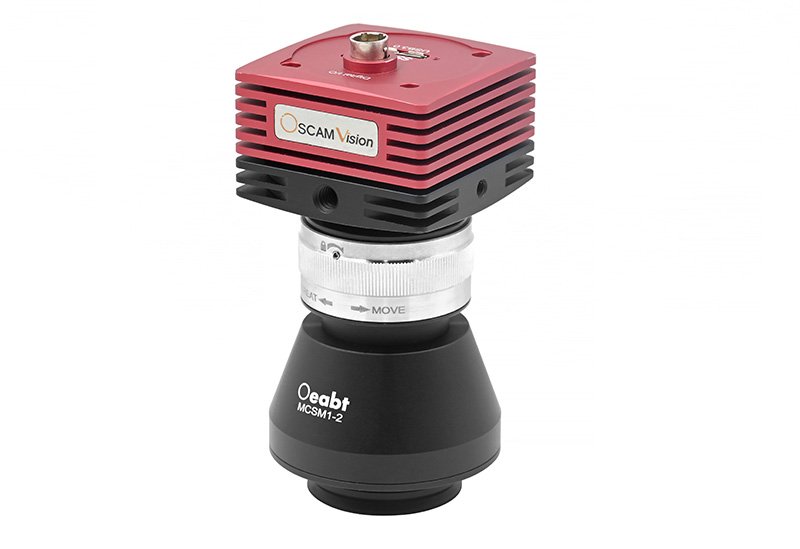

Application Examples

Engineering Drawings

MCSM2-D1.5 Engineering Drawing
