OPH95 Series 95mm Heavy-Duty Rail Carriers

Product Description

• Outer wings form identical dovetail mounting surfaces on all four sides
• Four M6 threaded holes on both sides for installation
• Rail lengths available from 200mm to 500mm
• Ø55mm clear aperture runs through the rail

The OPH95 series is extruded from aluminum in various lengths and features linear mounting surfaces on each side of the rail. Its precision-machined structure enables large-scale optical components to move along the rail while maintaining excellent mechanical stability. Pre-assembled kits are available for purchase.

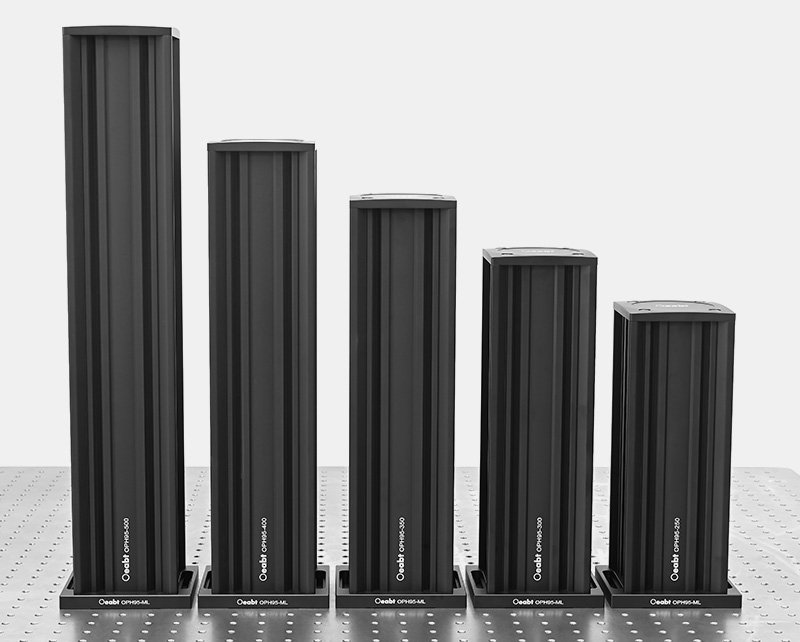

95mm Heavy-Duty Rails



Model	Specification	Weight	Central Clear Aperture	Threaded Hole Type	Material
OPH95-250	9595250mm	1612.9g	Ø55mm	4 x M6 at each end	6063 Aluminum Alloy
OPH95-300	9595300mm	1938.7g	Ø55mm	4 x M6 at each end	6063 Aluminum Alloy
OPH95-350	9595350mm	2268.3g	Ø55mm	4 x M6 at each end	6063 Aluminum Alloy
OPH95-400	9595400mm	2588.2g	Ø55mm	4 x M6 at each end	6063 Aluminum Alloy
OPH95-500	9595500mm	3240.0g	Ø55mm	4 x M6 at each end	6063 Aluminum Alloy
OPH95-600	9595600mm	3900.0g	Ø55mm	4 x M6 at each end	6063 Aluminum Alloy

Rail Length Tolerance



Rail Length	Tolerance Value
200-250mm	≤0.1mm
300-400mm	≤0.2mm
500-600mm	≤0.35mm
750-1000mm	≤0.5mm

Technical Description

(1) With a mounting surface width of 95mm, the rails in this series provide enhanced support for constructing large-scale structures, three-dimensional load-bearing structures and expandable assemblies. Extruded from aluminum in different lengths, each side of the rail is finished with a linear mounting surface. The precision-machined structure allows large optical components to slide along the rail while retaining superior mechanical stability. Pre-assembled kits are offered for sale.

(2) Rails are available in lengths ranging from 200mm to 500mm, with four effective dovetail grooves formed on each end face. They are compatible with the OOP95-M series rail carriage platforms, whose mounting surfaces are equipped with an array of M6 threaded holes, ensuring excellent compatibility for the installation of rails and opto-mechanical components.

(3) Snap-in rail carriages can be snapped on or removed at any position along the side of the rail and slide freely along it. A variety of mounting surface widths from 25mm to 100mm are available, with positions secured by tightening the side-mounted M6 locking screws. In contrast, drop-in carriages can only be inserted and removed from the rail ends, and their positions are fixed by four M6 locking screws on the panel.

(4) The OPS95-ML base plate enables vertical mounting of 95mm rails onto optical tables or base rails. Countersunk slots facilitate precise installation positioning and the plate is compatible with both imperial and metric mounting standards. When paired with OOP95-M carriages, it allows horizontal mounting of rails onto optical tables or breadboards.

(5) End caps are used on the ends of 95mm rails for a neat, integrated surface finish. The end caps are installed by aligning them with the threaded holes at the rail corners and fastening with four M6 socket head cap screws.

Assembly

Application Examples

Engineering Drawings

OPS95-ML2 Engineering Drawing

OPS95-ML Engineering Drawing

OPS95-M0 Engineering Drawing

OPH95 Engineering Drawing

OOP95-M75 Engineering Drawing

OOP95-M Engineering Drawing
