Custom Microscopy Accessories

Name: Custom Microscopy Accessories
SKU: 5796
Availability: InStock

Price range: $16.00 through $79.00

Model

Clear

SKU: N/A Category: Optical Microscopic Imaging

Description
Additional information

Product Description

Adapter mounting arm with male dovetail head: Ø106.9mm, α=60°; suitable for any Olympus U-SV series XY translation stage; can be directly mounted on OPH95-LM series guide rail lifting slide kits for use.

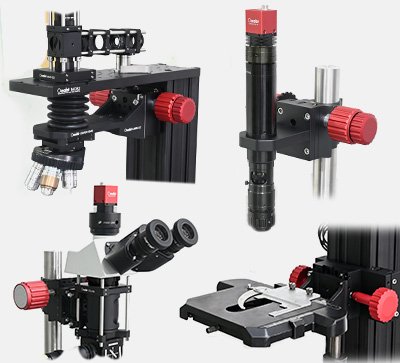

These custom microscope system accessories extend the versatility of Oeabt series sleeves and cage products to microscopic imaging systems.

Lifting Slide Mounting Arm

Specification	LMA95-Olympus
Dimension	204.2×110.0×19.9mm
Dovetail Type	Male: Ø106.9mm, α=60°
Clear Aperture	Ø67.0mm
Arm Shaft Length	6×countersunk M4 holes, 22.9mm spacing
Weight	346.9g

Objective Turret Adapter Plate

Specification	OTAP1	OTAP2
Dimension	51.5×40×9mm	51.0×46.0×12mm
Dovetail Type	Female groove: 31.2×37.8mm, α=50°	Female groove: 40.8×48.5mm, α=50°
Cage Rod Mount	4×Ø6.02mm holes, 30mm spacing	4×4-40 holes, 30mm spacing
Weight	23.3g	39.1g
Thread Type	SM1 (1.035”-40) internal thread	SM1 (1.035”-40) internal thread
Material	7075 Aluminum Alloy	7075 Aluminum Alloy

Trinocular Head Adapter

Specification	TAD2	TASM2
Dimension	Ø80.0×15.3mm	Ø56.0×20.3mm
Dovetail Type	Male: Ø51mm, α=60°	/
Thread Type	SM1 (1.035”-40) internal thread	SM2 (2.035”-40) external thread
Weight	92.5g	33.1g
Eyepiece Dovetail Interface	Female groove: Ø39mm, α=50°	Female groove: Ø39mm, α=50°
Material	7075 Aluminum Alloy	7075 Aluminum Alloy

Camera Lens Mounting Arm

Specification	CLMA40-A	CLMA40-B	CLMA50
Dimension	100.0×63.6×76.2mm	130.0×63.6×76.2mm	143.6×63.6×76.2mm
Mounting Aperture	Ø39.8mm	Ø39.8mm	Ø50mm
Arm Shaft Length	75mm	105mm	113.6mm
Weight	293.5g	371.1g	435.2g
Thread Type	6×countersunk M6 holes	6×countersunk M6 holes	6×countersunk M6 holes
Material	7075 Aluminum Alloy	7075 Aluminum Alloy	7075 Aluminum Alloy

Corrugated Light Shielding Tube

Specification	CBH1	CBH2
Dimension	Ø39×85mm	Ø62×72mm
Clear Aperture	Ø22mm	Ø50mm
Weight	34.6g	46.1g
Material	PTFE (Teflon)	PTFE (Teflon)

Technical Description

(1) The LMA95-Olympus lifting slide mounting arm is assembled on 95mm guide rail lifting focus slides for use, enabling the compatibility of Olympus U-SV series translation stages and sample holders with the microscope main body. The mounting arm is aligned at the optical path 196.5mm from the edge of the main body guide rail.

Model	Dovetail Type	Compatibility
LMA95-Olympus	Male: Ø106.9mm, α=60°	Olympus, Thorlabs Cerna

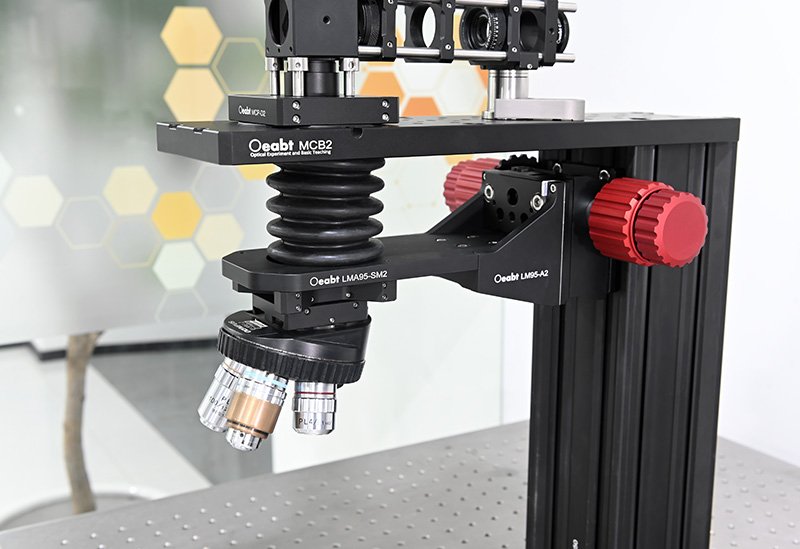

(2) Objective turret adapters are mainly used for connecting and fixing the objective turret to self-constructed microscope main bodies, and are compatible with objective turrets produced by Olympus (e.g., U-6RE, U-5RE-2) or other manufacturers. SM1 threads and 4-40 screw holes for mounting cage rods are drilled to enable extended installation of Oeabt series sleeves and cage products.

Model	Dovetail Type	Compatibility
OTAP1	Female groove: 31.2×37.8mm, α=60°	Olympus, some manufacturers
OTAP2	Female groove: 40.8×48.5mm, α=60°	/

(3) Trinocular head adapters make self-constructed optical systems compatible with trinocular heads produced by Sunny or other manufacturers, expanding the application range of microscope systems. By using SM series sleeves and cage components, the trinocular head adapters allow users to add or replace different optical components on the basis of the original microscope, thus realizing modular expansion of the system.

Model	Eyepiece Dovetail Interface	Dovetail/Thread Type	Compatibility
TAD2	Female groove: Ø39mm, α=50°	Male: Ø51mm, α=60°; SM1 internal thread	Sunny, some manufacturers
TASM2	/	SM2 external thread	/

(4) The adapter plate design at the rear end of the camera lens mounting arm allows camera lenses to be mounted on Ø1.5-inch connecting rods or 66mm/95mm guide rail main bodies, enabling camera lenses to adapt to the configuration of various custom microscope systems. Two types of mounting apertures and multiple arm shaft lengths are available to meet the diverse needs of users and the compatibility of existing equipment.

Model	Mounting Aperture	Arm Shaft Length
CLMA40-A	Ø39.8mm	75mm
CLMA40-B	Ø39.8mm	105mm
CLMA50	Ø50.0mm	113.6mm

(5) Corrugated tubes are used to seal the gaps between the optical paths of Ø1-inch/Ø2-inch lens sleeve systems or microscope systems, forming a light-tight optical path. The excellent performance of PTFE ensures that the clear aperture of the lens sleeve system will not be reduced when the corrugated tubes are compressed or stretched.
