MCSM Series Microscopy Port Adapters

Product Description

• Extend Oeabt series sleeves and cage systems to versatile microscopy imaging setups.
• Dovetail design enables easy mechanical mounting and optical port alignment.
• Compatible with lens tubes and 30 mm / 60 mm cage systems.
• MCSM1-2: External SM1 thread and internal SM2 thread.
• MCSM2-D2: Ø2-inch male dovetail, external SM2 thread, and internal M38×0.5 thread.

MCSM series dovetail adapters integrate microscopy stages with SM1, SM2, 30 mm and 60 mm cage systems, enabling optical-to-threaded port mating. They are ideal for custom microscopy setups including wide-field observation, epi-illumination, trans-illumination, and condenser mounting.

Specifications

Microscopy Port Dovetail Adapters



Item	MCSM1-2	MCSM2-D2
Taper Dimensions	D56.0-d39.9-h22.1	D63.5-d55.9-h19.5
Dovetail Type	None	Ø2-inch, α=60°
Thread Type	One end: external SM1 (1.035”-40); Other end: internal SM2 (2.035”-40)	External SM2 (2.035”-40)
Weight	51.7 g	112.4 g
Material	7075 aluminum alloy	7075 aluminum alloy

Microscope Tube Sleeve



Item	MLES-3
Body Dimensions	Ø55.9 × 77 mm
Thread Type	Internal & external SM2 (2.035”-40)
Weight	291.4 g
Material	7075 aluminum alloy

Relay Tube Lenses



Item	TTF180	TTF200
Housing Dimensions	Ø39.3 × 16.6 mm	Ø39.3 × 16.6 mm
Design Wavelength	400–700 nm	400–700 nm
Thread Type	External M38×0.5 & external SM1	External M38×0.5 & external SM1
Focal Length	180 mm ±1%	200 mm ±1%
Working Distance	180.197 mm	197.5 mm

Microscopy Extension Sleeve



Item	MLES40-D2
Body Dimensions	Ø71.0 × 50.7 mm
Port Thread	SM2 (2.035”-40), thread depth 28 mm
Port Dovetail	Male: Ø2-inch, α=60°
Weight	90.0 g
Material	7075 aluminum alloy



Technical Notes



MCSM series dovetail adapters integrate microscopy platforms with SM1, SM2, 30 mm and 60 mm cage systems, enabling optical-to-threaded port mating for custom imaging configurations, including wide-field observation, epi-illumination, trans-illumination, and condenser mechanics.

MCSM1-2 has external SM1 thread on one end and internal SM2 thread on the other, compatible with our lens tube series. MCSM2-D2 has external SM2 thread and internal M38×0.5 thread on one end, and a Ø2-inch male dovetail on the other, for easy mating between microscopy optical ports and threaded lens tubes.

It can be used with the MCP-D2B microscopy port dovetail adapter plate for male-female dovetail port mating. The adapter plate features male/female dovetails and 60-mm-spaced cage rod holes, compatible with 60 mm cage systems.

Relay tube lenses correct aberrations between the sample and objective and improve image quality. With external M38×0.5 and SM1 threads, they mount directly inside the MCSM2-D2 dovetail adapter.

The MLES-3 tube sleeve has internal/external SM2 (2.035”-40) threads on both ends and an inner bore of Ø37 mm. (No internal lens; no magnification.) It positions the camera’s CCD chip at the image plane when used with trinocular or dual-camera ports. An SM-Z4 telescoping sleeve can be added to compensate for mechanical tolerances or alignment issues.

The MLES40D2 extension sleeve has internal SM2 (2.035”-40) thread on one end and a Ø2-inch male dovetail on the other, enabling mounting between SM threaded tubes and dovetail adapter plates.

Assembly

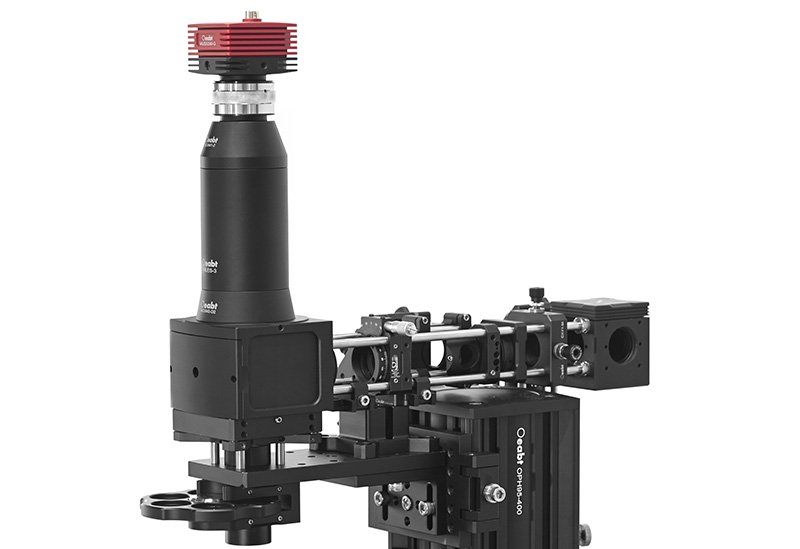

Application Examples

Engineering Drawings

TTF200 Engineering Drawing

TTF180 Engineering Drawing

MLES40-D2 Engineering Drawing

MLES-3 Engineering Drawing

MCSM2-D2 Engineering Drawing

MCSM1-2 Engineering Drawing
