APT-90 Right-Angle Adapter

Name: APT-90 Right-Angle Adapter
SKU: 3970
Availability: InStock

Price range: $47.00 through $172.40

Model

Clear

SKU: N/A Categories: Angle Brackets, Mounting / Angle Brackets, Optomechanical Components

Product Description

Integrated aluminum structure with excellent rigidity;
90° right-angle support structure enhances installation mechanical performance;
Parallelism and perpendicularity deviation within ±0.05 mm;
Suitable for constructing stable three-dimensional optical-mechanical assemblies;

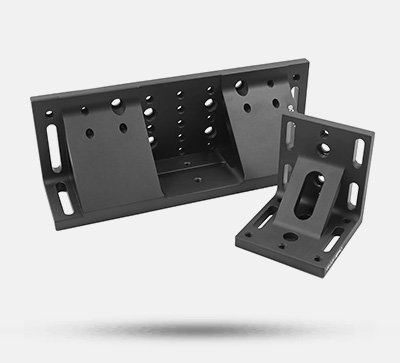

The APT-90 series right-angle adapters feature front and rear panels mutually perpendicular at 90°, making them ideal for three-dimensional optical-mechanical systems requiring vertical positioning.

Model	APT-90	APT-90A	APT-90B
Specification	736573mm	736546mm	223.063.576.377mm
Thread Type	Top panel: 10 positions of M6, 2 positions of M6 (countersunk holes), 2 positions of 6.125mm through-hole slotsSide panel: 7 positions of M6, 2 positions of M6 (countersunk holes), 4 positions of 6.116mm through-hole slots	Top panel: 4 positions of M6, 1 position of M6 (countersunk hole), 2 positions of 6.125mm through-hole slotsSide panel: 10 positions of M6, 2 positions of M6 (countersunk holes), 2 positions of 6.125mm through-hole slots	Top panel: 31 positions of M6, 6 positions of M6 (countersunk holes), 2 positions of 6.135mm through-hole slotsSide panel: 6 positions of M6, through-hole slots: 2 positions of 6.135mm, 1 position of 6.1*50.8mm
Weight	180.0g	130.0g	876.1g
Material	7075 Aluminum Alloy	7075 Aluminum Alloy	7075 Aluminum Alloy

Technical Description

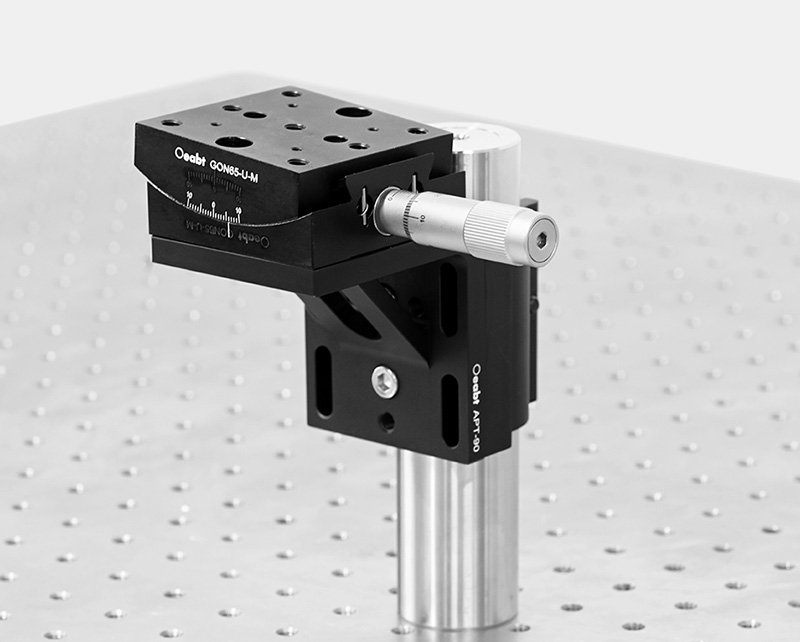

(1) The APT-90 series right-angle adapters are equipped with front and rear panels at 90° to each other, which are highly suitable for three-dimensional optical-mechanical systems requiring vertical positioning. The panels are provided with numerous threaded holes, countersunk holes, and through-hole slots for mounting to various adapter components, breadboards, or optical platforms.
