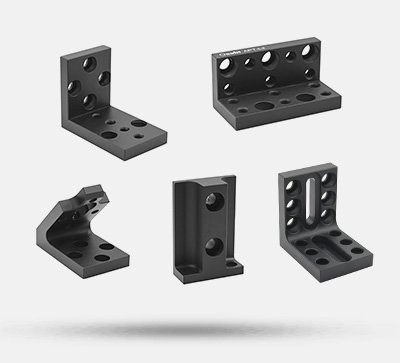

APT Series Angle Mounting Bracket

Name: APT Series Angle Mounting Bracket
SKU: 3971
Availability: InStock

Price range: $38.60 through $46.80

Model

Clear

SKU: N/A Categories: Angle Brackets, Mounting / Angle Brackets, Optomechanical Components

Product Description

Angled mounting plate with 45° or 90° inclined surfaces featuring mounting holes;
Triangular cross-sectional design enables stronger and more stable assembly;
Angle tolerance of ±30 arcminutes;
Flatness of 0.05mm;
Suitable for constructing three-axis translation stage accessories;

The angle mounting brackets are an ideal solution for building stable three-dimensional optical-mechanical assembly structures. They feature an integrated aluminum structure with 45° or 90° mounting hole planes.

Model	APT-L	APT-45
Specification	48.036.060.0mm	60.036.053.0mm
Angle Bracket	90°	45°
Mounting Surface	60.0*36.0mm	57.0*36.0mm
Thread Type	4 positions of M6 threaded holes, 6 positions of Ø6.2mm countersunk holes	5 positions of M6 threaded holes, 4 positions of Ø6.2mm countersunk holes
Weight	66.6g	74.7g
Material	7075 Aluminum Alloy	7075 Aluminum Alloy

Technical Description

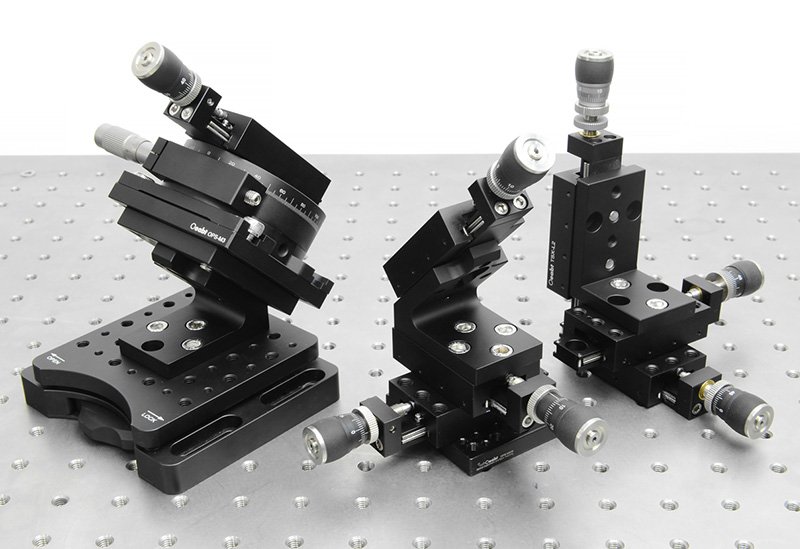

（1）The angle mounting brackets are an ideal solution for constructing stable three-dimensional optical-mechanical assembly structures. With an integrated aluminum structure, they are equipped with 45° or 90° mounting hole planes. The M6 holes on the surface can be combined with each other to provide stable compound angle support, enabling the construction of a high platform with excellent rigidity for coarse adjustment.

(2) The angles on these high-rigidity brackets are precise with an angle tolerance of ±30 arcminutes, suitable for building long-stroke three-axis linear translation stage sets using manual translation stages, or for the precise installation of small optical breadboards and components.
