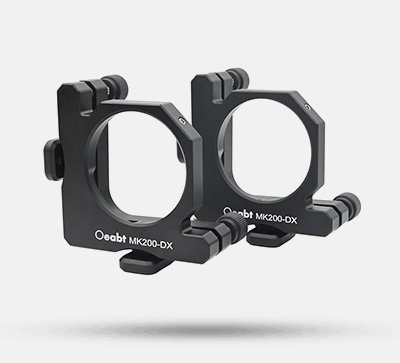

MK200-DX Ø2-Inch Two-Axis Adjustment Mirror Mount

• Compatible with Ø2-inch two-axis mirror mounts, fixed with nylon set screws.
• Angle range: ±3°.
• Rear-mounted mounting base aligns the front surface of the lens with the rod hole, simplifying beam alignment.
• M4 threaded holes at the bottom for rod installation.

The adjustment mount adopts a rear-mounted base design, optimizing the installation position of optical components. The front surface of the optical component is always at the center of the mounting rod (47.0mm above the rod).

Technical Description

• The adjustment mount adopts a rear-mounted base design, optimizing the installation position of optical components. The front surface of the optical component is always at the center of the mounting rod (47.0mm above the rod). This allows users to roughly adjust by rotating the rod without causing beam deviation during adjustment.

• Compatible with Ø2-inch optical components with thickness ≥4mm. The lens position is fixed by two contact lines formed by nylon set screws along the limit. Two adjusters provide an angle adjustment range of ±3°, with 8mrad (0.5°) adjustment per turn.

• Fixed to 12mm rods via 2 M4 threaded holes, supporting directional installation of right-hand or left-hand adjusters.

Engineering Drawing
