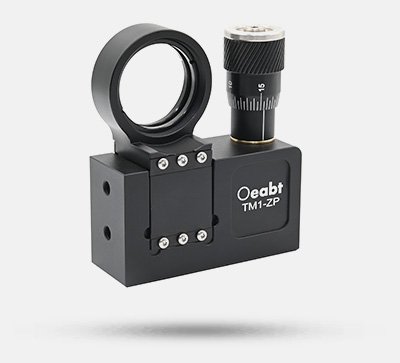

TM1-ZP Z-axis Translation Mount

• Provides 2mm translation stroke along the Z-axis (parallel to the optical axis).
• Driven by a high-precision micrometer head with a minimum adjustment scale of 1μm.
• Compatible with optical components of Ø1 inch (25.4mm) and thickness ≤7mm.
• Features SM1 (1.035”-40) internal threads, supplied with 2 retaining rings.
• Equipped with M4 threaded holes, supporting rod mounting.

The TM1-ZP translation mount adopts a high-precision flexure mechanism to achieve stable and repeatable Z-axis fine adjustment. It enables precise positioning of optical components along the optical axis.

Technical Description

• The TM1-ZP translation mount adopts a high-precision flexure mechanism to achieve stable and repeatable Z-axis fine adjustment movement. It can accurately position optical components along the optical axis, and is particularly suitable for experimental scenarios with extremely high focusing precision requirements, such as fiber coupling, spatial filtering, or fine-tuning compensation of optical paths in interferometry systems.

• This mount is equipped with SM1 (1.035”-40) internal threads. By using retaining rings, optical components of Ø1 inch with thickness ≤7mm can be installed, ensuring the stability and central alignment of the components during adjustment. For components with larger thickness, users can optionally configure SM1 lens sleeves.

• The base of the TM1-ZP mount integrates 3 M4 threaded holes and 2 M6 threaded holes, and 2 additional M4 threaded holes are provided on the side. It can be flexibly matched with any Ø1/2 inch rods or mounting plates, supporting vertical or horizontal installation configurations.

Engineering Drawing
