PCA-M4 Series & PCA-S2 Series Ø12mm Stainless Steel Rods [M4 Thread]

Product Description



• Precision-ground stainless steel rods with a diameter of 12mm.
• Length range: 20mm to 100mm, offering multiple options.

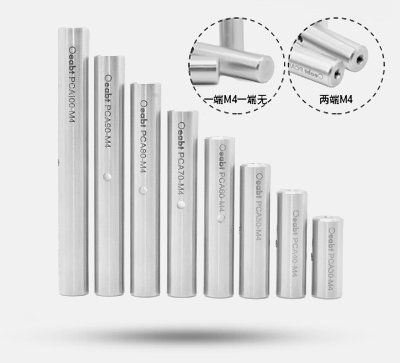

• Optional thread configurations: One end M4 thread + one end unthreaded; or M4 threaded holes at both ends.
• A Ø3mm through hole on the side allows a ball-head screwdriver or wrench to pass through, providing greater torque during component tightening.

The Ø12mm optical rods are fundamental components for constructing numerous rigid structures. Available in various lengths from 20mm to 100mm, they are compatible with our rod holders and structural accessories.

General Parameters	Specifications
Product Name	Ø12mm Stainless Steel Rods
Diameter	Ø12mm
Thread Type	M4
Material	304 stainless steel



Model	Length	Thread Type	Weight
PCA30-M4	30mm	One end M4, one end unthreaded	25.1g
PCA40-M4	40mm	Same as above	33.6g
PCA50-M4	50mm	Same as above	42.2g
PCA60-M4	60mm	Same as above	51.1g
PCA70-M4	70mm	Same as above	60.0g
PCA80-M4	80mm	Same as above	68.5g
PCA90-M4	90mm	Same as above	77.4g
PCA100-M4	100mm	Same as above	86.0g



Model	Length	Thread Type	Weight
PCA2-S2	20mm	M4 threaded holes at both ends	15.5g
PCA3-S2	30mm	Same as above	24.3g
PCA4-S2	40mm	Same as above	33.1g
PCA5-S2	50mm	Same as above	41.3g
PCA6-S2	60mm	Same as above	50.0g
PCA8-S2	80mm	Same as above	66.9g
PCA10-S2	100mm	Same as above	85.0g



Technical Description



The Ø12mm optical rods are fundamental components for constructing numerous rigid structures. Available in various lengths from 20mm to 100mm, they are compatible with our rod holders and structural accessories.

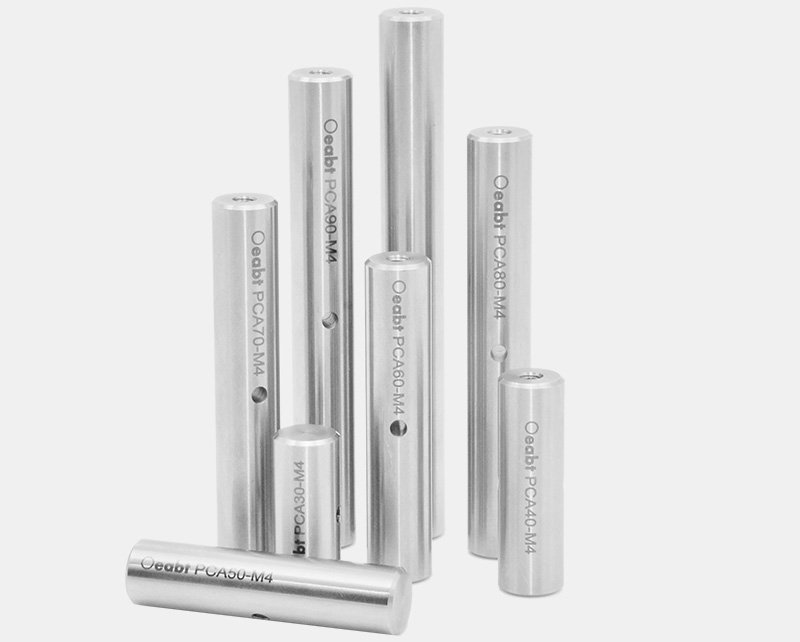

The PCA-M4 series rods feature an M4 threaded hole on the top, with a depth of 7~12mm (shorter rods have shorter hole depths). The end of the rod is smooth and unthreaded. A Ø3mm through hole on the side allows a ball-head screwdriver or wrench to pass through, providing greater torque during component tightening.



The PCA-S2 series rods are equipped with M4 threaded holes at both ends, with a depth of 7~12mm (shorter rods have shorter hole depths). They support bidirectional connection and are compatible with various optomechanical components.



Application Schematic

Assembly

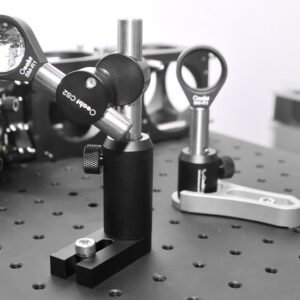

Application Example

Stainless steel rods are available in various lengths, playing an irreplaceable role in free-space optical experiment adjustment and manual optical path calibration. They can be used to install various optomechanical components arbitrarily.

Engineering Drawing Download

PCA-M4系列 工程图2
