CFP-CSK Cage Clamp Extension Adapter Block

CFP-CSK Cage Clamp Extension Adapter Block - Image 2

CFP-CSK Cage Clamp Extension Adapter Block - Image 3

CFP-CSK Cage Clamp Extension Adapter Block

Name: CFP-CSK Cage Clamp Extension Adapter Block
SKU: 3972
Availability: InStock

Price range: $36.00 through $48.60

Model

Clear

SKU: N/A Categories: 60mm Cage Systems, Adapters, Angle Brackets, Cage System Construction, Cage Systems, Clamps, Mounting / Angle Brackets, Optical Post Assemblies, Optomechanical Components

CFP-CSK Cage Clamp Extension Adapter Block

Product Description

Extension blocks function to lengthen and extend distances;
Countersunk hole design enables adaptation of coupled connecting rod clamps and guide rails;
CFP-CSK is compatible with clamping mounts, allowing vertical or horizontal installation of cage structures on its surface plate;
CFP-CSK can be stacked for secondary lengthening and extension;

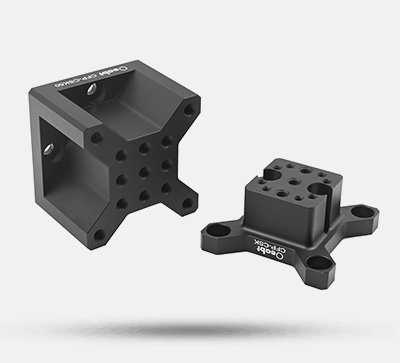

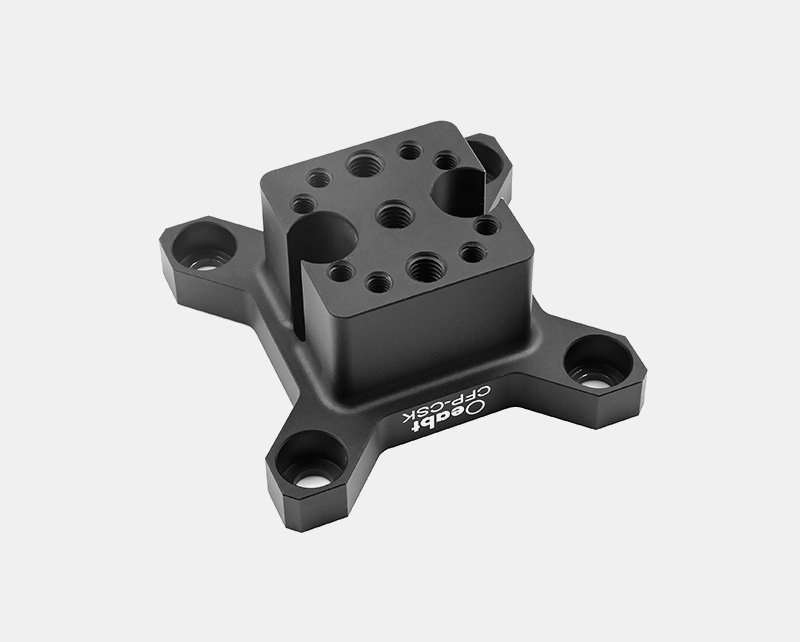

The clamp adapter block can mount 30mm/60mm cage systems on its surface plate and directly couple with Ø25mm and Ø1.5-inch connecting rod clamps.

Model	CFP-CSK	CFP-CSK50
Specification	63.563.530.0mm	63.563.550.0mm
Extension Block	21.0mm	40.0mm
Threaded Hole Type	8 positions of M4, 3 positions of M6, 6 positions of M6 (countersunk holes)	13 positions of M6, 4 positions of M6 (countersunk holes)
Weight	106.3g	347.7g
Material	7075 Aluminum Alloy	7075 Aluminum Alloy

Technical Description

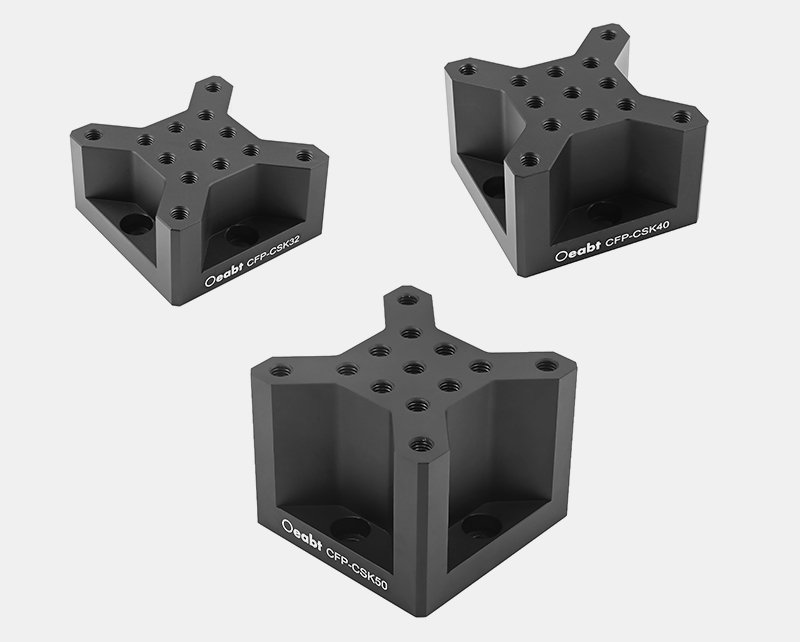

(1) The CFP-CSK series clamp adapter blocks can be used as extension clamps for coupled connecting rods and guide rails. The protruding block thickness of the adapter block is available in 21.0mm or 40.0mm options, which can lengthen and extend distances to a certain extent.

(2) The surface plate of the adapter block is equipped with a multi-threaded hole array. It is compatible with our CSK-A series clamping mounts, enabling vertical or horizontal installation of a 30mm/60mm cage system component on it.

(3) The spacing of the countersunk holes on the four sides of the clamp adapter block is 50mm, which is compatible with the thread arrays of most Oeabt translation stages, such as linear translation stage series and angular tilt stages. A 30mm/60mm cage structure can be mounted on the translation stage for use.
