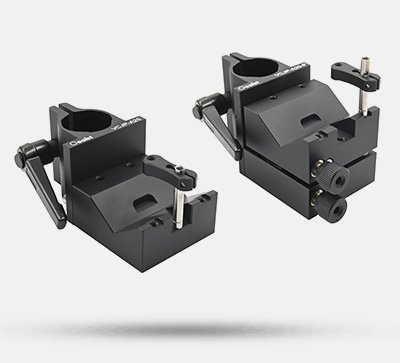

VCJP-A25 Series V-Shaped Fixture Mounts

Name: VCJP-A25 Series V-Shaped Fixture Mounts
SKU: 3598
Availability: InStock

Price range: $6.40 through $155.20

Model

Clear

SKU: N/A Categories: Optical Post Assemblies, Optomechanical Components

Product Description

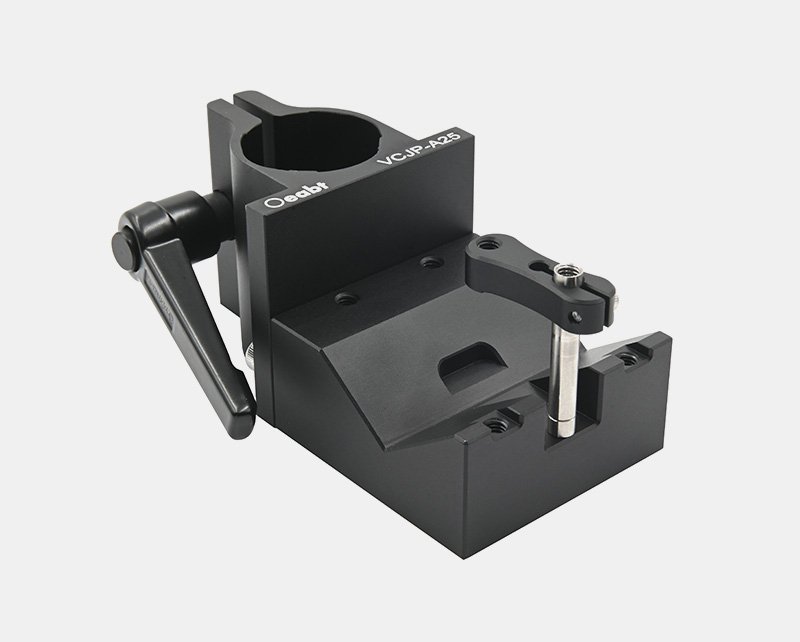

Standard Adjustment Model: Provides ±10° pitch adjustment.

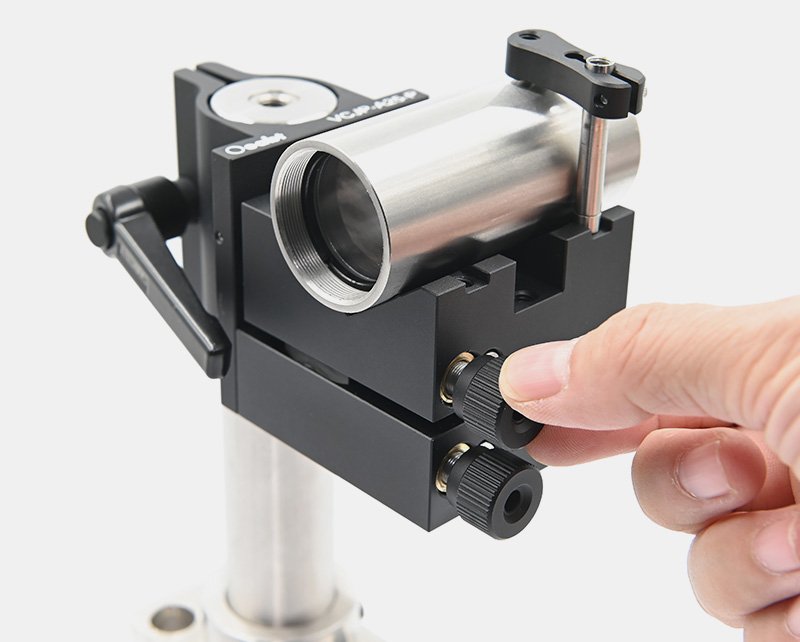

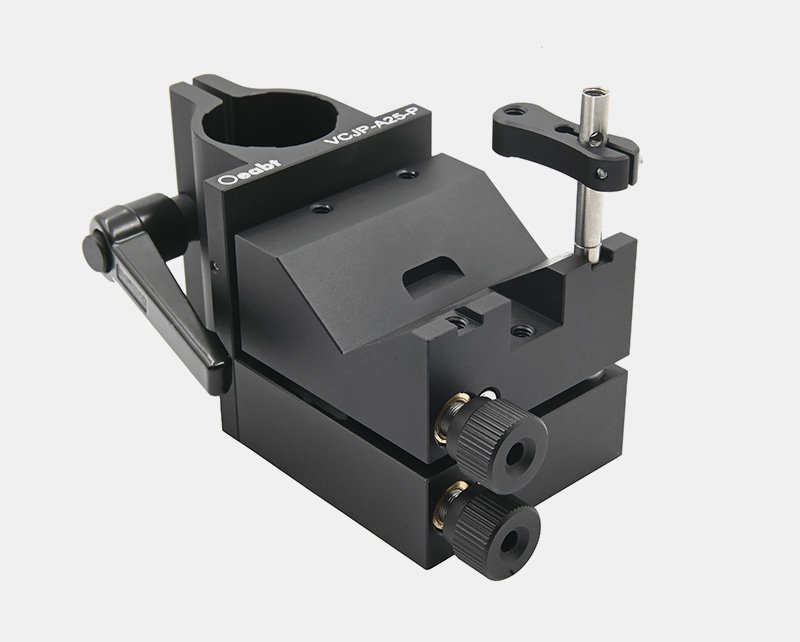

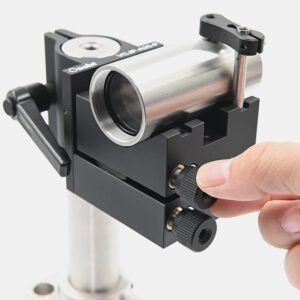

Precision Adjustment Model: Equipped with M6*0.5 adjusters, offering ±2° pitch and yaw adjustment with locking function.
Compatible with Ø25mm rods.
Pressure arm installed in the middle position: Can clamp cylindrical components with diameters ranging from Ø0.8mm to Ø24.0mm.
Pressure arm installed in the outer position: Can clamp cylindrical components with diameters ranging from Ø9.8mm to Ø30.3mm.
Equipped with a quick-release handle for fast fixation to the rod.

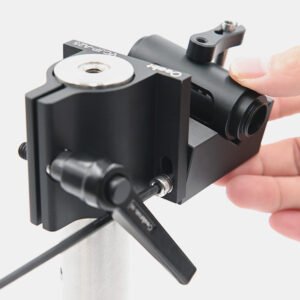

The V-shaped fixture mount is installed on a Ø25mm rod via flexible clamping driven by a handle, providing pitch and yaw adjustment for clamping cylindrical components.

Model	VCJP-A25	VCJP-A25-P
Dimensions	97.149.544.5mm	114.050.853.8mm
Adjustment Range	±10° pitch	±2° pitch and yaw
Adjustment Precision	/	6.81mrad/revolution
Thread Type	2x M4 (platform); 3x M4 (bottom)	2x M4 (platform)
Weight	232.3g	409.3g

Compatible Rod	Ø25mm
Pressure Arm Clamping	Middle position: Ø0.8-Ø24.0mm
	Outer position: Ø9.8-Ø30.3mm
Material	Aluminum alloy + Stainless steel

Model	PRK3-B
Dimensions	29.236.510.2mm
Rod Specifications	Ø4.8*31.4mm
Thread Type	M4 threaded hole (top); M4 stud (bottom)
Weight	7.4g
Material	Aluminum alloy + Stainless steel

Technical Description

The VCJP-A25 mount offers ±10° coarse pitch adjustment, which can be operated by loosening the cap screws on the back. The VCJP-A25-P adjustment mount is equipped with two adjustment screws, providing ±2° pitch and yaw control with a precision of 6.81mrad/revolution.

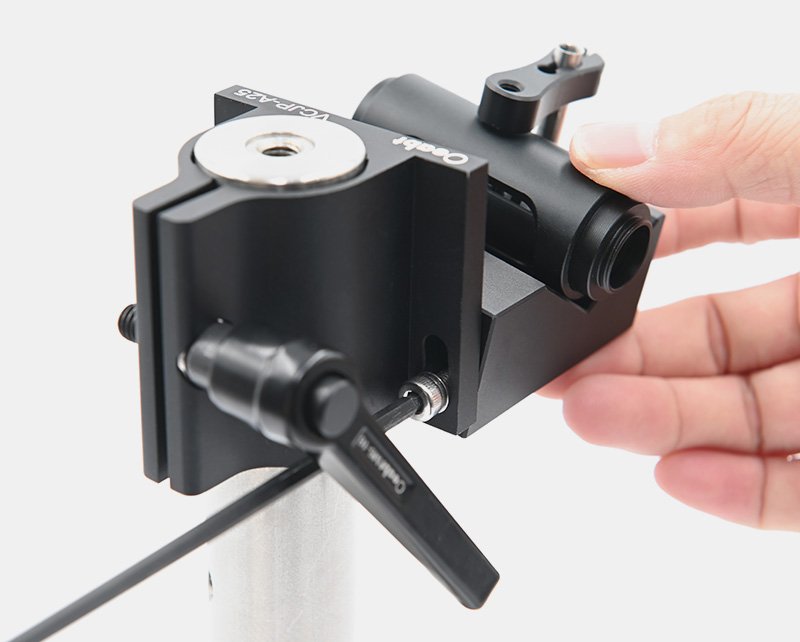

The included pressure arm can be installed in three M4 threaded holes on the outer edge. The middle mounting hole is located in a groove, allowing the mount to fix components with diameters of Ø0.8~24mm. The outer threaded holes in the V-shaped groove can clamp components with diameters of Ø9.8~Ø30.3mm. It includes a quick-release handle for fixing the fixture to the rod; the assembly can be engaged by simply rotating the handle. The internal mechanism is designed to adjust the rotation position of the handle without using bolts.

The VCJP-A25 allows ±10° coarse pitch adjustment by loosening the cap screws on the back; the VCJP-A25-P is equipped with M6*0.5 adjusters, offering ±2° pitch and yaw adjustment with a precision control of 6.81mrad/revolution.
