BEP-S Series Ø12 mm Pedestal Posts

Product Description

• Ø12mm base-mounted rods with M4 thread on one end and M6 thread on the other.
• Suitable for space-constrained scenarios.
• Integrated small basic building blocks.
• Fix the rod base using M-BASE-SM05 fork-shaped pressure plates.

These small structural components are specially designed for space-constrained environments, increasing the number of optical components that can be assembled in limited spaces.

Technical Description

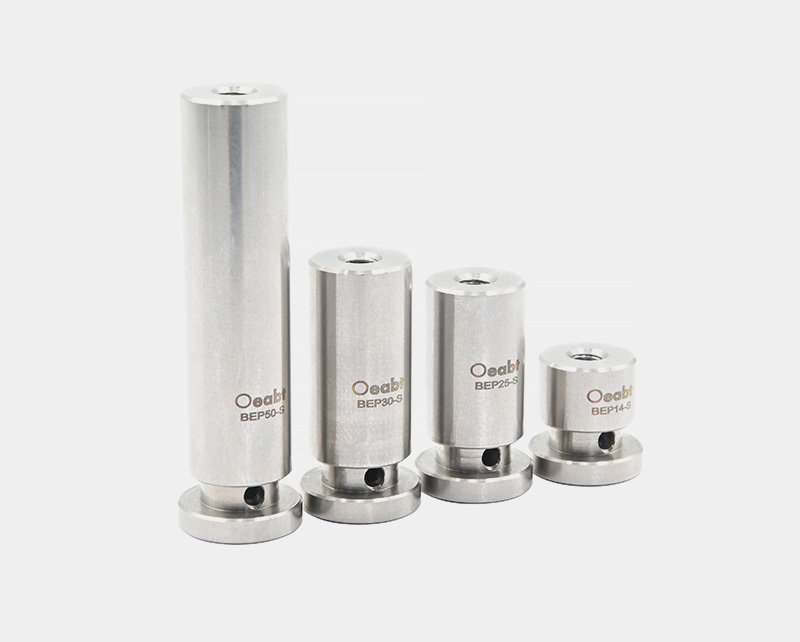

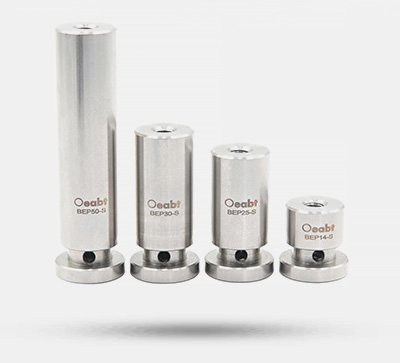

The rods feature a Ø12mm body with various length specifications (14.4mm to 50mm), enabling flexible installation and precise positioning in compact spaces. Each rod has an annular groove under the base and a Ø14mm base-type pedestal, compatible with M-BASE-S05 fork-shaped pressure blocks to lock the rod onto optical platforms or breadboards.

Made of 304 stainless steel, with an M4 threaded hole at the upper end and M6 thread at the bottom, for connecting different lens mounts and adjustment frames.

The pedestal is equipped with an annular groove, and when used with M-BASE-S05 fork-shaped pressure blocks, it offers multiple length options ranging from 14.4mm to 50mm.

Assembly

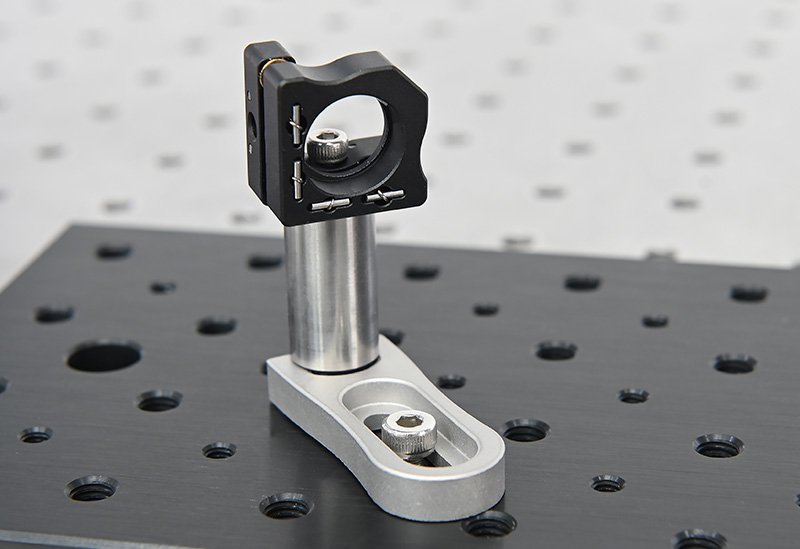

Application Example

Engineering Drawing Download

BEP-S-Engineering Drawing

M-BASE-S05-Engineering Drawing
