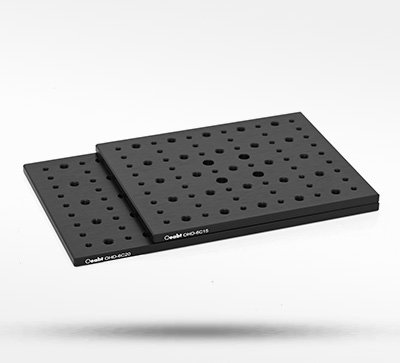

OHD6C Series Mini Optical Breadboard

Product Description

• High-density M4 and M6 threaded hole pattern
• Hole spacing: 12.5 mm or 25 mm for flexible mounting
• Solid black anodized aluminum construction to minimize reflections
• Multiple sizes available

The OHD-6C series breadboards are designed for space-limited setups. Made of 6 mm thick solid black anodized aluminum, they greatly reduce surface reflection. Their compact size and low profile make them ideal for tight spaces or expanding mounting surfaces for optical assemblies.



Model	OHD-6C15	OHD-6C20
Dimensions	150×125×6 mm	200×125×6 mm
Threads	M4 & M6 holes, Ø4.2 countersunk holes	M4 & M6 holes, Ø4.2 countersunk holes
Spacing	Hole spacing: 12.5 / 25.0 mm; Edge spacing: 12.5 mm	Hole spacing: 12.5 / 25.0 mm; Edge spacing: 12.5 mm
Weight	282.5 g	375.6 g
Material	7075 Aluminum Alloy	7075 Aluminum Alloy

Technical Notes



The OHD-6C series breadboards are designed for space-constrained setups. Constructed from 6 mm thick solid black anodized aluminum, they minimize surface reflection. Their small size and thin profile suit narrow spaces and extend mounting areas for optical components.

The breadboard features a high-density array of M4 and M6 threaded holes with 12.5 mm or 25 mm spacing. In addition, four M4 countersunk holes at the center allow mounting to standard breadboards, mounting brackets, or post assemblies.

Assembly

Application Examples

Engineering Drawings

OHD-6C20 Engineering Drawing

OHD-6C15 Engineering Drawing
