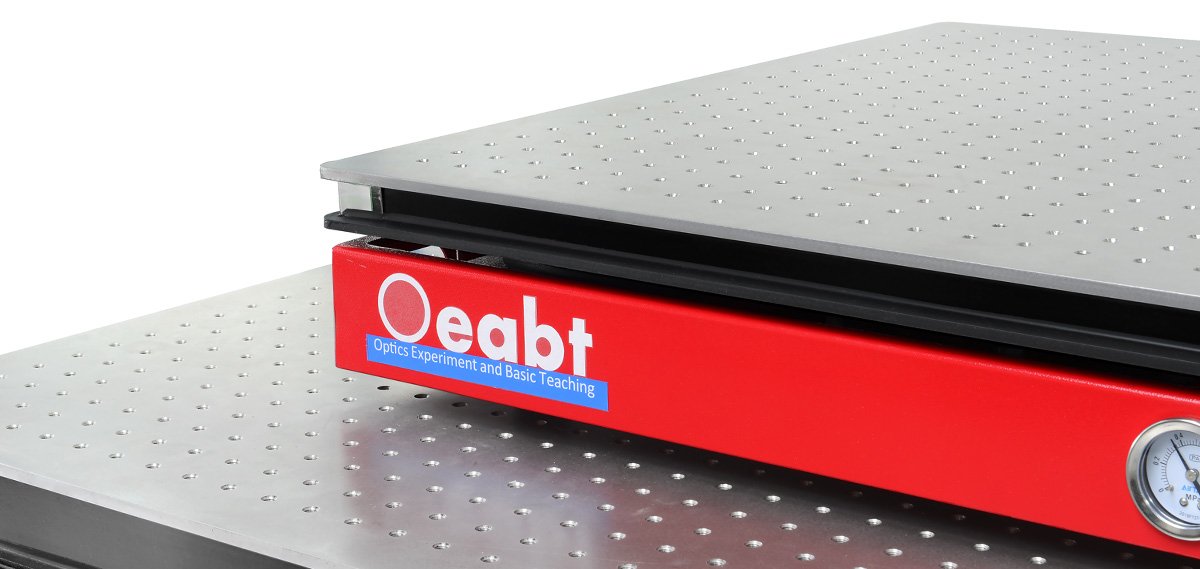

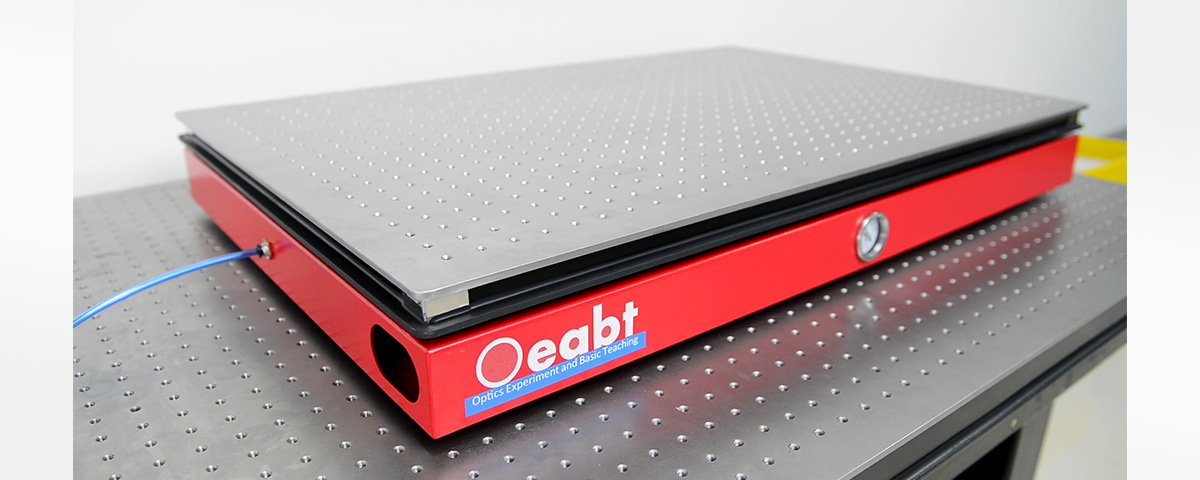

OTD-QF-S6090 Desktop Pneumatic Vibration Isolation Platform

Product Description

• Pneumatic vibration isolation optical platform (air pump not included).
• Automatic inflation & automatic leveling; fast response and quick balancing.
• Tabletop with M6 threaded holes in a 25×25 mm matrix; 37.5 mm margin on four sides.
• Suitable for high-magnification electron microscopes, scanning probe microscopes, laser interferometers, laser confocal microscopes, and similar applications.

The table uses a honeycomb core sandwich structure for outstanding vibration isolation and automatic leveling. It features light weight, high rigidity, and high damping. The top plate is made of high-quality high-permeability stainless steel, precisionground for high flatness, and deburred via rotary polishing to provide a matte, non-reflective finish. The panel features an M6 threaded hole array for easy mounting of optical components.



Model	OTD-QF-S6090
Outer Dimensions	900×600×109 mm
Application	Widely used in optics, electronics, precision machinery, metallurgy, aerospace, aviation, navigation, precision chemical engineering, nondestructive testing, etc. Mobile and suitable for light-load optical instruments; key vibration isolation equipment for precision testing instruments in machinery industries.
Features	Semi-diaphragm air springs deliver excellent vibration isolation; natural frequency typically 1.5–2 Hz; cost-effective research-grade pneumatic vibration isolation optical platform.
Auto Balancing	Automatic inflation & automatic leveling; fast response, quick balancing.
Natural Frequency	<6–7 Hz (load and application dependent).
Repeat Positioning Accuracy	±0.05 mm
Surface Roughness	0.8 μm
Table Structure	Three-layer honeycomb sandwich structure
Top Plate	6 mm high-permeability stainless steel with matte finish (anti-reflection).
Internal Support	Steel honeycomb structure, welded for high strength.
Bottom Plate	4–6 mm carbon steel; internal anti-corrosion paint, external black plastic coating.
Side Panels	Inner carbon steel + outer black aluminum composite panel; stainless steel corner guards for aesthetics and durability.
Flatness	0.02–0.05 mm / 600×600 mm
Hole Pitch / Diameter	M6 threaded holes; 25×25 mm pitch; 37.5 mm margin.
Pneumatic Support	Semi-diaphragm air springs with secondary air chambers; ultrasoft diaphragm type air springs for enhanced isolation, rigidity, and stability.
Weight	91.4 kg
Load Capacity	100 kg (at full pressure)

Technical Specifications



Excellent Vibration IsolationBuilt-in precision air spring isolation system delivers low natural frequency and effective vibration damping in multiple directions (especially vertical), preventing external vibration from affecting instrument accuracy and improving precision and efficiency.



Automatic LevelingWhen load position shifts, the platform quickly adjusts air spring pressure via high-precision valves to maintain level. Three height adjusters enable automatic leveling under changing loads.

Honeycomb Sandwich StructureLightweight, highrigidity, highdamping table body. Top plate: precision-ground high-permeability stainless steel with matte, nonreflective finish and M6 hole array for component mounting.

Notes

• Vibration isolators mustbe designed, installed, adjusted, and operated by professional mechanical and electrical engineers.
• If used with other products, inform our sales team of the application scenario and working conditions; use only after technical review.
• Always perform a trial run before use; install only after confirming proper performance and compatibility.

Assembly

Application Examples

Engineering Drawings

OTD-QF-S6090 Engineering Drawing
