MCB1 Microscope Top Breadboard

Product Description

• Standard metric M4, M6 breadboard hole array
• Bottom Ø51 mm male dovetailfor connection to microscope main systems
• Compatible with 30 mm and 60 mm cage systems
• Solid aluminum, low-reflection black anodized finish
• Compatible with MCP-D2B dovetail adapter plate (female dovetail: Ø53.2 mm, α=60°)

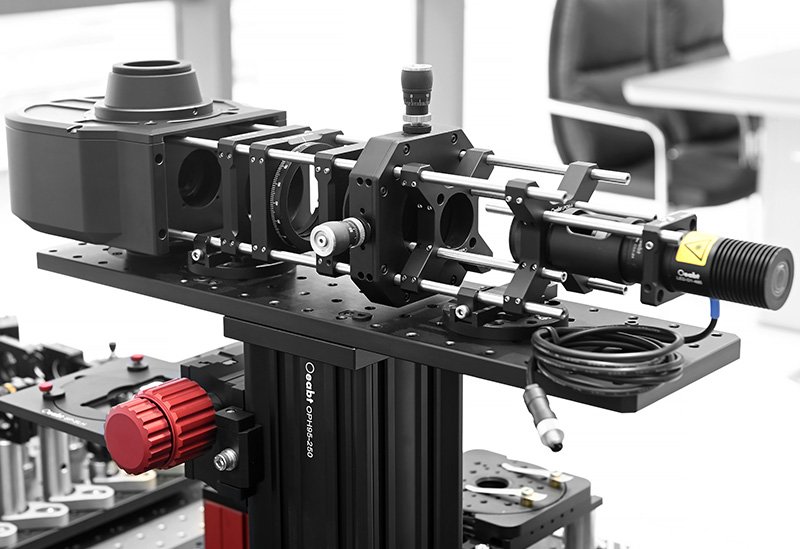

The MCB series breadboards are designed for building custom wide-field observation setups and epi-illumination paths on top of Oeabt microscopy imaging systems. The breadboard features a Ø51 mm male dovetail with a central Ø38.1 mm through-bore for the optical axis of the imaging system.

表格

Model	MCB1
Dimensions	450×117×12.2 mm
Port type	Male: Ø51 mm, α=60°
Clear aperture	Ø38.1 mm
Threaded holes	8×4-40, 6×M4 (countersunk), 90×M6
Weight	1622.5 g
Material	7075 Aluminum Alloy

表格

Model	MCB2
Dimensions	364.7×100.0×15.9 mm
Port type	Female: Ø53.2 mm, α=60°
Clear aperture	Ø38.1 mm
Threaded holes	4×4-40, 22×M4, M6 (number as specified)
Weight	1393.9 g
Material	7075 Aluminum Alloy

Technical Notes

Microscope Dovetail

A dovetail is a mechanical mounting interface used for precise alignment and assembly. Components are joined by inserting one dovetail into another and securing with one or more set screws. Dovetails come in two geometries: linear and circular.

• Linear dovetails allow sliding and locking for flexible positioning while constraining other degrees of freedom.
• Circular dovetails enable optical port alignment between components, maintaining a single optical axis with minimal user adjustment.

Many products in the Oeabt microscopy imaging series use dovetail designs compatible with Oeabt components and optomechanical parts from other manufacturers. For compatibility identification, key dovetail dimensions are listed in the parameter tables. Note that these dovetail designations are specific to Oeabt products; naming conventions may differ among other microscope manufacturers. Always refer to engineering drawings for dovetail compatibility.

Oeabt Microscope Dovetail Reference
Type	Model	Dovetail Shape	Dovetail Size	Angle	Compatible With
Dovetail Adapter	MCSM2-D2	Male	Ø50 mm	60°	MCP-D2B
	MCSM2-D1.5	Male	Ø37.6 mm	90°	Nikon Eclipse, Thorlabs Cerna
	D1.2-CSM05	Male	Ø30.5 mm	60°	CSJ-D1.2B
	D1.2-SM1SM05	Male	—	—	—
	D1.2-C20	Male	—	—	—
	D1.2-SM120	Male	—	—	—
Dovetail Adapter Plate	MCP-D2	Male	Ø51 mm	60°	MCP-D2B
	MCP-D2B	Female	Ø53.2 mm	60°	MCSM2-D2, MCP-D2B
	MCP-D2-1.8B	Male / Female	Ø51 mm (OD), Ø46.17 mm (ID)	60°	MCP-D2B, Nikon Eclipse, Thorlabs Cerna, Olympus

1. The MCB series breadboards are used to construct custom wide-field observation setups and epi-illumination paths on top of Oeabt microscopy imaging systems. The breadboard is equipped with a male or female dovetailwith a central Ø38.1 mm through-bore for the imaging system optical axis. This dovetail allows direct mounting to the epi-illumination arm of the microscope main body or stacking additional breadboards on top of epi-illumination modules.Note: MCB1 should be used with the OPS95-ML base plate for mid-mount installation.
2.

Model	Compatible System
MCB1	30 mm, 60 mm cage systems
MCB2	60 mm cage system

1. In addition to standard M4/M6 hole arrays, the breadboard has 8×4-40 threaded holesat the dovetail port, enabling integration with 30 mm and 60 mm cage systems for seamless mating of optical and threaded ports.

Assembly

Application Examples

Engineering Drawings

MCB2 Engineering Drawing

MCB1 Engineering Drawing
