M6 Series Fine Adjustment Screws

Product Description

• M6*0.5 precision regulator
• Precision fine-tolerance thread for higher sensitivity and adjustment accuracy
• Threaded bushing and lock nut for thread integration
• For integration with fine adjustment stages and translation stages
• Six optional lengths from 35 to 50mm

The fine adjustment screws are pre-lubricated to ensure smooth mating with compatible components. Featuring ultra-fine tolerances, they deliver higher sensitivity and adjustment accuracy with a strong load capacity.



Model	Adjustment Screw	Thread Length	Brass Type
			Brass Dimension	Mounting Diameter		Weight
M605-L30-A	M6*0.5	30mm	Ø12*15mm	Ø9.5mm		12.3g
M605-L35-A		35mm				13.3g
M605-L40-A		40mm				14.2g
M605-L45-A		45mm				15.1g
M605-L50-A		50mm				16.2g
M605-L30-B		30mm	Ø12.9*16mm	M9.5*0.5		15.1g
M605-L35-B		35mm				16.0g
M605-L40-B		40mm				17.0g
M605-L45-B		45mm				18.0g
M605-L50-B		50mm				19.0g
M605-L30-C		30mm	Ø15.8*7mm	M14*1.0		13.0g
M605-L35-C		35mm				14.0g
M605-L40-C		40mm				15.0g
M605-L45-C		45mm				16.0g
M605-L50-C		50mm				17.0g

Technical Description

(1) The fine adjustment screws are pre-lubricated for smooth engagement with compatible components. They feature ultra-fine tolerances for enhanced sensitivity and adjustment precision, and boast a robust load capacity. The regulator body is made of 304 stainless steel, with a flat head on the end face and a deep hexagon socket at the tail.

(2) When used with adjustment stages or translation components with compatible threads, please confirm the assembly hole matching the size of the threaded bushing. Three threaded bushing options are available. For installation, mount with the flange end forward and secure with epoxy resin—an ideal choice for fine adjustment sliding assembly.





Assembly

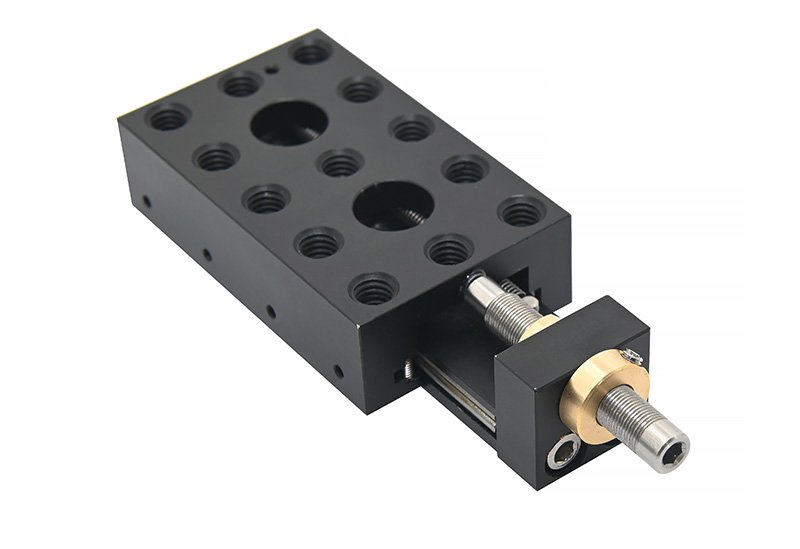

Application Examples



Engineering Drawings

M605-L-C Engineering Drawing

M605-L-B Engineering Drawing

M605-L-A Engineering Drawing
