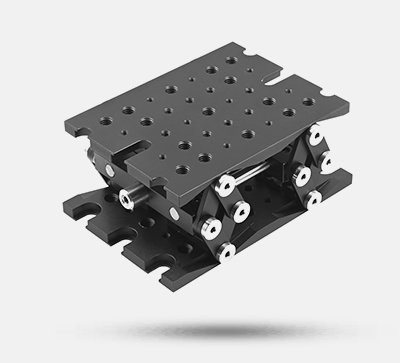

Z-axis Scissor Lift Stage TSX-Z25

Product Description

• Z-axis height adjustment range: 25mm, table height adjustable from 21.3mm to 46.8mm
• Mounting table size: 101.6×76.2mm
• Vertical load capacity: 55.1lbs (25 kg)
• Multiple specifications of threaded holes and mounting slots on the top and bottom

The Z-axis scissor lift stage is ideally suited for mounting opto-mechanical subassemblies requiring height adjustment. Its rigid scissor design ensures high stability and excellent parallelism.



Part Number	TSX-Z25
Mounting Table	101.6×76.2mm
Table Height	21.3mm–46.8mm
Adjustment Range	25mm
Load Capacity	55.1lbs (25 kg)
Weight	425.2g
Material	7075 Aluminum Alloy

Technical Notes



The Z-axis scissor lift stage is specially designed for mounting opto-mechanical subassemblies with height adjustment requirements, featuring a rigid scissor structure with high stability and superior parallelism. The adjustment device drives vertical movement via a lead screw, with a lead of 0.8mm per revolution, providing a 25mm vertical height adjustment range and a vertical load capacity of up to 50lbs.



The mounting table measures 101.6×76.2mm. Both the top and bottom plates are configured with an array of threaded holes in various specifications and are equipped with mounting slots.



• Top plate mounting holes: 10×M3, 8×M4, 15×M6, 2×6.7×19.2mm slots
• Bottom plate mounting holes: 10×M3, 8×M4, 11×M6, 6×6.7×19.2mm slots



Assembly

Application Examples

Engineering Drawings

SN0005 Engineering Drawing
