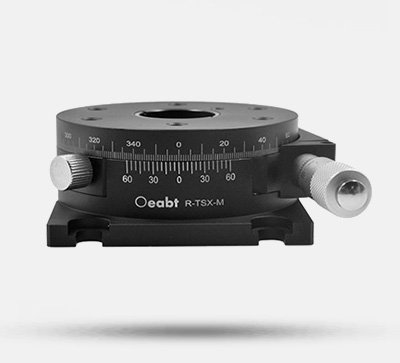

R-TSX-M 360° Rotation Stage

Product Description

• 360° coarse rotation of the stage; laser-engraved 1° graduation markings on the rotating disk
• Micrometer and vernier scale enable ±5° fine adjustment with a standard vernier accuracy of 5 arcminutes
• M4 threaded holes on the stage top for mounting PRK1-A/PRK2-A pressure arms
• SM1 (1.035″-40) threaded hole for central lens mounting, included with 2 CSK3 retaining rings
• The SM1 threaded central hole is compatible with optical components of Ø1 inch (25.4 mm) and maximum thickness of 15 mm
• Load capacity: 25 lbs (11.4 kg) for coarse adjustment, 3.75 lbs (1.7 kg) for fine adjustment

The R-TSX-M rotation mount is a heavy-duty stage designed for precise rotational adjustment of optical components, standard optomechanical assemblies and 30 mm cage systems.

Technical Notes



When the locking thumb screw is unlocked, the stage enables smooth, continuous 360° manual rotation with the 1° graduation markings on the lower side as the reference. When the thumb screw is locked, the micrometer provides a ±5° fine adjustment range with a standard vernier scale on the lower side and an accuracy of 5 arcminutes.

The micrometer allows for ±5° fine adjustment, calibrated against the vernier scale on the lower side with a precision of 5 arcminutes.

The stage top features 6 regularly arranged M6 threaded holes and 1 M4 threaded hole, with a central SM1 (1.035″-40) threaded hole (1 standard CSK3 SM1 retaining ring included; additional retaining rings available for separate purchase).

The base is equipped with 4 M6 countersunk mounting slots for fixation on optical platforms, and 2 M6 threaded holes on the side for vertical plane mounting applications.

Pressure arms are mountable on the rotation stage, available in two specifications: 6×65 mm and 8×65 mm (sold separately).

Assembly

Application Examples

Engineering Drawings

R-TSX-M Engineering Drawing
