DRP Series Differential Precision Regulator

Product Description

• Modular manual differential actuator
• Suitable for our Nano series flexible translation stages or linear translation stages
• Precision adjustment vernier knob with scale (50 divisions)
• Optional stroke range
• Brass component mountable to Ø9.5mm, M9.55 or M141.0 mounting sleeves

The DRP series regulators deliver high resolution and repeatability. The lever mechanism amplifies the resolution of the high-precision fine adjustment thread, resulting in a small axial displacement.

Adjustment Screw		M6*0.5, coarse adjustment 0.5mm/rev
Fine Adjustment Stroke		300μm, 50μm/rev
Stroke per Revolution		Coarse: 0.5mm/rev, Fine: 50μm/rev
Theoretical Accuracy		＜1μm
Model	DRP31-A			DRP41-A
Specification	Ø20.0*72.8mm			Ø20.0*82.8mm
Coarse Adjustment Stroke	8.8mm			18.8mm
Brass Mounting Diameter	Ø9.5mm			Ø9.5mm
Weight	87.8g			88.2g
Model	DRP31-B		DRP41-B
Specification	Ø20.0*72.8mm		Ø20.0*82.8mm
Coarse Adjustment Stroke	7.8mm		17.8mm
Brass Mounting Thread	M9.5*0.5		M9.5*0.5
Weight	90.7g		92.2g
Model	DRP18-C (without lock ring)				DRP31-C	DRP41-C
Specification	Ø20*57.4mm				Ø20.0*72.8mm	Ø20.0*82.8mm
Coarse Adjustment Stroke	6.2mm				16.8mm	26.8mm
Brass Mounting Thread	M14*1.0				M14*1.0	M14*1.0
Weight	85.8g				88.5g	90.0g

Technical Description

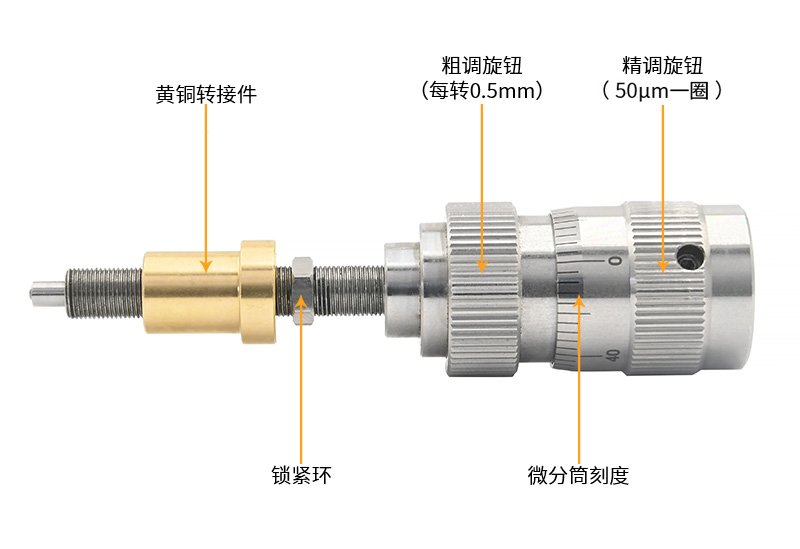

(1) The DRP series regulators offer high resolution and repeatability. The lever mechanism magnifies the resolution of the high-precision fine adjustment thread to achieve minimal axial displacement. This unique design ensures uniform and smooth movement, which is largely independent of load.

(2) Two knobs are provided for coarse and fine adjustment respectively. The coarse adjustment provides an accuracy of 0.5mm per revolution within the stroke range, while the fine adjustment has a stroke of 300µm with a nominal 50µm per revolution. The modular brass adapter can be connected to mounting holes with Ø9.5mm, M9.50.5 or M141.0 specifications.

Brass Adapter	DRP-A Type	DRP-B Type	DRP-C Type
Product Image
Brass Dimension	Ø12*15mm	Ø12.9*16mm	Ø15.8*7mm
Mounting Specification	Ø9.5mm	M9.5*0.5	M14*1.0

Assembly

Application Examples

Engineering Drawings

DRP-C Engineering Drawing

DRP-B Engineering Drawing

DRP-A Engineering Drawing
