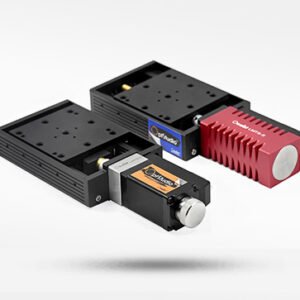

LMTS Series Stepper Motor Translation Stage

Product Description

• This series of linear stages is suitable for motion positioning applications requiring low speed, high precision and medium load
• Stroke range: 28 mm
• Maximum operating speed: 3.5 mm/s
• Load capacity: 5 kg in horizontal direction, 1.25 kg in vertical direction; easy to assemble and combine into 2 or 3-axis motion stages (XY, XZ, XYZ)
• Drive types: LMTS-D – dual-drive type with manual feed knob on the stepper motor shaft; LMTS-S – micro geared stepper motor for higher-precision micro feed control, no manual feed function

The LMTS series linear motorized translation stages provide 28 mm linear translation, optimized for applications requiring medium load capacity and high resolution (e.g., measurement and inspection). Specially designed for microstepping applications, they deliver smaller, smoother low-speed movement with lower vibration and noise compared to DC servo motors.

表格

Specification	LMTS-D28	LMTS-S28
Dimensions	253.0×70.0×24.0 mm	253.0×70.0×24.0 mm
Stroke	28 mm	28 mm
Actuator Type	28BYG-B double-shaft output motor	Geared stepper motor (reduction ratio 1:45)
Maximum Speed	3.5 mm/s	0.4861 mm/s
Weight	666.5 g	666.5 g
Calculated Resolution	3.5 μm	3.5 μm
Typical Resolution	7 μm	7 μm
Speed Regulation	1X=0.4375 mm/s, options: 1X/2X/4X/8X	0.4861 mm/s (fixed)
Load Capacity	5 kg (horizontal); 1.25 kg (vertical)	5 kg (horizontal); 1.25 kg (vertical)
Unidirectional Repeatability	±5 μm	±5 μm
Bidirectional Repeatability	±10 μm	±10 μm
Lead (Thread Pitch)	0.7 mm	0.7 mm
Rated Voltage	DC 12V	DC 12V
Rated Current	0.6 A	0.6 A
Recommended Controller	LMTS-DRIVER	LMTS-DRIVER
Cable Length	1 m	1 m
Material	Aluminum alloy with black anodized finish	Aluminum alloy with black anodized finish

LMTS-DRIVER Single-Axis Stepper Motion Controller

表格

Specification	Value
Motor Output	–
Drive Voltage	DC 12V
Max Drive Current	1250 mA
Drive Type	12-bit PWM control
Control Algorithm	Semi-closed loop microstepping
High-Resolution Stepping	LMTS-D: 6400 microsteps per revolution (1.8° step angle stepper motor)LMTS-S: 28800 microsteps per revolution (18° step angle / 1:45 geared stepper motor)
Position Feedback	Hall effect encoder (2-phase) input, 5V differential
Encoder Feedback Bandwidth	500 Hz
Position Counter	32-bit
Operation Modes	Position, Speed, Motion Cycle
Acceleration/Deceleration Mode	Trapezoidal
Motor Connector	D-sub26 (M8/8pin for open-loop control)
Motor Drive Output	DC two-phase
Quadrature Encoder (QEP) Input	Differential
Limit Switch Input	Positive limit, Zero position limit
Encoder Power Supply	DC 5V
Front Panel Controls	–
Motion Control Lever	SPDT self-reset
Input Power Requirement	–
Voltage	Regulated DC 12V
Max Output Current	1.5 A
Housing Dimensions (excl. buttons)	76.1×74.2×46.9 mm
Weight	183.4 g

Technical Notes

The LMTS series linear motorized translation stages provide 28 mm linear translation, optimized for applications requiring medium load capacity and high resolution such as measurement and inspection. Specially engineered for microstepping, they enable smaller, smoother low-speed movement with significantly lower vibration and noise than DC servo motors.

The main stage is supported by four recirculating ball carriages precisely mounted on linear guide rails. Recirculating ball bearing guide rails and precision trapezoidal lead screws ensure smooth and uniform feeding. Magnetoelectric inductive limit switches are adopted for high sensitivity and reliability.Drive Types:



• LMTS-D28: Dual-drive type with a manual feed knob on the stepper motor shaft
• LMTS-S28: Micro geared stepper motor with a 45:1 reduction gearbox, delivering higher thrust and more precise micro feed control, no manual feed function



The stress-relieved aluminum alloy base ensures high stability. Standard pitch threaded holes on the stage surface facilitate connection with optomechanical components or stacking with other stages to guarantee orthogonality. Oeabt offers a variety of optional adapter plates for maximum mounting flexibility. APT-90 right-angle adapters and OPS-M406 series adapter plates can be used to build XY, XZ or XYZ multi-axis systems. Each stage is supplied with a base plate for fixation on optical platforms or breadboards.

The Oeabt LMTS-DRIVER is an open/closed-loop controller specifically designed for motorized actuators and translation stages with stepper motors. It provides a simple manual and automatic control method for low-power stepper motors (supporting up to 18W at DC12V). The controller uses pulse signals with up to 32 subdivisions (6400 pps) for motor microstepping control, effectively suppressing motor vibration. Combined with trapezoidal and S-curve acceleration/deceleration control modes, and featuring an independently developed patented circuit, it can dynamically monitor motor working conditions and automatically adjust the output current. This ensures stable motor operation during start, stop and continuous running, with noise and heat generation kept to an extremely low level.

The controller features a Chinese operation menu and a lever-type control handle for easy operation. With Oeabt’s mature C-module structure, it can be quickly integrated on OPM series power supply and USB communication bases or used independently. A USB communication interface is integrated for connection with computers.

When multiple controllers are used, it is recommended to cascade with KCH-A series communication bus and power hub. Specifically designed for the operation of Oeabt series C-module controllers, it allows the C-modules to be installed close to all other mechanical components required for building automated optomechanical applications. They simplify cable management, power links and communication between multiple USB devices, thus greatly reducing the footprint of instruments on the optical platform.

Stage Package Accessories

LMTS-D28/LMTS-S28 motorized stepper translation stage + base plate + DB26 connection cable

Controller Package Accessories

1×Single-axis controller (including base) + 1×USB3.0 data cable + 1×DC 12V power supply

Assembly

Application Examples

Engineering Drawings

LMTS-S Engineering Drawing

LMTS-DRIVER Engineering Drawing

LMTS -D Engineering Drawing
