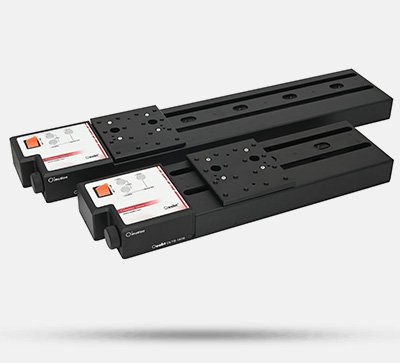

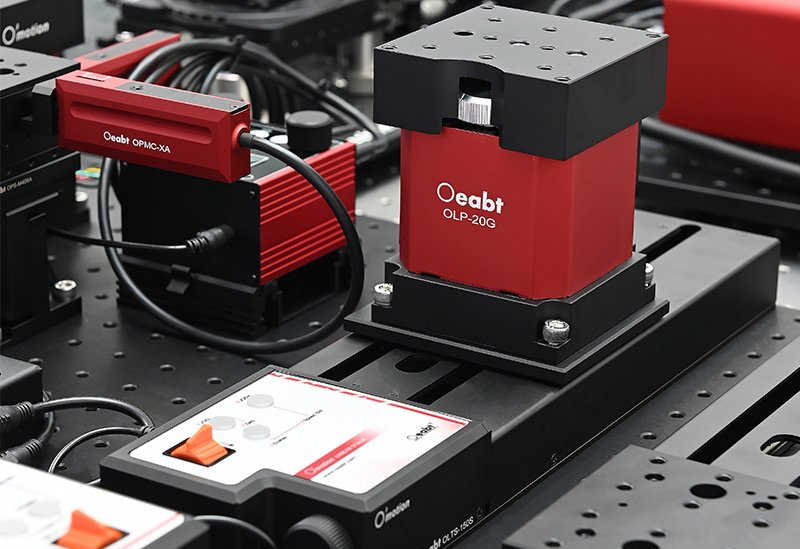

OLTS-S Series Integrated Drive & Control Long-Stroke Linear Motion Stage

OLTS-S Series Integrated Drive & Control Long-Stroke Linear Motion Stage - Image 2

OLTS-S Series Integrated Drive & Control Long-Stroke Linear Motion Stage

Name: OLTS-S Series Integrated Drive &amp; Control Long-Stroke Linear Motion Stage
SKU: 5445
Availability: InStock

Price range: $54.00 through $1,588.00

Model

Clear

SKU: N/A Categories: Motion Control, Motorized Translation Stage

Product Description

Built-in drive and control circuit, equipped with a double-shaft output 28BYG stepper motor, supporting both electric and manual operation modes
Integrated PID control function with smooth acceleration and deceleration curves, enabling stable start, stop, forward and reverse movement of the actuator without jitter
Default 256x microstep subdivision for drive pulses, ensuring smooth, quiet and stable operation of the motion stage
Hall joystick for real-time, linear and smooth stepless speed control of the linear motion stage during acceleration and deceleration
Supports free motion control modes including jog, creep, and Hall stepless speed regulation for forward/backward feeding
Retains the travel position before power-off; no automatic zero reset after restart (manual zero reset available)
Motor reset and speed switching (high/low gears) via combined key operation
Realizes interaction with host computer programs via USB serial communication, adopting the ASCII O’motion instruction set as the communication protocol
Enables the development of host computer control programs on Windows/Linux/MacOS/Android and other operating systems with serial communication function for cross-platform applications
Provides Windows-version host computer control program samples and communication protocol documents for convenient secondary development or system integration by users

This linear motion stage integrates the O’motion series drive and controller, enabling precise motion control without external control equipment, which greatly simplifies the system architecture and installation process.

表格

Model	OLTS-150S	OLTS-300S
Dimensions	360×100×40.5 mm	500×100×40.5 mm
Total Stroke	146 mm	296 mm
Weight	2000.3 g	2610.0 g
Tabletop Size	100×90 mm	100×90 mm
Tabletop Threads	16×M6, 6×Ø3 mm (dowel holes)	16×M6, 6×Ø3 mm (dowel holes)
Lead Screw	Ø8 mm, 1 mm lead	Ø8 mm, 1 mm lead
Guide Rail Type	Dual linear guide rails	Dual linear guide rails
Material	Aluminum alloy + high carbon steel	Aluminum alloy + high carbon steel
Accuracy Specifications	–	–
Full-Step Resolution	0.002 μm/pulse	0.002 μm/pulse
Half-Step Resolution	0.001 μm/pulse	0.001 μm/pulse
High-Speed Gear	4.69 mm/s	4.69 mm/s
Low-Speed Gear	2.93 mm/s	2.93 mm/s
Jog Distance	0.1 mm (fixed value)	0.1 mm (fixed value)
Positioning Accuracy	±0.01 mm	±0.01 mm
Unidirectional Repeat Positioning Accuracy	±0.02 mm	±0.02 mm
Bidirectional Repeat Positioning Accuracy	±0.03 mm	±0.03 mm
Load Capacity	11.7 kg	11.7 kg
Motor & Sensor Specifications	–	–
Motor Type	Two-phase stepper motor	Two-phase stepper motor
Motor Model	28BYG-60AB	28BYG-60AB
Rated Current	0.6 A/Ph	0.6 A/Ph
Step Angle	1.8°	1.8°
Microstep Count	51200	51200
Sensor Type	Slot-type photoelectric sensor	Slot-type photoelectric sensor
Sensor Supply Voltage	DC 5V	DC 5V
Current Consumption	50 mA	50 mA
Output Electrical Characteristic	NPN normally closed	NPN normally closed
Signal Validity	Low level active	Low level active

BASE-PL

Specification	Value
Dimensions	200×90×6 mm
Thread Holes	4×M4 (countersunk holes), 6×M6, 2×Ø12 mm (through holes), 4×Ø4 mm (blind holes), 2×Ø3 mm (locating holes)
Weight	281.6 g
Material	7075 aluminum alloy

APT-90L

Specification	Value
Dimensions	102×98×230 mm
Thread Holes	Base plate: 8×M6 (countersunk holes); Side plate: 3×M6, 2×Ø3 mm (locating holes)
Weight	1104.4 g
Material	7075 aluminum alloy

Technical Notes

The stage is equipped with a 28BYG stepper motor and supports 256x microstep subdivision technology. The unique Hall joystick design enables real-time stepless speed control, and combined with the built-in PID control algorithm, it achieves smooth acceleration and deceleration curves, effectively eliminating motion jitter. The dual linear guide rail structure and precision lead screw drive deliver a positioning accuracy of ±0.01 mm.

The stage features both electric and manual operation modes, supporting multiple control methods such as jog and creep, and is equipped with a power-off position memory function with no need for re-zeroing after restart. In terms of the control system, the stage supports USB serial communication and is compatible with multiple operating systems including Windows, Linux, MacOS and Android. It adopts the standard ASCII O’motion communication protocol and is accompanied by complete development documents and sample programs, facilitating secondary development and system integration for users.

Adopting a modular design with a built-in O’motion series drive and controller, the stage provides users with a convenient integrated motion control solution. Manual control: Stepless speed regulation via the Hall joystick; Automatic operation: Support for automatic execution of preset programs.

。
