Name: CSJ-30T Series 30 mm Array Cage Plate
SKU: 4660
Availability: InStock

CSJ-30T Series 30 mm Array Cage Plate

Price range: $27.00 through $32.40

CSJ-30T Series 30 mm Array Cage Plate

Product Description

Multi-position array design for mounting multiple optical components simultaneously
Enables quick construction of optical systems requiring folded light paths
Accepts Ø1-inch optical components with a maximum thickness of 4.5 mm
Equipped with SM1 (1.035″-40) internal threaded holes
Compatible with 30 mm cage systems

The CSJ-30T series cage plates feature a modular array design, allowing 2/3/4 cage components to be integrated side-by-side in an array into our 30 mm cage systems.

Specification	CSJ-30T3	CSJ-30T4
Dimensions	101.0×41.1×8.9 mm	131.0×41.1×8.9 mm
Number of Positions	3	4
Central Aperture	SM1 (1.035″-40) internal thread	SM1 (1.035″-40) internal thread
Mountable Thickness	Ø1-inch optical components with thickness ≤4.5 mm	Ø1-inch optical components with thickness ≤4.5 mm
Through-Hole Spacing	Ø6.1 mm through holes, 30×30 mm spacing	Ø6.1 mm through holes, 30×30 mm spacing
Threaded Hole Type	2×M4 threaded holes	2×M4 threaded holes
Weight	57.0 g	73.5 g
Material	7075 Aluminum Alloy	7075 Aluminum Alloy

Technical Description

(1) The CSJ-30T series cage plates adopt a modular array design, which allows 2/3/4 cage components to be integrated side-by-side in an array into our 30 mm cage systems. This design enables convenient and flexible mounting as well as rapid alignment, making the plates particularly suitable for constructing optical systems that require folded light paths.

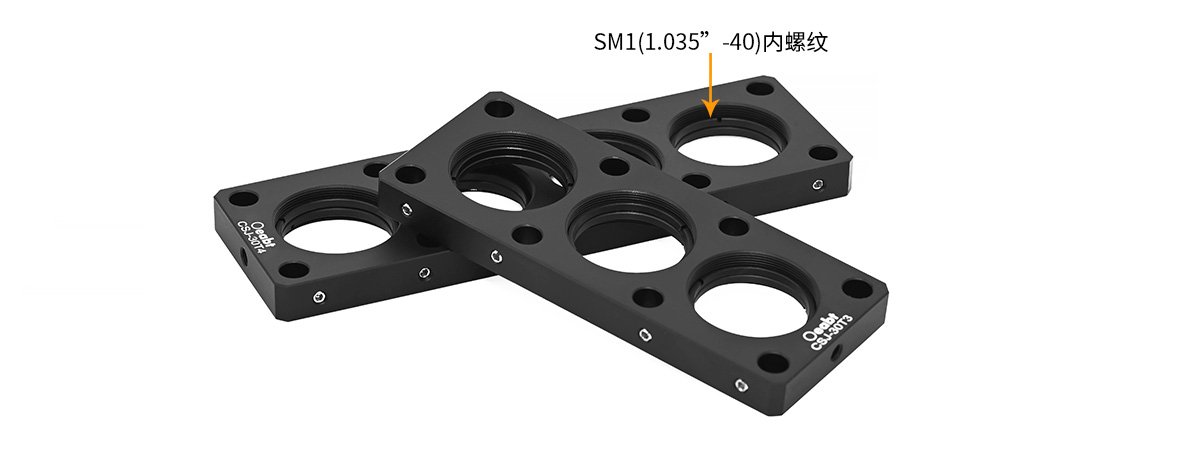

(2) The cage plates are machined with SM1 (1.035″-40) internal threads, which can mount Ø1-inch optical components with a maximum thickness of 4.5 mm or other SM1-threaded components. Two CSK3 retaining rings are included for each hole position to secure the optical components in place.

(3) One set screw is located on the side of each cage rod through-hole and can be tightened with a 2.0 mm screwdriver or wrench to provide a rigid connection for the cage subsystem. In addition, one M4 threaded hole is provided at both the top and bottom ends for mounting optical posts.
