FCM Series Ferrule Clamp

Product Description

• Flexure clamp compatible with Ø2.5 mm or Ø3.2 mm ferrules.
• Bottom M4 threaded mounting hole, compatible with a wide range of optical posts.
• Compact size for flexible installation of fiber connectors in experimental setups.

The FCM series ferrule clamp is compact and designed for mounting fiber connectors in experimental setups. It accepts fiber connectors and ferrules with diameters of Ø2.5 mm or Ø3.2 mm.

Technical Description

1. The FCM series ferrule clamp is compact and suitable for fiber connector installation in experimental setups. It supports ferrules and fiber connectors of Ø2.5 mm or Ø3.2 mm. The fiber ferrule is secured in the flexure clamp via a side set screw, tightened with a 1.5 mm hex key.

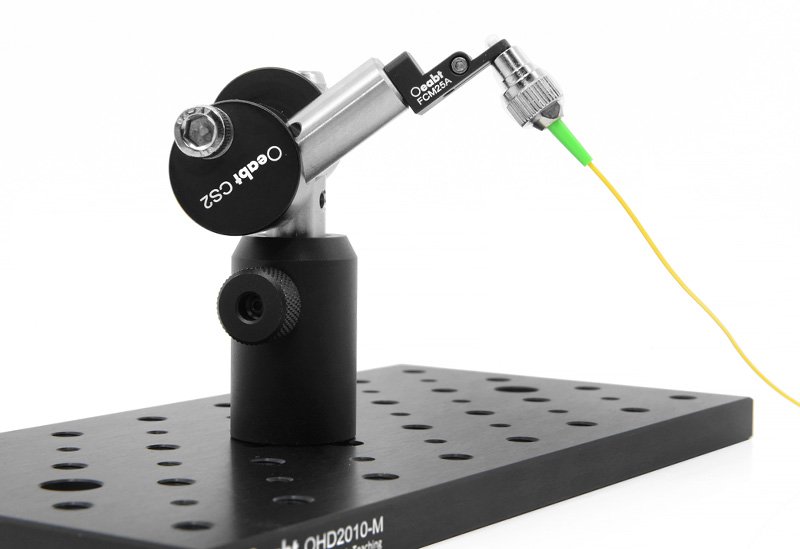

1. The M4 threaded hole on the bottom of the clamp is compatible with our Ø12 mm stainless steel postsfor freespace optical setups. When used with the CS2 adjustableangle post clamp, it allows free deflection in the setup, greatly improving flexibility.

Assembly

Application Examples

Engineering Drawings

FCM Engineering Drawing
