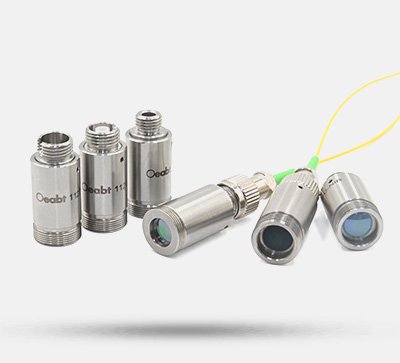

F1220 Series Ø12 mm Fiber Collimator

Product Description

• Ø12×20 mm, non-magnetic stainless steel housing
• Pre-aligned fiber collimator for collimating light emitted from optical fibers
• Available alignment wavelengths: 405–850 nm
• Designed for single-mode fiber patch cords; FC/PC, FC/APC, and SMA905 connector options
• Simplifies fiber coupling and detection systems

A fiber collimator is a pre-aligned optical component that collimates divergent light beams transmitted through optical fibers into parallel beams (or couples parallel beams into optical fibers).

表格

Item	Specification
Dimensions	Ø12×20 mm
Mounting Interface	M11×0.5
Beam Diameter	5 mm (3 mm for 785 nm, 830 nm, 850 nm)
Divergence Angle	0.01°
Focal Length	15 mm
Numerical Aperture (NA)	0.17
Effective Collimation Distance	2 m

(1) Fiber Collimation Conditions: Designed for single-mode fiber patch cords. Performance will degrade if used with multi-mode fibers. Always use the specified wavelength and matching patch cords; otherwise collimation performance will deteriorate.(2) Note: Perfect collimation cannot be achieved with multi-mode or large-core fibers.

1220FC Series



Series	Model	Alignment Wavelength	Anti-Reflection Coating	Connector
1220FC Series	1220FC-405	405 nm	400-700 nm	FC/PC (2.2 mm wide key)
	1220FC-450	450 nm
	1220FC-488	488 nm
	1220FC-520	520 nm
	1220FC-635	635 nm
	1220FC-658	658 nm
	1220FC-785	785 nm	700-1100 nm
	1220FC-830	830 nm
	1220FC-850	850 nm

1220FCAPC Series



Series	Model	Alignment Wavelength	Anti-Reflection Coating	Connector
1220FCAPC Series	1220FCAPC-405	405 nm	400-700 nm	FC/APC (2.0 mm narrow key)
	1220FCAPC-450	450 nm
	1220FCAPC-488	488 nm
	1220FCAPC-520	520 nm
	1220FCAPC-635	635 nm
	1220FCAPC-658	658 nm
	1220FCAPC-785	785 nm	700-1100 nm
	1220FCAPC-830	830 nm
	1220FCAPC-850	850 nm

1220SMA Series



Series	Model	Alignment Wavelength	Anti-Reflection Coating	Connector
1220SMA Series	1220SMA-405	405 nm	400-700 nm	SMA
	1220SMA-450	450 nm
	1220SMA-488	488 nm
	1220SMA-520	520 nm
	1220SMA-635	635 nm
	1220SMA-658	658 nm
	1220SMA-785	785 nm	700-1100 nm
	1220SMA-830	830 nm
	1220SMA-850	850 nm

Technical Description

(1) This pre-aligned fiber collimator converts divergent beams from optical fibers into parallel beams (or couples parallel beams into fibers). With a compact Ø12 mm profile, it integrates easily into existing setups, corrects beam divergence, reduces optical power loss in fiber connections and beam handling, and improves overall system optical performance.



Model Series	1220FC Series	1220FCAPC Series	1220SMA Series
Connector Type	FC/PC	FC/APC	SMA

(2) For installation, a collimator mounting adapter is recommended. It features an internal M11×0.5 mm thread compatible with this series and an external SM1 (1.035-40) thread for direct integration into 30 mm cage systems.

(3) It can also be mounted on optical adjustment mounts using POL series fixed mounting holes or OAD series collimation mounting holes.

Assembly

Application Examples

Engineering Drawings

1120FC Engineering Drawing

1120FCAPC Engineering Drawing

1120SM Engineering Drawing
