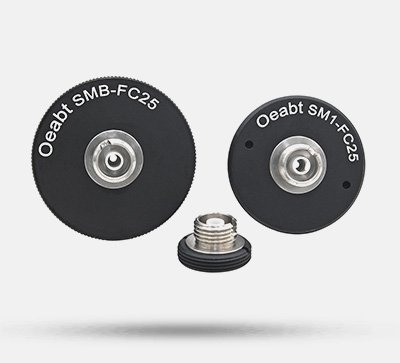

FC Fiber Connector Adapter Plate

Product Description

• FC port adapter plate, wide key 2.2 mm, port bore Ø2.5 mm.
• Commonly used for assembling free-space fiber couplers, collimators and other free-space coupling applications.
• Works with lens sleeves to create a light-tight structure.
• Compatible with SM-thread photodetectors or power meter probes.
• Available with SM05 and SM1 thread flange options.

The FC fiber adapter plate connects fibers with FC/PC connectors to SM-threaded components.



Port Type	FC/PC interface, wide key 2.2 mm
Port Bore	Ø2.5 mm
Material	Aluminum alloy + stainless steel + ceramic core



Model	SM05-FC25	SM1-FC25	SMB-FC25
Dimensions	Ø13.3×7.6 mm	Ø26×7.6 mm	30.4×7.6 mm
Thread Type	SM05 (0.535”-40) external thread	SM1 (1.035”-40) external thread	SM1 (1.035”-40) internal thread
Weight	2.7 g	5.7 g	5.8 g

Technical Description

1. The FC fiber adapter plate connects fibers with FC/PC connectors to SM-threaded components. It can link patch cords, fiber probes and other devices, or connect standard fibers to optical accessories for complex optical experiments.

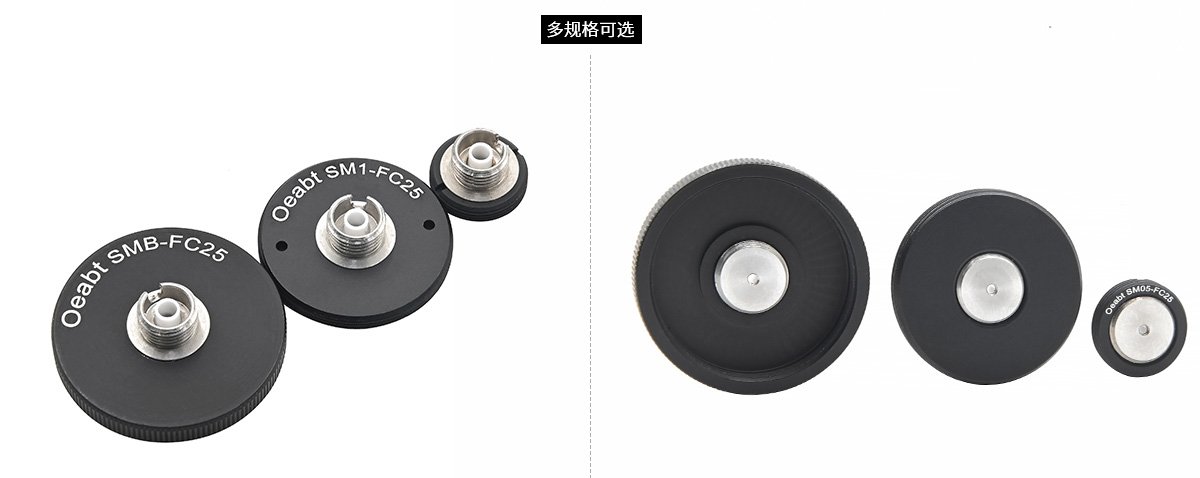

1. Multiple specifications available: SM05-FC25, SM1-FC25, SMB-FC25.

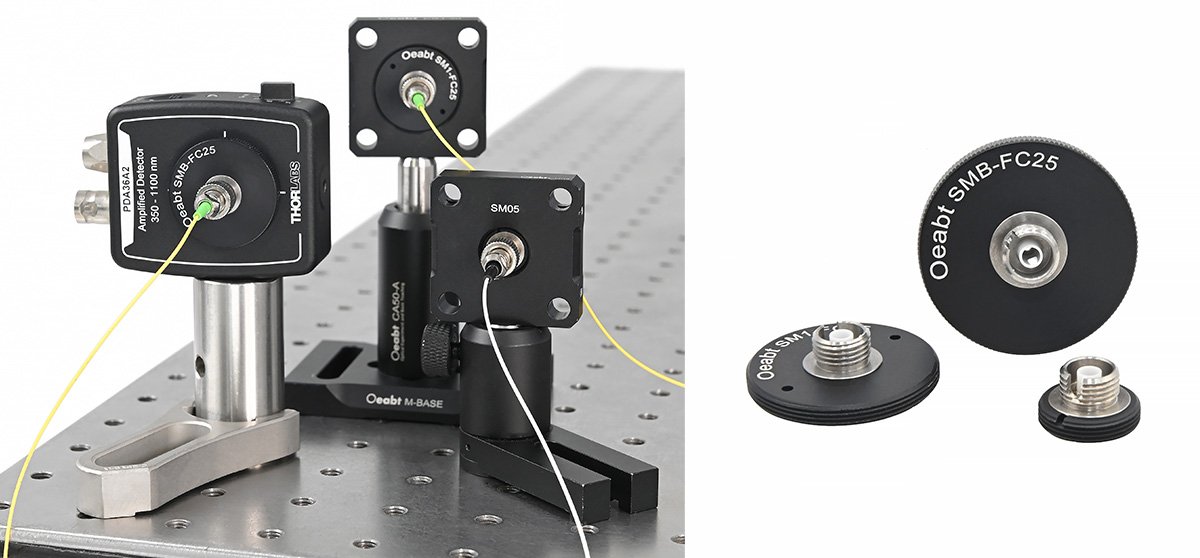

1. Application Example

Assembly

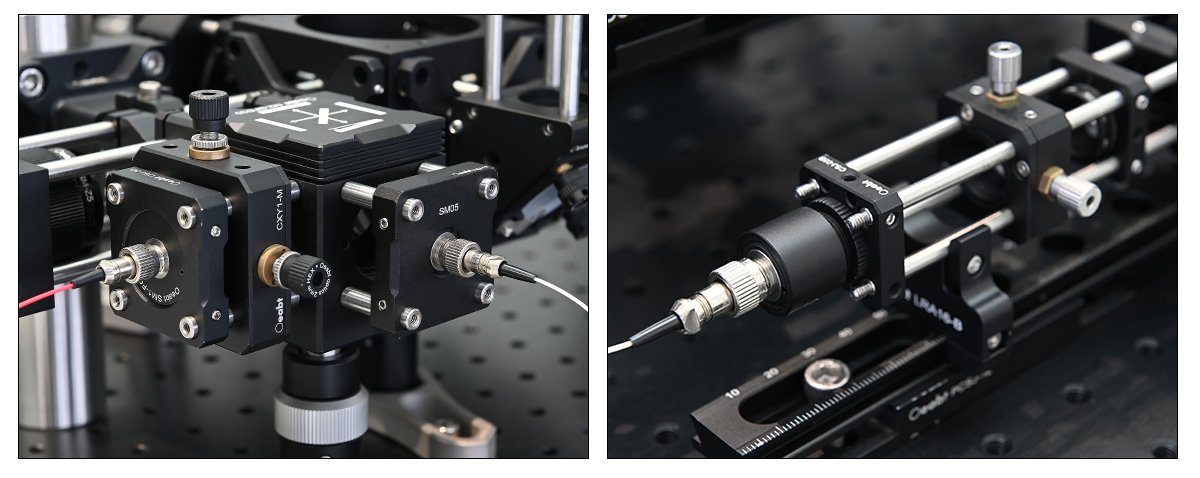

Application Examples

Engineering Drawings

SMB-FC25 Engineering Drawing

SM05-FC25 Engineering Drawing

SM1-FC25 Engineering Drawing
