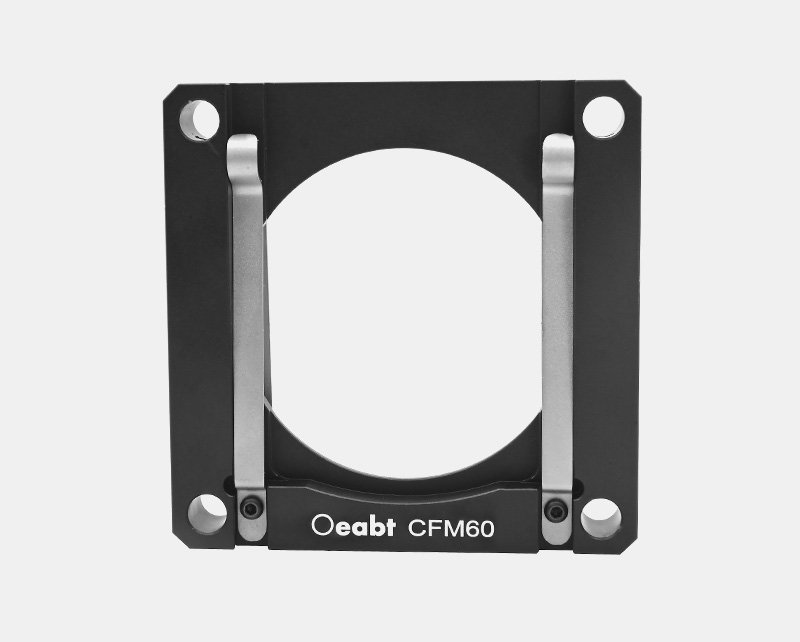

CFM60 Cage Filter Mount

Product Description

• Compatible with square filters of 49-51mm in size and ≤4mm in thickness
• Supports single or double-sided filter mounting
• Compatible with 60mm cage systems
• M4 screw hole at the bottom

The CFM60 Cage Filter Mount is designed for holding square filters with a size of 49-51mm and a maximum thickness of 4mm.



Model	CFM60
Specification	71.171.115.8mm
Compatible Size	Square filters: 49-51mm in width, ≤4mm in thickness
Through-hole Spacing	Ø6.02mm through-holes with 60mm spacing
Clear Aperture	Ø41.9mm
Screw Hole Type	1 x M4
Weight	68.7g
Material	7075 aluminum alloy + SPCC steel sheet

Technical Description

(1) The CFM60 Cage Filter Mount is engineered to hold square filters measuring 49-51mm and with a thickness of up to 4mm. Two spring clips are provided on each side of the mount, which can firmly press the filter against either side of the clear aperture. A maximum of two filters can be mounted simultaneously.

(2) The mount is equipped with four through-holes for mounting to a 60mm cage system with Ø6mm cage rods. Side locking screws allow for quick fixation and adjustment of the cage rod position.

(3) An M4 internal threaded hole is featured at the bottom, supporting mounting to a standard optical breadboard or system bracket via a post for enhanced flexibility and system integration.



Assembly

Application Examples

Engineering Drawings

CFM60 Engineering Drawing
