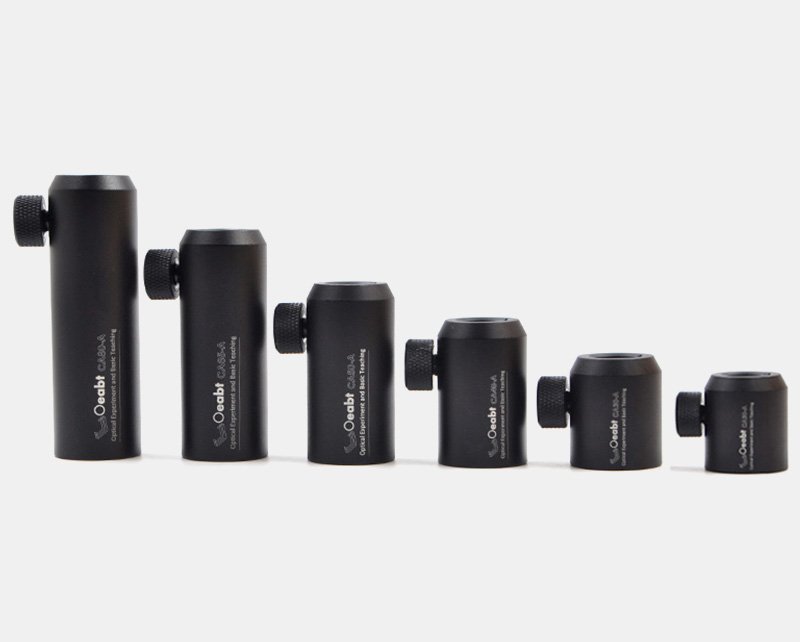

CA-A Series Rod Holders

Product Description

• Compatible with Ø12-12.7mm series stainless steel rods.
• Equipped with a 1/4-inch-20 (M6) threaded hole at the bottom, which can be used with the PCA31-S screw base.
• Each rod includes a spring-loaded thumb screw for tightening the rod after positioning.
• The rod holder is compatible with all our bases and base adapters.

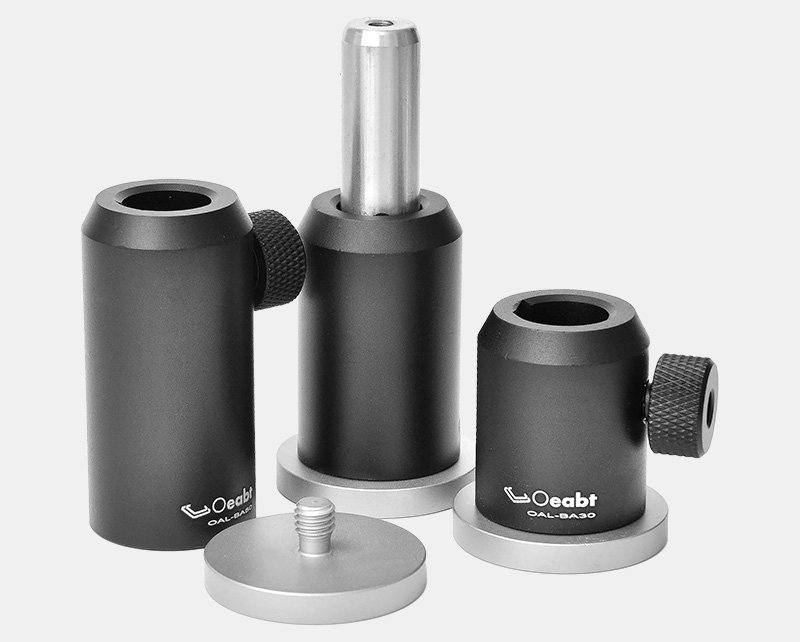

The elevated rod holder combines the universal functions of our standard rod holder with the compactness of the base pressure fork design. The fork-shaped pressure plate can lock the rod holder on the optical breadboard. The fork-shaped pressure plate can rotate 360 degrees to select the most convenient mounting hole, allowing temporary positioning before locking the rod. The through-hole design allows for maximum adjustment of the rod height.

Technical Description

The CA-A series rod sleeve has a base that can be used with the fork-shaped pressure plate below for flexible installation on the optical platform. It provides support during rough alignment. The standard rod holder and base adapter can be converted into a base-mounted rod holder. Each holder includes a spring-loaded thumb screw for positioning and elevating the rod before tightening.

Aluminum spring-loaded hexagonal locking thumb screws for easy positioning;

Extra-wide grooves provide stable dual-line contact for the rod;

The rod can pass through the base to achieve the lowest beam height.

Assembly

Installation Method:

Application Example

Oeabt offers a variety of series of column rods and support rods in different lengths, which play an irreplaceable role in free-space optical experiment adjustment and manual optical path calibration, and can install various optomechanical components arbitrarily.

Engineering Drawing Download





CA-A Engineering Drawing
