Name: PC12 Series Ø12mm Angle Post Clamp
SKU: 3897
Availability: InStock

PC12 Series Ø12mm Angle Post Clamp

Price range: $11.80 through $15.40

Product Description

Mounting fixtures for Ø12mm or 12.7mm rods at different angles.

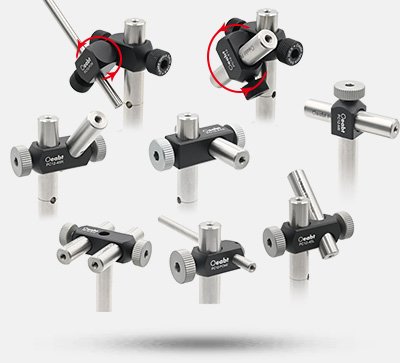

Angle options: Fixed 90° (single limit hole); Fixed 45° (left or right direction, two limit holes); Fixed 90° to each other or 0° parallel installation (two limit holes); Continuous 360° rotation (two limit holes).
Aluminum thumb screws provide the clamping force required for locking.

The PC12 series angle fixtures are multi-functional assembly accessories designed to optimize rod installation.

Model	Dimensions	Angle Installation	Limit Holes	Thread Type	Weight	Compatible Rods
PC12-A12	52.815.715.7mm	90° fixed	2 places	/	21.7g	Ø12mm (Ø12.7mm) rods
PC12-B12	63.215.815.8mm	0° fixed, 90° fixed	2 places	1x M4 (counterbore)	25.1g	Ø12mm (Ø12.7mm) rods
PC12-M6	29.415.815.8mm	90° fixed	1 place	1x M6 (bolt)	12.1g	Ø12mm (Ø12.7mm) rods
PC12-45R	55.515.815.8mm	45° right-hand fixed	2 places	/	20.7g	Ø12mm (Ø12.7mm) rods
PC12-45L	55.515.815.8mm	45° left-hand fixed	2 places	/	20.7g	Ø12mm (Ø12.7mm) rods
PC12-X12	46.933.515.8mm	Continuous 360° rotation	2 places	/	38.2g	Ø12mm (Ø12.7mm) rods

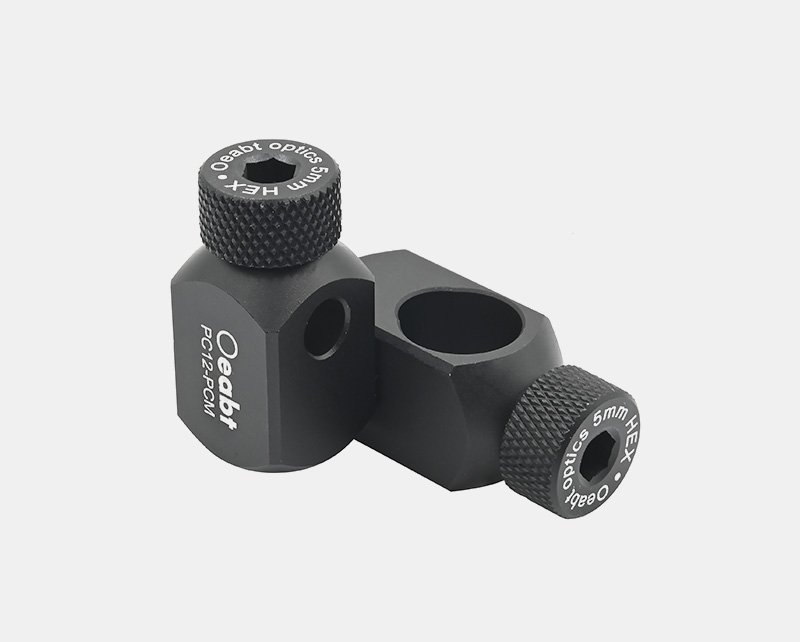

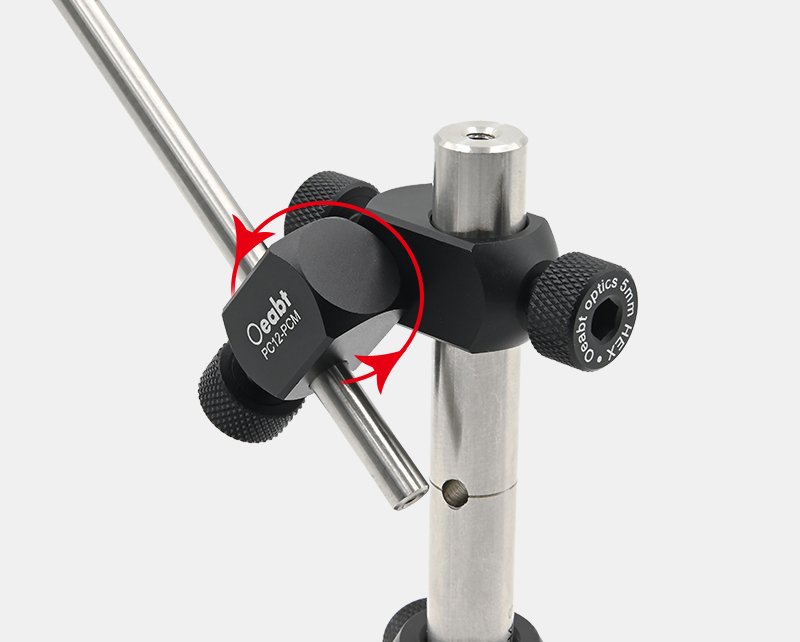

PC12-PCM	47.433.115.8mm	Continuous 360° rotation	2 places	/	40.5g	Ø6mm cage rods; Ø12mm (12.7mm) rods

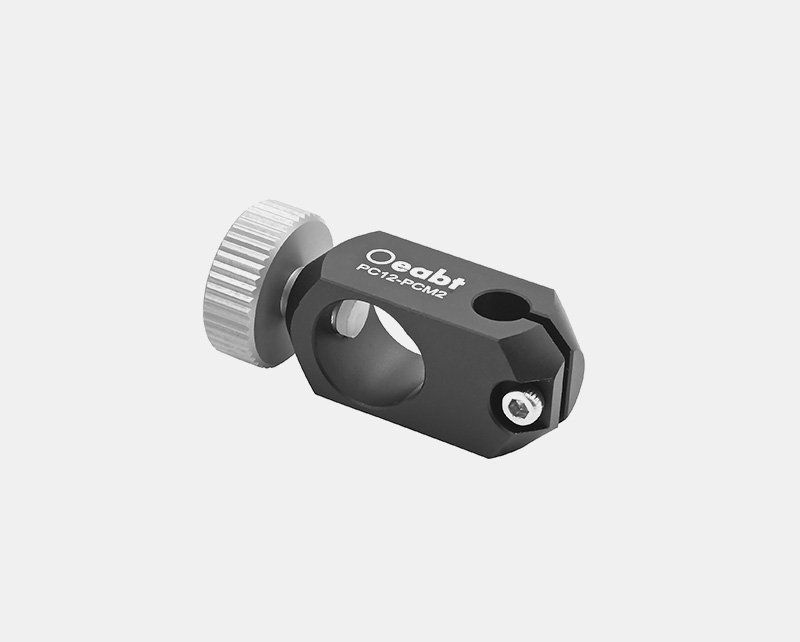

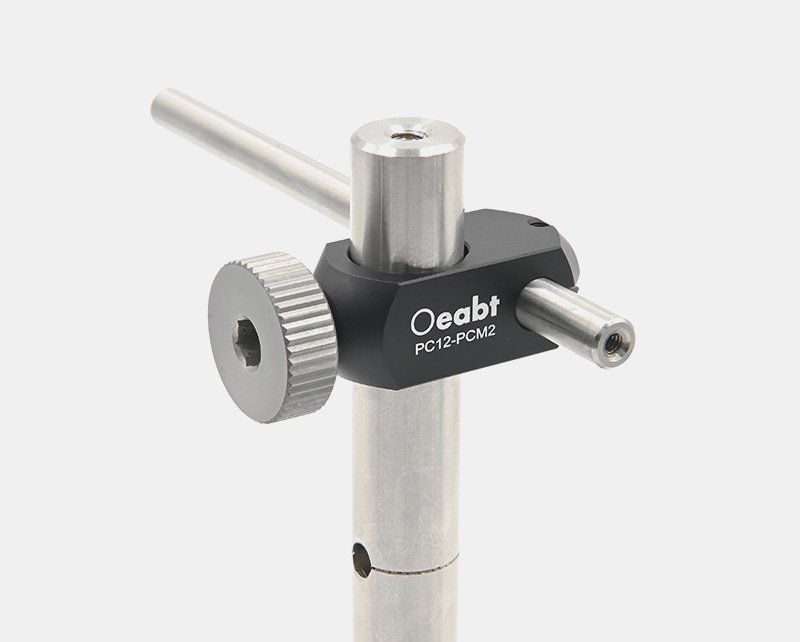

PC12-PCM2	40.315.214.5mm	90° fixed	2 places	/	13.5g	Ø12mm (Ø12.7mm) rods

Technical Description

The PC12 series angle fixtures are multi-functional assembly accessories designed to optimize rod installation. They can firmly position Ø12mm (Ø12.7mm) rods in various angular directions, including fixed 0°, 90° installation or continuous 360° rotation, enabling flexible and compact rigid structure layouts.

In addition, the angle fixtures can effectively combine the installation of Ø12mm (Ø12.7mm) rods and cage components, compatible with the option of installing Ø6mm support rods onto Ø12mm rods. They are used for vertical installation and also available in versions with continuous 360° adjustment.

Each rod has an independent locking mechanism, and aluminum thumb screws can firmly fix the rods. Combined with rotational angles, it facilitates independent adjustment of each component.
