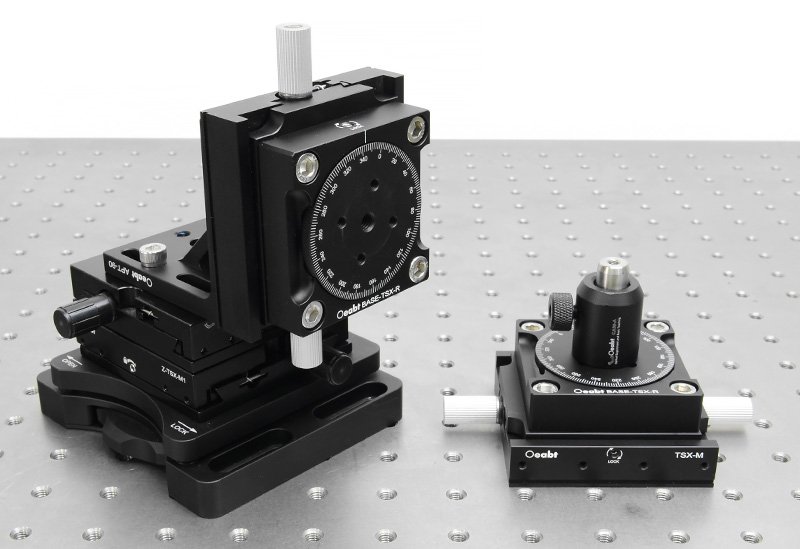

BASE-TSX-R 360° Rotation Mounting Base

Product Description

• Allows continuous 360° rotation
• Laser-engraved scale with 2° increments and alignment lines
• Mounting platform height: 16.1mm
• Clamping mechanism for position locking via a side screw

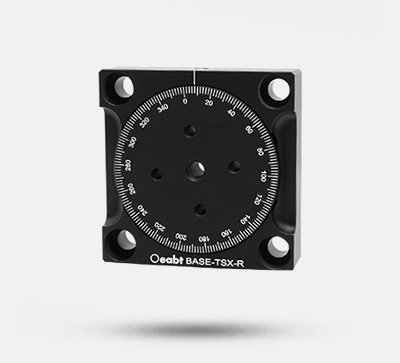

This rotation base features a platform with continuous 360° rotation capability, making it ideal for opto-mechanical components requiring smooth, backlash-free rotation. The platform is engraved with an angular scale at 2° intervals, with numerical markings below the scale lines at every 20° for easy angular positioning of the platform.



Model	BASE-TSX-R
Dimensions	62.2×62.2×16.1mm
Rotation Range	360° continuous rotation, 2° graduation
Load Capacity	110 lbs (50 kg) for horizontal mounting; 9 lbs (4 kg) for vertical mounting
Thread Type	5×M4, 1×central M6, 4×Ø6.7mm countersunk holes
Weight	151.6g
Material	7075 Aluminum Alloy

Technical Notes



The rotation base is equipped with a platform that enables continuous 360° rotation, which is perfectly suitable for opto-mechanical parts demanding smooth and backlash-free rotation. An angular scale with 2° increments is laser-engraved on the platform, and numerical labels are marked under the scale lines at each 20° to facilitate the setting of the platform’s angular direction. The rotation of the platform can be locked by tightening the side clamping screw with a 2.0mm hex wrench.

The rotating platform is designed with 4×M4 threaded holes and 1×central M6 threaded hole, which are used for mounting various opto-mechanical components.
