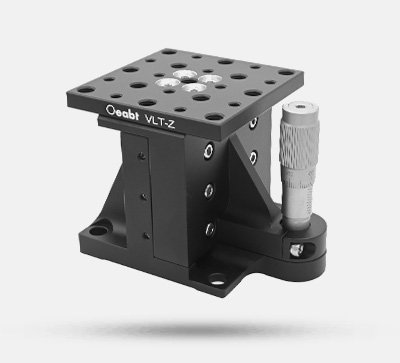

VLT-Z Vertical Translation Stage

Product Description

• Z-axis travel: 11 mm
• Micrometer drive: 0.5 mm per revolution
• Top plate with M4 and M6 threaded hole arrays
• Mountable to optical breadboards or platforms via bottom through holes

The VLT-Z vertical translation stage offers a height adjustment range of 11 mm, with an operating height from 63.0 mm to 74.0 mm.



Model	VLT-Z
Dimensions	83.3 × 61.0 × 63.0 mm
Travel Range	11 mm
Adjustment Accuracy	0.5 mm per revolution, resolution 10 μm
Hole Types	12×M4, 13×M6, 4×Ø6.4 mm (through holes)
Weight	418.4 g
Material	7075 Aluminum Alloy

Technical Notes



The VLT-Z vertical translation stage provides an 11 mm height adjustment range (operating height: 63.0 mm – 74.0 mm). The precision micrometer drive features 10 μm divisions and 0.5 mm vertical travel per revolution, enabling precise positioning for optical system assembly and alignment.

The top mounting plate is equipped with 13 M6 and 12 M4 threaded holes, supporting installation of various standard optical components and accessories for flexible system integration. The stage uses cross-roller bearings to ensure smooth and consistent motion throughout the travel range.



Assembly

Application Examples

Engineering Drawings

VLT-Z Engineering Drawing
