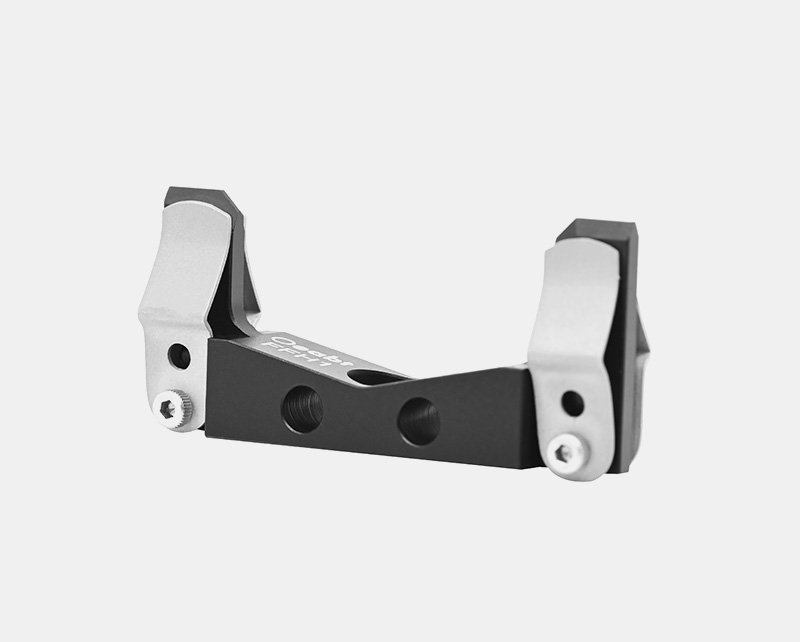

FFH1 Flat Plate Fixture Mount

Product Description

• Can mount two flat plates, holographic plates, or test targets simultaneously.
• Maximum clamping thickness: 1mm (for 1 plate); 0.5mm per plate (for 2 plates).
• Can be directly mounted on Ø12mm rods via a Ø4.8mm counterbore.
• Multiple fixture mounts can be stacked through Ø4.5mm through holes to install multiple flat plates.

The fixture mount is suitable for clamping 1 or 2 rectangular flat plates. It can hold rectangular components with a width greater than 35mm, a maximum thickness of 1mm (for 1 plate), or 0.5mm per plate (for 2 plates).

Technical Description

The fixture mount is suitable for clamping 1 or 2 rectangular flat plates. It can hold rectangular components with a width greater than 35mm, a maximum thickness of 1mm (for 1 plate), or 0.5mm per plate (for 2 plates). It is compatible with various holographic plates, test targets, or rectangular components (lens components are not recommended for clamping to avoid cracking and damage).

There is 1 Ø4.8mm counterbore at the center of the fixture, which can be mounted on Ø12mm rods via M4 cap screws. In addition, the side of the mount is equipped with 2 through holes, which can be used with M4 screws to stack multiple fixture mounts.

Assembly

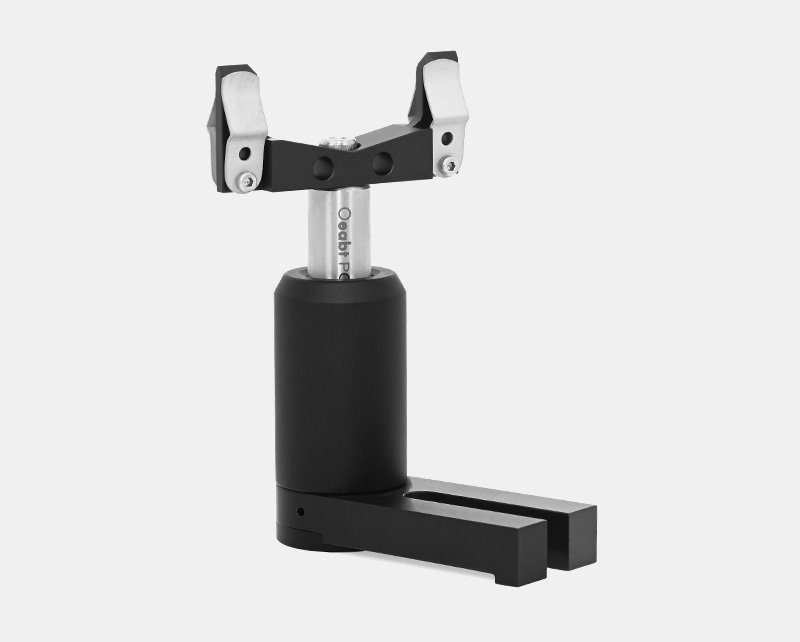

Application Example

Engineering Drawing Download

FFH1 Engineering Drawing
