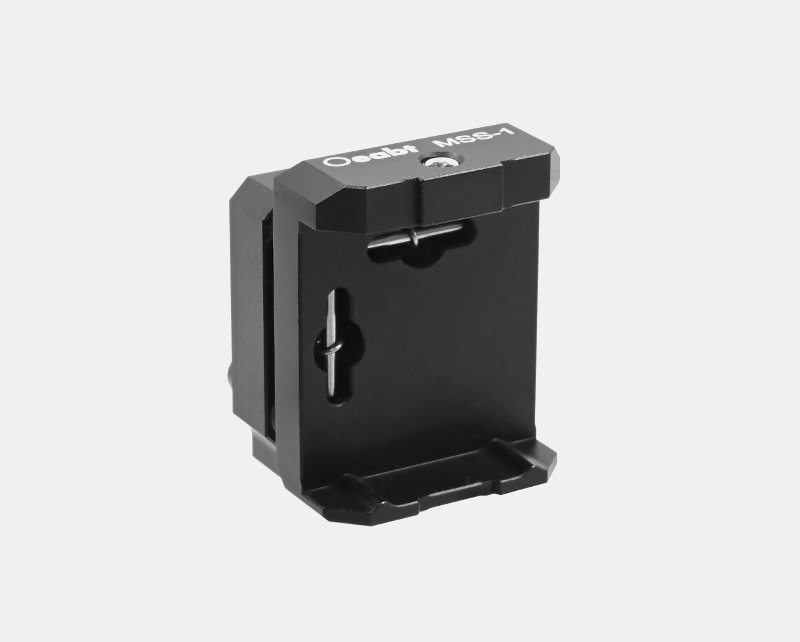

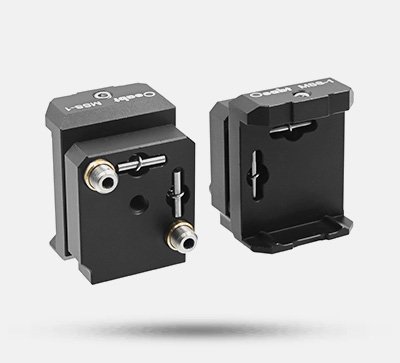

MSS-1 Square Two-Axis Adjustment Mirror Mount

Product Description

Mounts square or rectangular optical components with a height of 1 inch (25.4mm) or 25mm.

Accommodates optical components with a thickness of ≥3.0mm.

Provides ±4° pitch/yaw adjustment.

M4 screw holes at the bottom for connecting Ø12mm optical rods.

The MSS-1 adjustment mount offers a ±4° angular displacement range for the mounted mirror surface, with dual-axis adjustment (pitch and yaw) and an adjustment precision of 21.63mrad/rev.

Technical Description

(1)The MSS-1 adjustment mount provides a ±4° angular displacement range for the mounted mirror surface, with dual-axis adjustment (pitch and yaw) and an adjustment precision of 21.63mrad/rev. The mount body has no adjustment knobs, making it ideal for applications with limited space. It uses a 2.0mm hex wrench to drive the M5*0.25 adjusters.

(2)It can be used to mount square or rectangular optical components with a height of 1 inch (25.4mm)/25mm and a thickness of ≥3.0mm, such as square mirrors, diffraction gratings, and plate beam splitters. Optical components are fixed by nylon set screws on the top.

(3)The adjustment mount is equipped with two M4 screw holes for installing our Ø12mm optical rods, enabling vertical or horizontal installation.

Assembly

Application Example

Engineering Drawing Download

MSS-1-Engineering Drawing
