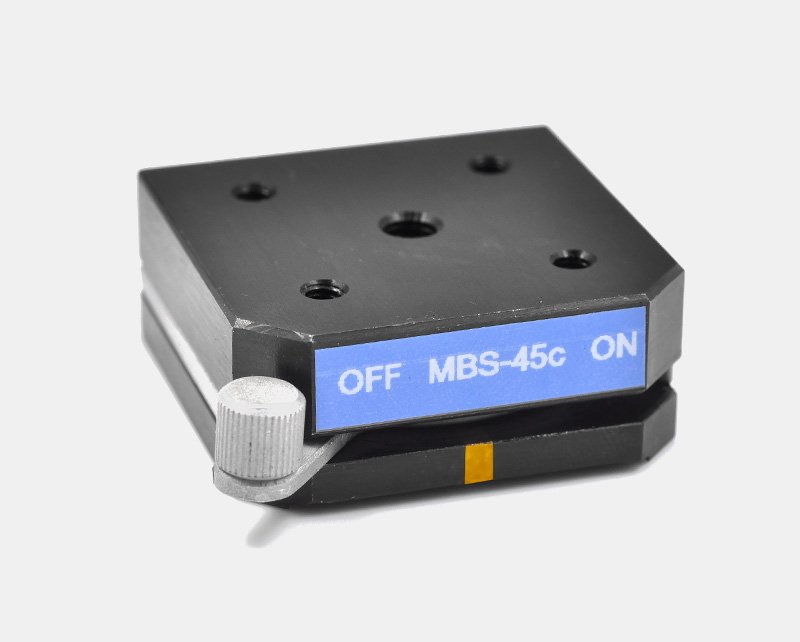

MBS-45C Magnetic Base

Product Description

• The magnetic base with strong adsorption force can be independently fixed on magnetic material panels; it is not restricted by the position of threaded holes and can be installed anywhere on the experimental platform;
• Through the ON/OFF switch of the handle, fixing and disassembly can be easily performed;
• The center of the magnetic base surface is provided with metric threaded holes of Ø6mm/Ø8mm for installing strut adjustment sleeves; four M4 threaded holes can be adapted to mount various optical-mechanical components;
• Adopts a 45mm specification, suitable for compact experimental platforms; made of 08F alloy, with precision-ground surface treated by oxidation and blackening;

Using the magnetic base with an adjustment support allows for quick and easy construction of various optical systems. Magnetic fixation can be performed on the opposite side of the ON·OFF switch handle, making it suitable for independent installation on optical anti-vibration platforms, aluminum alloy honeycomb platforms (upper plates of magnetic materials), etc. It is not limited by the position of threaded holes and can be fixed at any location.

Technical Description

Using the magnetic base with an adjustment support enables rapid and convenient construction of various optical systems. Magnetic fixation can be achieved on the side opposite to the ON·OFF switch handle, which is suitable for independent installation on optical anti-vibration platforms, aluminum alloy honeycomb platforms (upper plates of magnetic materials), etc. It is not constrained by the position of threaded holes and can be fixed anywhere.

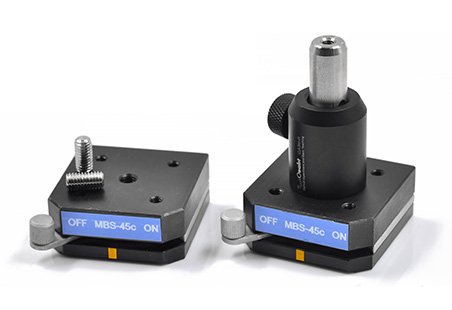

Assembly

Application Examples

Oeabt offers a variety of optical adjustment frames and mounting bases that can install many optical components of conventional sizes. The fixed optical lens frame features an integrated design, which can be integrated into laser systems or other compactly designed systems, and is suitable for applications with extremely high stability requirements. It can easily build an optical experimental platform in the optical path system.

Engineering Drawing

MBS-45C Engineering Drawing
