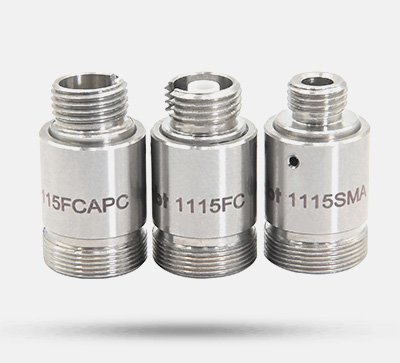

F1115 Series Ø11 mm Fiber Collimator

Product Description

• Ø11 × 15 mm, non-magnetic stainless steel housing
• Pre-aligned fiber collimator for collimating light output from fiber
• Alignment wavelength selectable from 405–850 nm
• For single-mode fiber patch cords; FC/PC, FC/APC, SMA905 connector options
• Simplifies fiber coupling and detection systems

A fiber collimator is a pre-aligned optical device that collimates divergent beams from a fiber into parallel beams, or couples parallel beams into a fiber.

Dimensions	Ø11 × 15 mm (excluding connector)
Mount Thread	M11 × 0.5
Beam Diameter	5 mm (3 mm for 785, 830, 850 nm)
Divergence Angle	0.01°
Focal Length	15 mm
Numerical Aperture (NA)	0.17
Effective Collimation Distance	2 m

Notes:

1. Collimation is optimized for single-mode patch cords; performance degrades with multi-mode fiber. Use the specified wavelength and corresponding patch cord for best results.
2. Multi-mode or large-core fiber cannot be perfectly collimated.

1115FC Series

Model	Alignment Wavelength	AR Coating	Connector
1115FC-405	405 nm	400–700 nm	FC/PC (2.2 mm wide key)
1115FC-450	450 nm	400–700 nm	FC/PC
1115FC-488	488 nm	400–700 nm	FC/PC
1115FC-520	520 nm	400–700 nm	FC/PC
1115FC-635	635 nm	400–700 nm	FC/PC
1115FC-658	658 nm	400–700 nm	FC/PC
1115FC-785	785 nm	700–1100 nm	FC/PC
1115FC-830	830 nm	700–1100 nm	FC/PC
1115FC-850	850 nm	700–1100 nm	FC/PC

1115FCAPC Series



Model	Alignment Wavelength	AR Coating	Connector
1115FCAPC-405	405 nm	400–700 nm	FC/APC (2.0 mm narrow key)
1115FCAPC-450	450 nm	400–700 nm	FC/APC
1115FCAPC-488	488 nm	400–700 nm	FC/APC
1115FCAPC-520	520 nm	400–700 nm	FC/APC
1115FCAPC-635	635 nm	400–700 nm	FC/APC
1115FCAPC-658	658 nm	400–700 nm	FC/APC
1115FCAPC-785	785 nm	700–1100 nm	FC/APC
1115FCAPC-830	830 nm	700–1100 nm	FC/APC
1115FCAPC-850	850 nm	700–1100 nm	FC/APC

1115SMA Series



Model	Alignment Wavelength	AR Coating	Connector
1115SMA-405	405 nm	400–700 nm	SMA905
1115SMA-450	450 nm	400–700 nm	SMA905
1115SMA-488	488 nm	400–700 nm	SMA905
1115SMA-520	520 nm	400–700 nm	SMA905
1115SMA-635	635 nm	400–700 nm	SMA905
1115SMA-658	658 nm	400–700 nm	SMA905
1115SMA-785	785 nm	700–1100 nm	SMA905
1115SMA-830	830 nm	700–1100 nm	SMA905
1115SMA-850	850 nm	700–1100 nm	SMA905

Technical Notes



This pre-aligned collimator converts divergent fiber light to parallel beams (or vice versa). Its compact Ø11 mm size enables easy integration, corrects beam divergence, reduces optical power loss, and improves system performance.

For installation, a collimator adapter with internal M11 × 0.5 thread and external SM1 (1.035”-40) thread is recommended, allowing direct integration into 30 mm cage systems.



It can also be mounted on optical adjustment mounts using POL-series or OAD-series mounting holes.

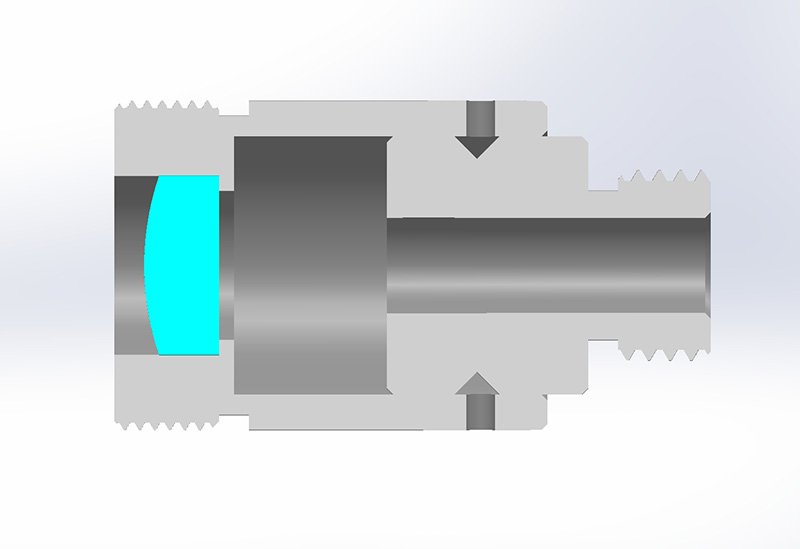

Assembly

Application Examples

Engineering Drawings

1115FC Engineering Drawing

1115FCAPC Engineering Drawing

1115SMA Engineering Drawing
