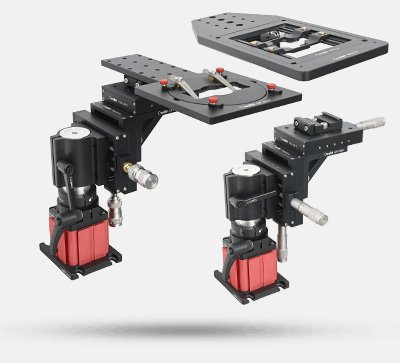

XYZ Axis Stage Preassembled Kit 1

Product Description

• Preassembled XYZ stage with selectable overall height ranges.
• Three-axis independent adjustment; maximum travel: 25 mm (X) × 25 mm (Y) × 25 mm (Z).
• Compatible with TSX-LE-B stage (travel ±12.5 mm, division 0.01 mm) or TSX-LE-C stage (coarse travel ±12.5 mm, fine travel 300 μm, resolution 1 μm).
• Sample holder options:

• SP-SLH: 26.0×76.2 mm standard slide, Ø35 mm Petri dish.
• MSHX + SHXA: slides 25–26.5 mm wide, Petri dishes Ø30–60 mm, plus extra X-axis travel.
  • Sold as a complete kit; platform and breadboard not included.

Stages are delivered preassembled. Users can choose models with different height ranges and precision grades based on experimental needs.

表格

Axis System & Travel	XYZ three axes, max. ±12.5 mm per axis
Stage	TSX-LE-B	25 mm travel, 0.5 mm/rev, division 0.01 mm
	TSX-LE-C	Coarse: 16 mm travel, 0.5 mm/rev, division 0.01 mm; Fine: 300 μm travel, 0.05 mm/rev, resolution 1 μm
Sample Holder	SP-SLH	Slide: 26.0×76.2 mm; Petri dish: Ø35 mm
	MSHX + SHXA	Slide: 25–26.5 mm wide; Petri dish: Ø30–60 mm; extra X travel: 50.2 mm
Load Capacity	2 kg

表格

Configuration	Overall Height Range	Sample Holder Type	Model
TSX-LE-B Coarse(For cells Ø50–100 μm, DOF >10 μm)	227–267 mm	SP-SLH	SP227-XYZ-LEB*
		MSH-X + SHX-A	MSH227-XYZ-LEB*
	277–367 mm	SP-SLH	SP277-XYZ-LEB
		MSH-X + SHX-A	MSH277-XYZ-LEB
	327–467 mm	SP-SLH	SP327-XYZ-LEB
		MSH-X + SHX-A	MSH327-XYZ-LEB
TSX-LE-C Coarse+Fine(For cells Ø10–100 μm, DOF >1 μm)	227–267 mm	SP-SLH	SP227-XYZ-LEC
		MSH-X + SHX-A	MSH227-XYZ-LEC
	277–367 mm	SP-SLH	SP277-XYZ-LEC
		MSH-X + SHX-A	MSH277-XYZ-LEC
	327–467 mm	SP-SLH	SP327-XYZ-LEB
		MSH-X + SHX-A	MSH327-XYZ-LEB

*Note: SP227-XYZ-LEB and MSH227-XYZ-LEB only allow 12.5 mm upward Z travel at minimum overall height.

Technical Description

1. This product is sold as a complete kit including stages, sample holders, 66 mm lift brackets, Ø1.5 inch posts, and right-angle brackets. Optical table or breadboard for installation is not included. Please confirm required total height based on microscope type and working distance before ordering.

1. Multiple overall height ranges are available to suit working distances of different microscopes (upright/inverted) or custom optical paths.

1. For routine cell observation (cells Ø50–100 μm, DOF >10 μm): choose TSX-LE-B for high cost-performance. For fine cell structures requiring high-precision focusing (cells Ø10–100 μm, DOF >1 μm): choose TSX-LE-C.

1. For standard slides only: select SP-SLH sample holder. For various Petri dishes or large-range scanning: select MSH-X + SHX-A sample holder.

Assembly

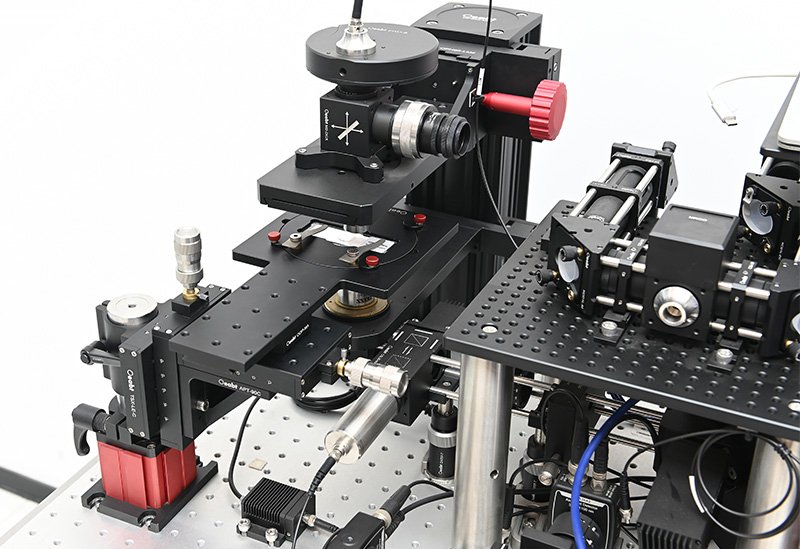

Application Examples

Engineering Drawings

XYZ Engineering Drawing
