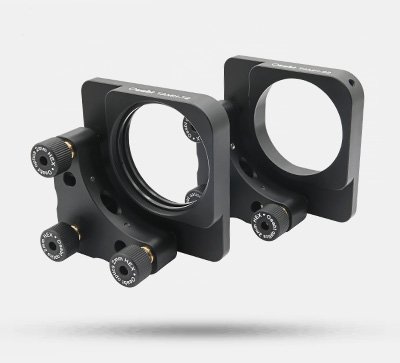

TAMH Series Ø2-Inch Three-Axis Adjustment Mounts

Product Description

Thick backplate and heavy-duty springs for high stability.

Compatible with mounting Ø2-inch (50mm) optical components.

Provides ±4° pitch and yaw adjustment.

TAMH-T2: SM2 (2.035”-40) internal thread, supplied with 2 retaining rings.

TAMH-S2: Ø52.5mm smooth bore, fixed with set screws.

M4 counterbore for rod mounting.

Precision thickened design: Adopts a thick backplate and heavy-duty spring structure, providing a stable reference platform for optical components and effectively suppressing micro-movement.

。



Specifications	80.580.525.5mm (excluding adjusters)
Adjustment Range	±4° (pitch & yaw), 5mm Z-axis translation
Adjustment Accuracy	9.77mrad/turn
Adjuster Thread	M6*0.35 (non-lockable)
Screw Hole Type	1 M4 counterbore
Material	7075 aluminum alloy



Model	TAMH-T2	TAMH-S2
Central Aperture	SM2 (2.035”-40) internal thread	Ø52.5mm smooth bore
Compatible Components	Ø2-inch, thickness ≤10mm	Ø2-inch, thickness ≥3mm
Weight	172.8g	175.6g



TAMH Series Ø2-Inch Three-Axis Adjustment Mounts



Thick backplate and heavy-duty springs for high stability.

Compatible with mounting Ø2-inch (50mm) optical components.

Provides ±4° pitch and yaw adjustment.

TAMH-T2: SM2 (2.035”-40) internal thread, supplied with 2 retaining rings.

TAMH-S2: Ø52.5mm smooth bore, fixed with set screws.

M4 counterbore for rod mounting.

Precision thickened design: Adopts a thick backplate and heavy-duty spring structure, providing a stable reference platform for optical components and effectively suppressing micro-movement.

Technical Description

(1) Offers an adjustment range of ±4° for both pitch and yaw, with an adjustment precision of 9.77mrad per turn. When using three adjusters simultaneously, linear Z-axis translation of 5mm can be achieved. Compared with conventional optical adjustment mounts, this mount features a thicker backplate and tighter springs, enhancing stability. It is an ideal choice for laser optical path construction, as well as the installation of mirrors and filters.

(2) TAMH-T2: Features an SM2 (2.035”-40) internal thread at the center, compatible with SM2 threaded components. Supplied with 2 retaining rings, it can securely mount lenses with a thickness of ≤10mm.

(3) The base is equipped with an M4 counterbore, allowing direct installation on rods for quick and easy integration into existing optical platforms or breadboard systems



Assembly

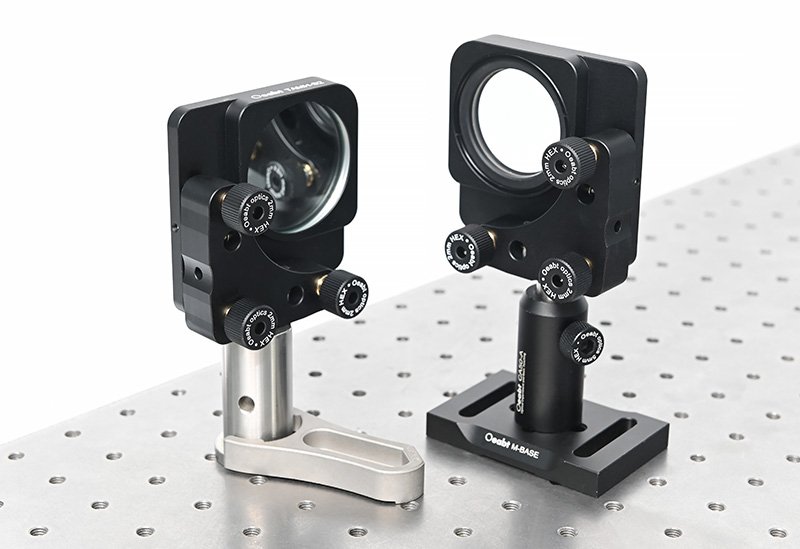

Application Example

Engineering Drawing Download



Engineering Drawing 1

Engineering Drawing 2
