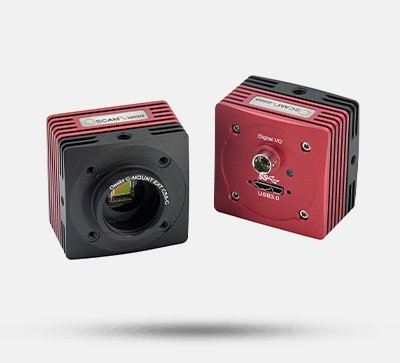

OsCam Vision® Research Camera

Product Description

• No returns or refundsunless due to product quality issues.
• High-resolution CMOS sensors, available in color, monochrome, and NIR-enhanced versions.
• Resolution options from 1.3 MP up to 12 MP.
• Supports external trigger and continuous exposure modes; uses global or high-speed rolling shutter.
• SDK and programming interfaces support C++, C#, Visual Basic, .NET, Python, and LabVIEW (DLL library, not VI library).
• SM1 (1.035″-40) thread with adapter for standard C-Mount (1.000″-32).
• 1/4″-20 (imperial) and M4 (metric) mounting holes for post mounting.
• Applications: Visible/NIR imaging; electrophysiology/biological slice imaging; material inspection; multispectral imaging (with dedicated light source); medical/ophthalmic imaging; vascular imaging; laser speckle imaging; semiconductor inspection and general measurement; fluorescence microscopy; brightfield/darkfield electron microscopy.

The OEABT® OsCam Vision® series scientific cameras feature high-resolution CMOS sensors, delivering superior noise suppression and high-sensitivity image capture for electron microscopy, fluorescence detection, and other applications.Click to download Oscam (V1.0.4 Beta) Setup and OsCam Scientific Camera Software User Manual.

Rolling Shutter – Color



Model	MUS210C-R	MUS640C-R	MUS1200C-R
Effective Pixels	2.1 MP	6.4 MP	12.0 MP
Sensor Format	1/2.8″	1/1.8″	1/1.7″
Pixel Size	2.9 µm	2.4 µm	1.85 µm
Max Resolution	1944 × 1096	3072 × 2048	4072 × 3046
Frame Rate	46 fps	30 fps	14 fps
Min. Exposure Time	15 µs	28 µs	25 µs
SNR	50 dB	50 dB	49 dB
Dynamic Range	75 dB	70 dB	68 dB

Rolling Shutter – Monochrome



Model	MUS210M-R	MUS641M-R	MUS1201M-R
Effective Pixels	2.1 MP	6.4 MP	12.0 MP
Sensor Format	1/2.8″	1/1.8″	1/1.7″
Pixel Size	2.9 µm	2.4 µm	1.85 µm
Max Resolution	1944 × 1096	3072 × 2048	4072 × 3046
Frame Rate	46 fps	30 fps	14 fps
Min. Exposure Time	15 µs	28 µs	25 µs
SNR	50 dB	50 dB	49 dB
Dynamic Range	75 dB	70 dB	68 dB

Global Shutter



Model	MUS231M-G	MUS231C-G	MUS500M-G	MUS500C-G
Color	Monochrome	Color	Monochrome	Color
Effective Pixels	2.3 MP	2.3 MP	5.0 MP	5.0 MP
Sensor Format	1/1.2″	1/1.2″	2/3″	2/3″
Pixel Size	5.86 µm	5.86 µm	3.45 µm	3.45 µm
Max Resolution	1936 × 1216	1936 × 1216	2464 × 2056	2464 × 2056
Frame Rate	40 fps	40 fps	38 fps	38 fps
Min. Exposure Time	24 µs	24 µs	26 µs	26 µs
SNR	45.2 dB	45.2 dB	40 dB	40 dB
Dynamic Range	72 dB	72 dB	70 dB	70 dB

Global Shutter – NIR Enhanced



Model	MUE130M-G-NIR
Sensor	NIR-Enhanced CMOS
Effective Pixels	1.3 MP
Sensor Format	1/1.8″
Pixel Size	5.3 µm
Max Resolution	1280 × 1024
Frame Rate	60 fps
Min. Exposure Time	16 µs
Color	Monochrome

Global Shutter – High-Speed & High-Sensitivity



Model	MUS40M-G
Sensor	High-Speed High-Sensitivity CMOS
Effective Pixels	0.4 MP
Sensor Format	1/2.9″
Pixel Size	6.3 µm
Max Resolution	720 × 540
Frame Rate	328 fps
Color	Monochrome
Shutter Type	Global Exposure
Readout Mode	Progressive

Curves

Technical Notes

The OsCam Vision® series scientific cameras offer color, monochrome, and NIR-enhanced CMOS sensors with resolutions ranging from 1.3 MP to 12 MP. They support external trigger and continuous exposure modes with global or high-speed rolling shutters, producing sharp, detailed images with high color fidelity. A fan-less cooling system eliminates vibration-induced blur. Passive cooling via heat sinks controls temperature rise, suppressing dark current and image noise.

OsCam Vision® software supports Windows 7 through Windows 11, providing comprehensive research functions including image capture & annotation, pixel analysis, calibration, and measurement. Click to download Oscam (V1.0.4 Beta) Setup installer and OsCam Scientific Camera Software User Manual.

The camera uses an SM1 threaded interface (1.035″-40) compatible with Oeabt optomechanical components and can be connected to lenses via a C-mount adapter. The front features four 4-40 threaded holes compatible with 30 mm and 60 mm cage optical systems. Each side of the camera housing has two 1/4″-20 holes and two M4 holes for mounting stainless steel posts. These flexible mounting options make it ideal for custom imaging systems and integration with commercial microscopes.

A high-speed USB 3.1 Gen 1 interface provides stable data transmission at 3.2 Gbps, several times faster than Gigabit Ethernet (1 Gbps). A 3-meter dedicated fixed USB 3.0 cable is included.

Assembly

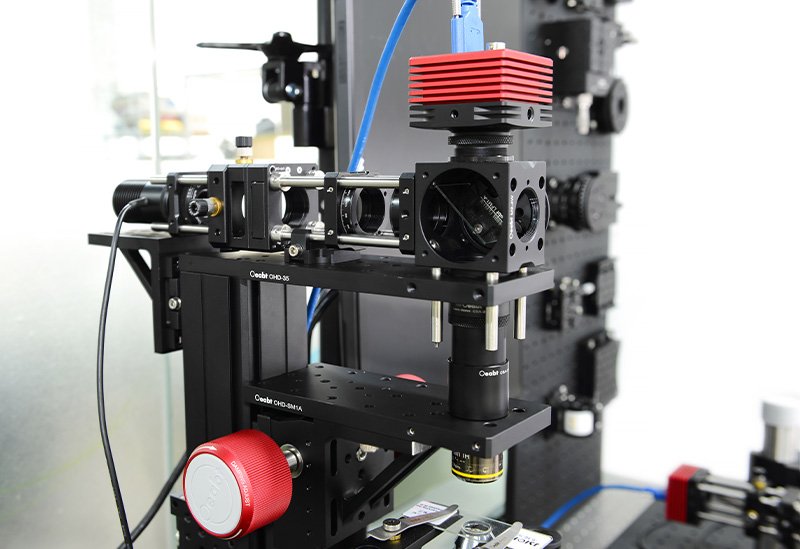

Application Examples

Engineering Drawings
