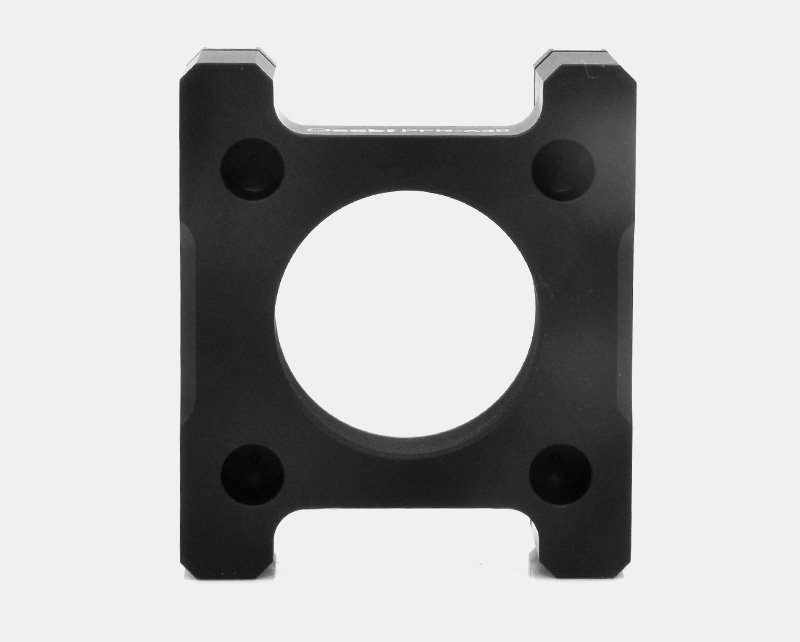

PFR-A30 30 mm Cage Turning Plate

Product Description

• Mounts two 30 mm cage system assemblies at 90°
• SM1 (1.035″-40) internal thread for mounting optical components or lens tubes
• Compatible with 30 mm cage systems
• Flexible clamping design for strong stability and easy repositioning
• Ø6 mm through holes, compatible with PCMS series rods

The cage turning plate allows one cage system to be mounted vertically at 90° to another. Each rightangle turning plate has mounting holes for cage rod installation.



Model	PFRA30
Description	Cage Turning Plate
Dimensions	50.8×44.2×20.6 mm
Center Bore	SM1 (1.035″-40) internal thread
Blind Hole	Ø6 mm, spacing: 30×30 mm
Weight	44.7 g
Material	7075 Aluminum Alloy

Technical Description

(1) The cage turning plate allows one cage system to be mounted vertically at 90° to another. Each rightangle turning plate includes mounting holes for cage rod installation.

(2) The front of the turning plate has four Ø6 mm blind holes (depth 9 mm) for PCMS series cage rods. Each rod is secured in the plate with a side hex set screw. Orthogonal PCMS series cage rods are held in flexible clamps on the side of the turning plate and tightened with cap screws. All cage rods can be secured with a hex wrench or ballhead screwdriver.

(3) The center bore of the turning plate is an SM1 (1.035″-40) threaded hole, for mounting an SM1 lens tube or a Ø1 inch optical component up to 6.1 mm thick (retaining ring sold separately).

Assembly

Application Examples

Engineering Drawings

PFR-A30 Engineering Drawing
