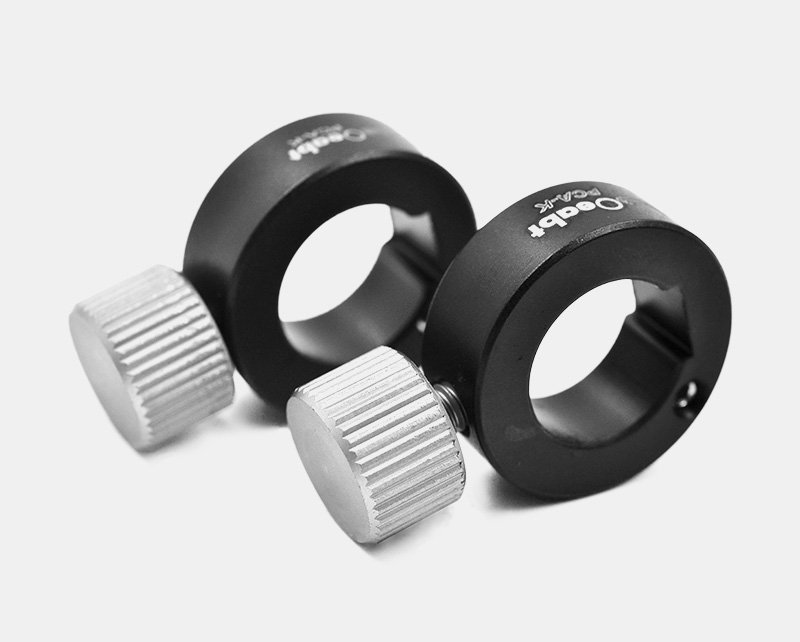

PCA-K Rod Stop Collar

Product Description

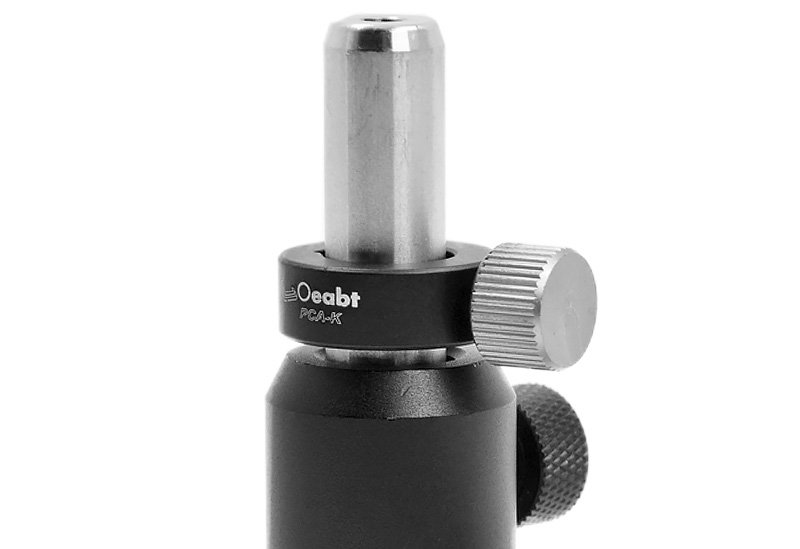

• Used for fixing and limiting Ø12mm diameter support rods.
• Equipped with built-in M3 set screws for auxiliary support, preventing displacement of stainless steel rods.
• Manual locking screws allow fixation at any height, limiting rod height or rotation.
• The fixing screws on the rod collar can adjust the height, while the collar maintains the set height and rotation direction.

The column stop can position and adjust the rod’s position, enabling easy fine-tuning of optical path calibration without moving other optical components. The configured set screws play a role in fixing and limiting the position.

Technical Description

The column stop can position and adjust the rod’s position, enabling easy fine-tuning of optical path calibration without moving other optical components. The configured set screws play a role in fixing and limiting the position.

Assembly

Manual assembly and installation

Installation Method:

Application Example

Oeabt offers a variety of optomechanical accessories, suitable for studs, mounts, lens sleeves, RMS threads, camera mount threads, M25 threads, SM1 threads, microscopes, fiber optic connectors, collimators, aspheric lenses, 35mm bayonets, cage systems, mounting rods, support bases, and structural rails.

Engineering Drawing Download

PCA-K Engineering Drawing
