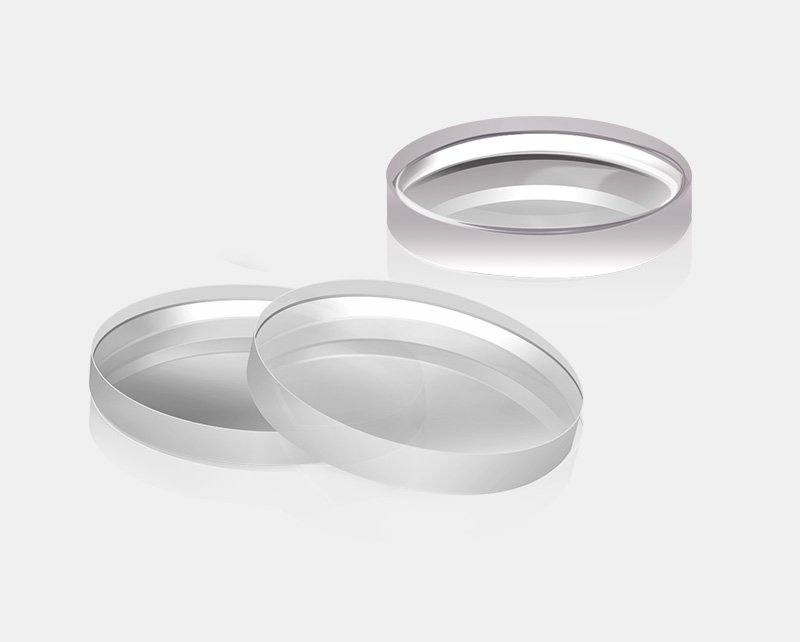

OLB-I1-P Series Biconvex Lens

Product Description

• Both sides are convex;
• The spherical aberration of the biconvex lens is larger than that of the plano-convex lens, and sometimes the focal spot cannot be concentrated at one point;
• Since there is reflection loss on both the front and back sides of the uncoated lens, the transmittance is about 85%;
• The convex lens model is indicated by “P”: Uncoated convex lens – model ending with P; Coated convex lens – model ending with PM;

The spherical lens series includes four types of spherical lenses for selection: plano-convex lens, plano-concave lens, biconvex lens, and biconcave lens;

Both sides are convex. It is a lens that effectively refracts light in a narrow space and can gather a lot of light. It is used when converging collimated light in the shortest possible distance, or when gathering as much light as possible from a point light source.

	Uncoated Type	Coated Type
Material	BK7	BK7
Diameter	Ø1 inch (25.4mm)	Ø1 inch (25.4mm)
Refractive Index	ne=1.519	ne=1.519
Wavelength	200～2000nm	400-700nm
Transmittance	80%-85%	90%
Clear Aperture	90%	80%
Surface Quality	40-60	20-40



Model	Parameters
OLB-I1-26.5P(M)	f26.5; te1.8; tc8.4; fb23.6; ‘＜1
OLB-I1-26.5P(M)	f26.5; te1.8; tc8.4; fb23.6; ‘＜1
OLB-I1-50.8P(M)	f50.8; te1.9; tc5.1; fb49.2; ‘＜1
OLB-I1-50.8P(M)	f50.8; te1.9; tc5.1; fb49.2; ‘＜1
OLB-I1-70.7P(M)	f70.7; te1.9; tc4.1; fb69.3; ‘＜1
OLB-I1-70.7P(M)	f70.7; te1.9; tc4.1; fb69.3; ‘＜1
OLB-I1-100.6P(M)	f100.6; te1.9; tc3.5; fb99.4; ‘＜1
OLB-I1-100.6P(M)	f100.6; te1.9; tc3.5; fb99.4; ‘＜1
OLB-I1-150.5P(M)	f150.5; te2.0; tc3.0; fb149.5; ‘＜1
OLB-I1-150.5P(M)	f150.5; te2.0; tc3.0; fb149.5; ‘＜1
OLB-I1-200.5P(M)	f200.5; te2.0; tc2.8; fb199.6; ‘＜1
OLB-I1-200.5P(M)	f200.5; te2.0; tc2.8; fb199.6; ‘＜1
*Outer Diameter: OD; Focal Length: f; Edge Thickness: te; Center Thickness: tc; Back Focal Length: fb; Eccentricity: ‘; Unit: mm;

Technical Description

– Spherical Lens Series

A lens is an optical element made of a transparent material with a surface that is part of a sphere. Lenses are manufactured according to the law of light refraction. A lens is a refracting mirror whose refracting surfaces are two spherical surfaces (parts of spheres) or one spherical surface (part of a sphere) and one plane transparent body. The images formed by it can be either real or virtual. Single lenses can generally be divided into two main categories: convex lenses and concave lenses.

Convex lens: Thicker in the middle and thinner at the edges, including three types: biconvex, plano-convex, and meniscus (concavo-convex);

Concave lens: Thinner in the middle and thicker at the edges, including three types: biconcave, plano-concave, and meniscus (concavo-convex).

The imaging law of convex lenses states that when an object is placed outside the focal point, an inverted real image is formed on the other side of the convex lens, and the real image can be reduced, equal in size, or magnified. The smaller the object distance, the larger the image distance and the larger the real image. When an object is placed inside the focal point, an upright and magnified virtual image is formed on the same side of the convex lens. The smaller the object distance, the smaller the image distance and the smaller the virtual image. In optics, an image formed by the convergence of actual light rays is called a real image, which can be received by a light screen; on the contrary, it is called a virtual image, which can only be perceived by the human eye. Method to distinguish between real and virtual images: All real images are inverted, while all virtual images are upright. The so-called “upright” and “inverted” are, of course, relative to the original object.

A concave lens is also known as a negative spherical lens. The center of the lens is thin and the periphery is thick, showing a concave shape, so it is also called a concave lens. Concave lenses have a diverging effect on light. After parallel light rays are deflected through a concave spherical lens, the light rays diverge and become divergent rays, which cannot form a real focal point. Along the reverse extension lines of the divergent rays, they intersect at point F on the same side as the incident rays, forming a virtual focal point.

• A plano-convex lens is suitable for situations where one conjugate distance is more than five times the other. The performance of this lens shape is suitable for infinite conjugate ratio (focusing collimated light or collimating point light sources).

• A biconvex lens is suitable for situations where one conjugate distance is 0.2 to 5 times the other. The performance of this lens shape is suitable for situations where the object distance is the same as the image distance.

• A plano-concave lens is suitable for situations where one conjugate distance is more than five times the other. They introduce negative spherical aberration and can be used to balance the spherical aberration introduced by a single lens with a positive focal length.

• A biconcave lens has a negative focal length and is usually used to increase the divergence of converged light.

Each of these lenses is suitable for different applications. Plano-convex and biconvex lenses are positive lenses (i.e., they have positive focal lengths) and focus collimated light to a focal point, while plano-concave and biconcave lenses are negative lenses and can diverge collimated light. The shape of each single lens minimizes aberration for a specific conjugate ratio, which is defined as the ratio of the object distance to the image distance (these are called conjugate distances).

Category	Type	Application
Light Convergence & Imaging	Beam Convergence	Plano-convex Lens
	Beam Collimation	Plano-convex Lens
	Illumination	Biconvex Lens / Plano-convex Lens
	Imaging (Microscope)	Biconvex Lens / Plano-convex Lens
Beam Shaping	Beam Expansion	Plano-convex Lens + Plano-concave Lens
	Line Light	Plano-convex Lens + Cylindrical Lens
	Irregular Beam	Cylindrical Lens

– Basic Principle of Optical Coating

Optical thin film technology is generally used to control the reflectance and transmittance of the substrate to the incident beam. Coating is a method of plating a layer of transparent dielectric film or a layer of metal film on the surface of the material by physical or chemical means. The purpose is to change the reflection and transmission characteristics of the material surface to meet different needs. To eliminate the reflection loss on the surface of optical components and improve imaging quality, coating one or more layers of transparent dielectric films is called anti-reflection film or anti-reflective coating. With the development of laser technology, different requirements for the reflectance and transmittance of the film layer have promoted the development of multi-layer high-reflection films and broadband anti-reflection films. For various application needs, polarizing reflective films, color beam splitting films, cold light films and interference filters are manufactured by using high-reflection films.

After the surface of the optical component is coated, light undergoes multiple reflections and transmissions between the film layers to form multi-beam interference. By controlling the refractive index and thickness of the film layer, different intensity distributions can be obtained, which is the basic principle of interference coating.

(1) Both sides are convex. It is a lens that effectively refracts light in a narrow space and can gather a lot of light. It is used when converging collimated light in the shortest possible distance, or when gathering as much light as possible from a point light source.

(2) The edges of some thin lenses have a yellowish part. Since edging of ultra-thin lenses will affect the service life and performance of the lenses, edging is not performed. This does not hinder the normal use of the lenses and is not a quality issue.

• Non-edged lens: No edging, slightly yellowish edges, which is a normal phenomenon and does not affect use; durable and sturdy.

• Edged lens: The front edges and sharp corners are all ground off, with a good hand feel; durable and sturdy.

Assembly

Application Examples

The spherical lens series includes four types of spherical lenses: plano-convex, plano-concave, biconvex, and biconcave.

Both sides are convex, effectively refracting light in a small space, can gather a lot of light lens. Used when collimated light is concentrated in the shortest possible distance, or when the light emitted by a point source is concentrated as much as possible.
