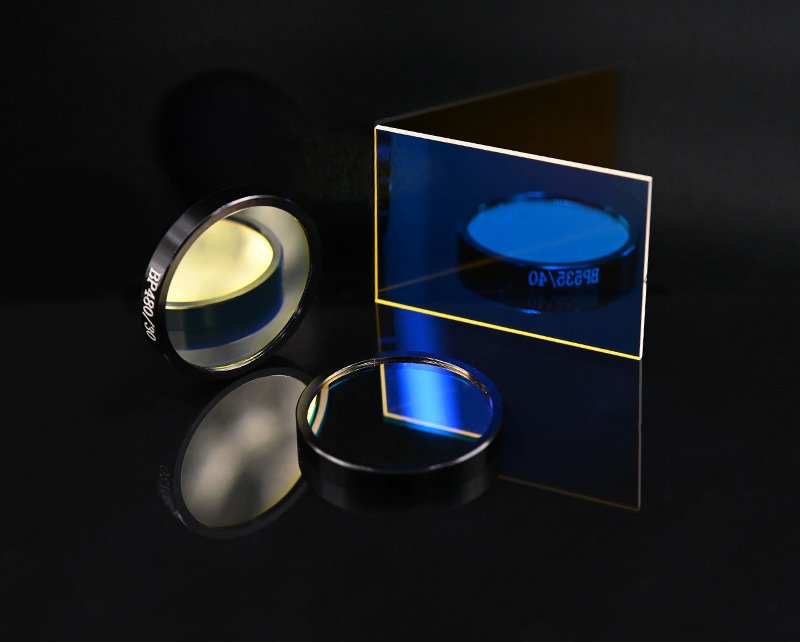

BP Series Fluorescent Filter Set

Product Description

• Excitation, emission, and dichroic filters for fluorescence imaging;
• Provide >90% transmittance in the specified wavelength band;
• The filter set is designed to be suitable for many common fluorophores;

Fluorescent filters refer to various filters used in fluorescence systems, including extracting fluorescent energy or obtaining fluorescence imaging.

Common Parameters	Common Parameters
Material	Corning Eagle
Transmittance	Tave≥90%
Cut-off Depth	ODave≥6, ODabs≥5
Finish	60/40
Surface Quality	60/40
Specification	Filter: Ø25*3.5mm (Tolerance ±0.1mm)
	Dichroic Mirror: 25*36*1.0mm (Tolerance ±0.1mm)



Fluorophore/Fluorescent Group	Excitation Wavelength Band	Emission Wavelength Band	Dichroic Mirror	Dichroic Mirror
			Transmission Band	Reflection Band
DAPI /Alexa Fluor 350™	375±2nm	460±2nm	435-700nm	340-400nm
FITC/EGFP/Alexa Fluor 488™	480±2nm	535±2nm	515-700nm	450-490nm
CY3™/TRITC/TAMRA	530±2nm	605±2nm	575-700nm	450-555nm
ROX/mCherry/Alexa Fluor 594™	560±2nm	635±2nm	615-700nm	450-590nm
CY5™/Alexa Fluor 647™	624±2nm	694±2nm	675-750nm	450-650nm

Curve

Technical Description

(1) A fluorescent filter generally includes a set of three pieces, namely an excitation filter, an emission filter, and a dichroic mirror. Some systems do not have a dichroic mirror, which is determined by the optical path structure. Some systems use lasers for excitation and do not require an excitation filter.

(2) Oeabt provides a variety of pre-installed assemblies for sale.搭配 MDFM-MF2 fluorescence cube inner liner to install the fluorescent filter set (dichroic mirror, excitation filter and emission filter) in a self-built microscope device.
