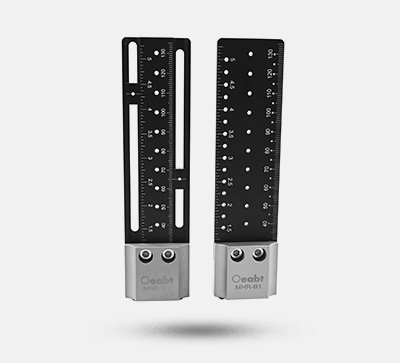

MHR-B Series Magnetic Straightedge

Product Description

• Laser scales: Metric scale length 135mm, graduation 1mm;
• Imperial scale length 5.5 inches, graduation 1/16 inch;
• Equipped with holes spaced 0.25 inches, 5mm and 10mm for easy laser alignment;
• Used to measure beam height on optical platforms;
• Features alignment pins at the bottom and magnets for adsorption, enabling quick placement and removal on optical platforms;
• Available in fixed and slotted straightedge options;

The MHR-B Series Magnetic Straightedge can measure beam heights up to 135mm. Both front and back sides are engraved with 1.0mm metric and 1/16-inch imperial laser scales for precise measurement, providing reference for component positioning.

Technical Description

(1) The MHR-B Series Magnetic Straightedge can measure beam heights up to 135mm. Both front and back sides are engraved with 1.0mm metric and 1/16-inch imperial laser scales for precise measurement, providing reference for component positioning. Its compact size allows easy placement in gaps between components and convenient integration into devices.

(2) In addition, a series of small holes are provided beside the imperial and metric scales as well as on the center line of the straightedge, allowing laser to pass through. The MHR-BX offers greater flexibility with a slotted design for customizable hole spacing. Besides fixed holes, it is equipped with alignment line holes that can align with scale readings, facilitating arbitrary hole position settings to better meet positioning requirements.

(3) The bottom of each straightedge is equipped with a pair of locating pins, which can be easily inserted into the holes of 25mm-spaced optical platforms or breadboards. When used on magnetic surfaces, the two neodymium magnets at the bottom enhance stability.

Assembly

Application Examples

Engineering Drawings

MHR-BX-JT Engineering Drawing
