M-BASE Adjustable Base Plate

Product Description

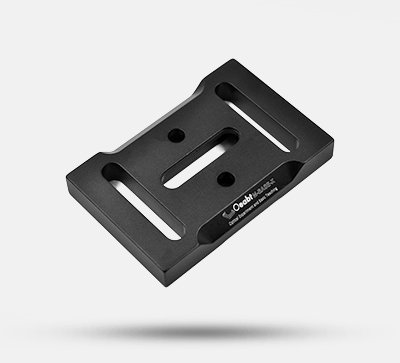

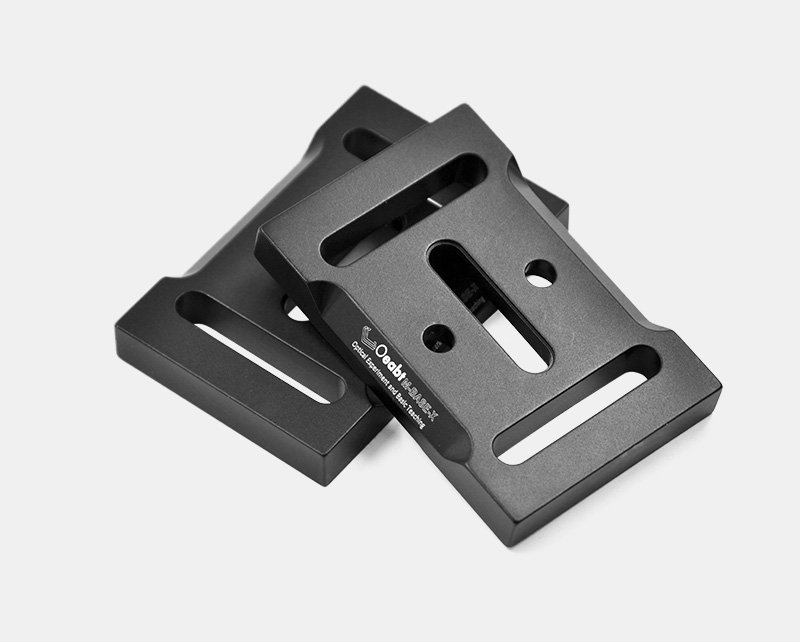

• The base plate is provided with three 30mm through-hole slots for installing and positioning the 12mm-diameter connecting rod base;
• Can be adjusted according to different needs and used with various optical components;
• Processed with a bottom groove to ensure installation stability;

The base is equipped with a 36mm-long countersunk slot distributed along the center of the base, which can accommodate an M6 bolt and be used with our telescopic vertical rods. This groove allows two-dimensional positioning adjustment of any component connected to the base. When repositioning the connecting rod bracket on the base, simply loosen the connecting rod bracket and re-fasten it to the base.

Technical Description

The base features a 36mm-long countersunk slot centered along the base, capable of accommodating an M6 bolt for use with our telescopic vertical rods. This groove enables two-dimensional positioning adjustment of any component attached to the base. To reposition the connecting rod bracket on the base, loosen the bracket and re-secure it to the base.

Assembly

Application Examples

Engineering Drawing Download

M-BASE Engineering Drawing
