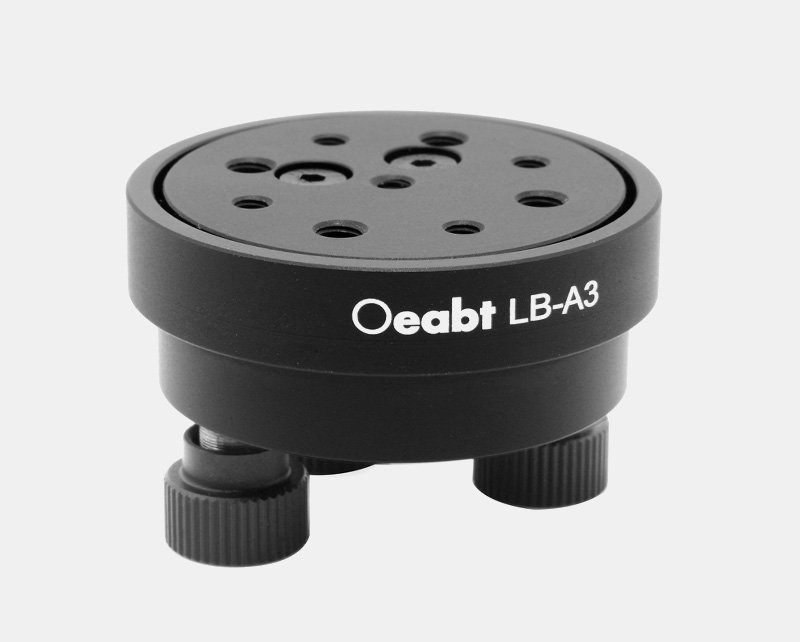

LB-A3 Tilt Adjustment Mount

Product Description

• Offers ±4° pitch adjustment and ±2mm translation along the Z-axis.
• Ideal for prisms, rectangular, or circular optical components when used with pressure arms/optical component mounts.
• Multi-thread array on the tabletop.
• M4 screw hole at the bottom for connecting rods in free-space setups.

The LB-A3 tilt adjustment mount is equipped with three adjusters on the back, providing pitch adjustment with a range of ±4°.

Technical Description

The LB-A3 tilt adjustment mount is equipped with three adjusters on the back, providing pitch adjustment with a range of ±4°.

The tabletop is equipped with 5 M3 screw holes and 4 M6 screw holes, compatible with pressure arms or optical component mounts for clamping and installing rectangular, square, or circular optical components onto the adjustment mount. The PRK3-A30 pressure arm can clamp prisms up to 25.4mm. The LFM1-A rectangular filter mount can install filters with a thickness less than 3mm and a width of 28-40mm, while the LFM1-B can install Ø1-inch optical components up to 6.2mm thick.

The bottom of the platform is equipped with one M4 screw hole, allowing direct installation onto our Ø12mm rods.

Assembly

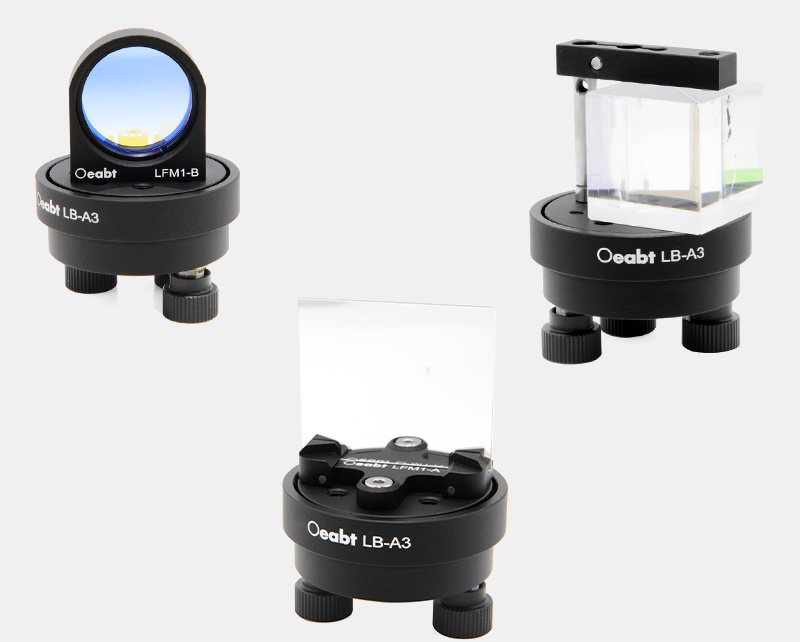

Application Example

Engineering Drawing Download

LB-A3 Engineering Drawing
